Please identify this connector w' PICTURE :)
#1
It's Monday ALREADY???!!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2005
Location: San HO, you know, CA
Posts: 670
Likes: 0
Received 0 Likes
on
0 Posts
Please identify this connector w' PICTURE :)

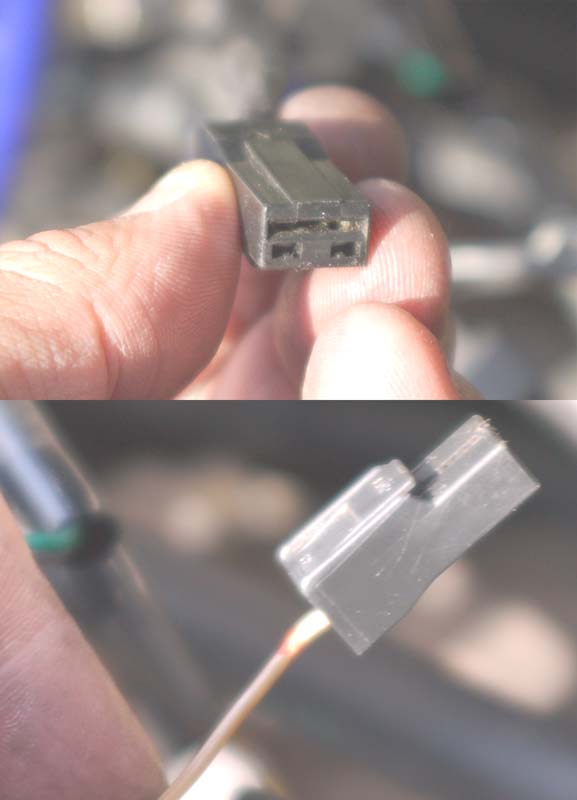

I was wondering if someone could quickly ID this connector. I was working on the rat's nest and it pulled loose. It appeared to have been connected to somewhere near the engine block on the driver side.
![](https://www.rx7club.com/attachments/3rd-generation-specific-1993-2002-16/176520-please-identify-connector-w-picture-connector.jpe)
Edit, the wire is brown/light brown with a white or yellow stripe (It's hard to tell the colors because of the old wiring)
Edit, the wire is brown/light brown with a white or yellow stripe (It's hard to tell the colors because of the old wiring)
#5
It's Monday ALREADY???!!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2005
Location: San HO, you know, CA
Posts: 670
Likes: 0
Received 0 Likes
on
0 Posts
Thanks guys for the responses. I looked near the oil filter area and saw the connector. It was below and left of the oil filter.
#6
Rotary Enthusiast
![](/images/misc/20_year_icon.png)
The oil pressure switch wire should be gray with a red line and coming from the wiring harness that is on the drivers side.
The one for the coolant temp guage is connected to the wiring harness that is under the UIM.
The one for the coolant temp guage is connected to the wiring harness that is under the UIM.
#7
It's Monday ALREADY???!!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2005
Location: San HO, you know, CA
Posts: 670
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by atihun
The oil pressure switch wire should be gray with a red line and coming from the wiring harness that is on the drivers side.
The one for the coolant temp guage is connected to the wiring harness that is under the UIM.
The one for the coolant temp guage is connected to the wiring harness that is under the UIM.
