Need info on this ABS unit

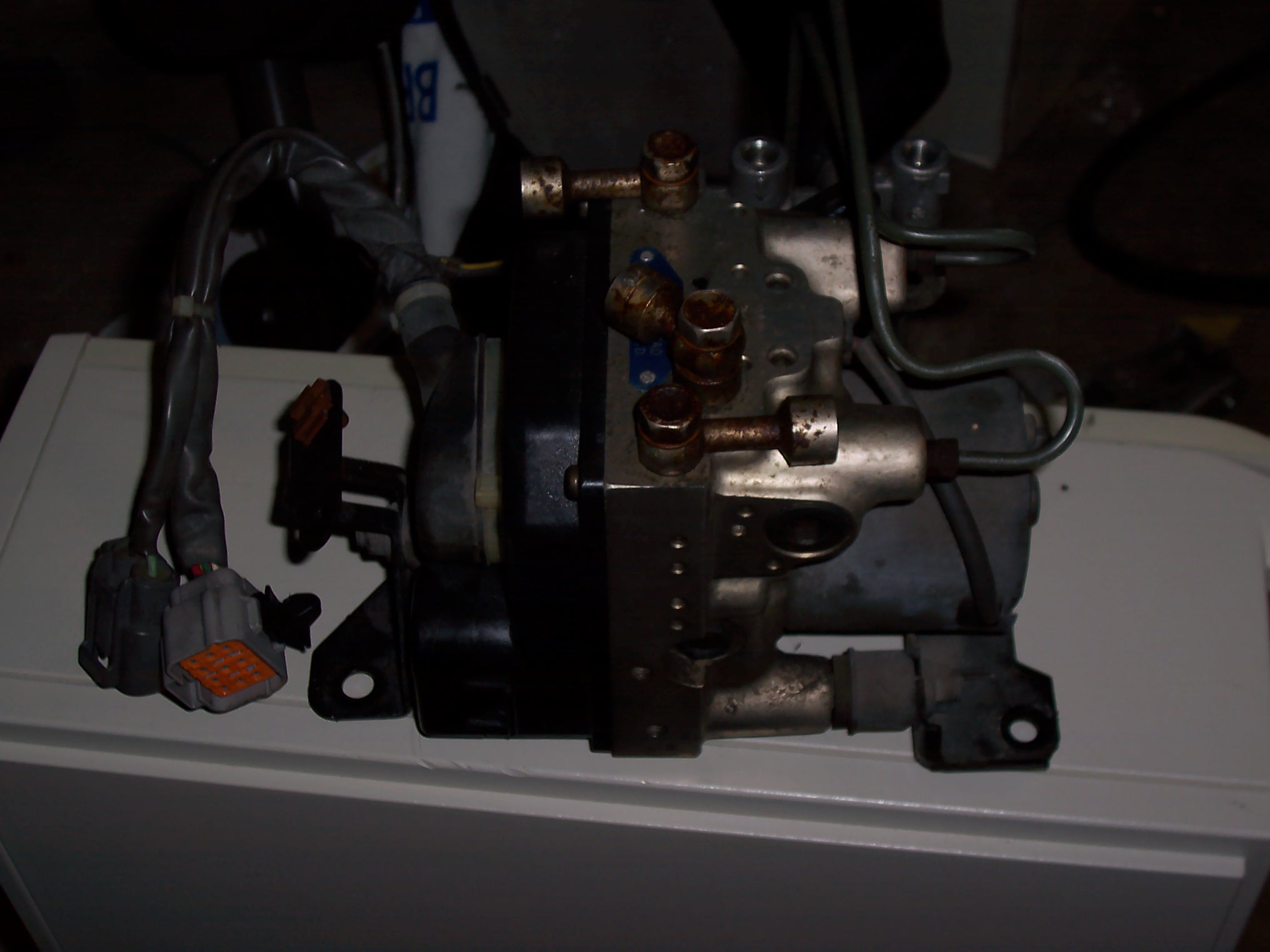

Recently came across this abs unit.
Unfortunately I can't find info on the year or type (hydraulic, 3 solenoids, etc) or additional information on it. I've searched and came across info on the evolution of the abs pumps from 93-95 but nothing that matches this.
Part number listed is FD123 43 7A0.
Anyone recognize this abs?
Unfortunately I can't find info on the year or type (hydraulic, 3 solenoids, etc) or additional information on it. I've searched and came across info on the evolution of the abs pumps from 93-95 but nothing that matches this.
Part number listed is FD123 43 7A0.
Anyone recognize this abs?
#2
Rotary Freak
iTrader: (14)
This is a post '95 model pre '99 based on the F123 designation. Last US cars were F114 w/ a few F123 suspension parts first '99 cars F138;
I would guess F123 is JDM '95 as US '95's used some rear suspension parts from F123 lower arms and rear sway bar for the soft suspension. Prior '94 used the same harder parts for both R2 package na dstandard model. F123 value was also used in '95 ABS system but pump itself was FD31-43-7A0A or B, leads me to belive that your F123 is a LHD mount version of same.
I would guess F123 is JDM '95 as US '95's used some rear suspension parts from F123 lower arms and rear sway bar for the soft suspension. Prior '94 used the same harder parts for both R2 package na dstandard model. F123 value was also used in '95 ABS system but pump itself was FD31-43-7A0A or B, leads me to belive that your F123 is a LHD mount version of same.
#3
Senior Member
Thread Starter
iTrader: (2)
Join Date: Aug 2001
Location: Florida
Posts: 372
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Julian.
I was thinking it was the newer versions and noticed the proportion valve is on the other side.
I'm guessing this unit also utilizes a different abs computer.
I was thinking it was the newer versions and noticed the proportion valve is on the other side.
I'm guessing this unit also utilizes a different abs computer.
#7
Full Member
iTrader: (1)
Join Date: Apr 2002
Location: Detroit
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
More good info here:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/95-abs-pump-93fd-760438/
Trending Topics
#9
Full Member
iTrader: (1)
Join Date: Apr 2002
Location: Detroit
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
I know you don't want to hear it, but you're better off trying to find a good 93/94 pump to use instead of using what you got. At a minimum you're going to have to run new brake lines and replace the controller. If the connector pin-outs are different, I'd be worried about the wiring harness as well.
#10
Rotary Freak
iTrader: (14)
ABS controller changed in 95---this will need to be updated if you plan on using a 95 or later ABS module in a 93 car.
More good info here:
https://www.rx7club.com/showthread.php?t=760438
More good info here:
https://www.rx7club.com/showthread.php?t=760438
And yes i agree why both using the f123, for what its a JDM headache for no performance gain
