How can I tell if I have a Mana or Denso AC system?

Thread Tools

Search this Thread

Old 07-27-04 | 02:25 PM
  #1
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
How can I tell if I have a Mana or Denso AC system?

I need to replace one of my AC hard pipes which has a hole in it...

in the 94 FD parts directory, it lists part numbers for a Mana system and Denso system...

I didn't realize there was a difference until I recieved an incorrect part...

How can I tell which unit type I have?
Old 07-27-04 | 02:32 PM
  #2
mad_7tist's Avatar
Rotary Freak


Joined: Jan 2004
Posts: 1,899
Likes: 0
From: tampa
? maybe they are different for 134 vs r12. call malloy and ask ray how to check. denso usually puts a stamp on the compressor itself
Old 07-27-04 | 02:41 PM
  #3
DaleClark's Avatar
RX-7 Bad Ass
iTrader: (55)

Joined: Jan 2002
Posts: 15,420
Likes: 2,472
From: Pensacola, FL
Man, I used to know that! One is also considered "port installed" and one "Japan installed". I think the color of the receiver/dryer (the small AC can with the window in the nose of the car) is one way to tell. If it's silver, it's one system, if it's black, it's the other.

Yeah, I'd just call Malloy and see if they can tell you what to look for, then you can get the part from them.

Dale
Old 07-27-04 | 06:36 PM
  #4
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
Yea the guys at mazdacomp weren't sure...and my mechanic couldnt remember either but said the same thing about the condensor color...

dammit....
Old 07-27-04 | 06:56 PM
  #5
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
eh crap I should have done a search...

https://www.rx7club.com/forum/showth...ght=mana+denso
Old 07-27-04 | 09:50 PM
  #6
Rx7aholic's Avatar
Rotary Freak
iTrader: (22)

Joined: Feb 2001
Posts: 1,922
Likes: 2
From: Morris Plains, NJ USA
There is 2 different type of a.c system for the fds, black dryer = port installed, silver dryer = factory installed. Also be aware that the port installed lines ic ompletely different from the factory installed. I found out the expensive way. Also which lines is leaking for u? I got 1 line that run acroos the engine bay I think the expansion valve is on it. Also I have an extra a.c condensor for factory installed and black dryer available. khris
Old 07-27-04 | 11:06 PM
  #7
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
???

so mine is a port install? that means its a Mana???? The dryer is the can looking thing on the drivers side front correct?

My mechanic said that all tourings were denso that is the denso one....

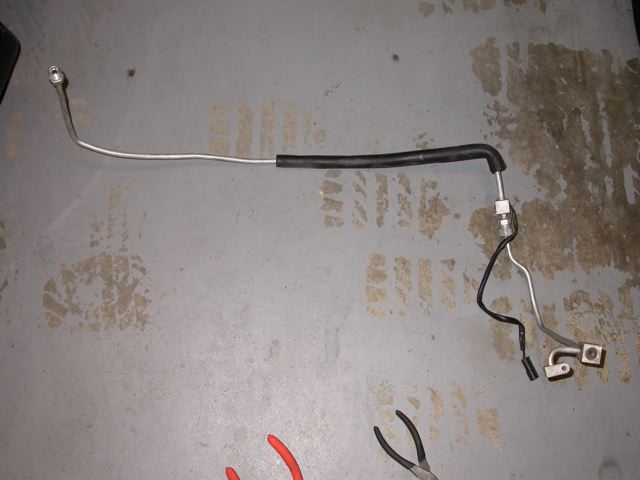

here is the pipe as looking at it as if u were standing in front of the car...

and I guess this is the dryer?
Attached Thumbnails How can I tell if I have a Mana or Denso AC system?-dscn0428.jpg   How can I tell if I have a Mana or Denso AC system?-dscn0429.jpg
Old 07-28-04 | 12:25 AM
  #8
turbojeff's Avatar
Do it right, do it once
iTrader: (30)

Joined: Apr 2001
Posts: 4,830
Likes: 12
From: Eugene, OR, usa
Originally Posted by dcfc3s
Man, I used to know that! One is also considered "port installed" and one "Japan installed". I think the color of the receiver/dryer (the small AC can with the window in the nose of the car) is one way to tell. If it's silver, it's one system, if it's black, it's the other.

Yeah, I'd just call Malloy and see if they can tell you what to look for, then you can get the part from them.

Dale
What he said.

Aluminum dryer up by the IC is one, and the steel painted black is the other. I think the black one is the MANA. For 93s Base and R1s have MANA.
Old 07-28-04 | 12:43 AM
  #9
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
well dammit....mine was a touring.......

so far its still confusing...

black=factory install

silver=port install

then is it black = denso? or mana?

Old 07-28-04 | 01:15 AM
  #10
turbojeff's Avatar
Do it right, do it once
iTrader: (30)

Joined: Apr 2001
Posts: 4,830
Likes: 12
From: Eugene, OR, usa
Originally Posted by 7racer
well dammit....mine was a touring.......

so far its still confusing...

black=factory install

silver=port install

then is it black = denso? or mana?

No.

Black = port install

Silver = factory install

Since MANA stands for Mazda xxx North America I'd guess that you have a MANA system if your dryer is black.

Is your car a 93? How do you know it was a Touring if it isn't a 93?
Old 07-28-04 | 01:53 AM
  #11
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
hmmm

mine was a 94 PEP in montego blue...second owner...says it on the title. Glass sunroof, one oil cooler, bose in the back, leather seats...

My mechanic works for the mazda dealer here and called in my VIN. He said it was a denso.

He also said that most "tourings" were Denso.....

eh I'll try to call Ray Crowe in the morning.
Old 07-28-04 | 02:04 AM
  #12
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
oh and another thing

the incorrect pipe that I ordered was part FD15-61-466 Pipe no. 3, cooler (in the parts catalog, both the MANA and Denso have the same part numbers...)

on the ID tag it says Mazda north american ops....so does that mean MANA?

again, this pipe doesnt fit my AC system

if so then

black dryer = Denso
Old 07-28-04 | 07:33 AM
  #13
turbojeff's Avatar
Do it right, do it once
iTrader: (30)

Joined: Apr 2001
Posts: 4,830
Likes: 12
From: Eugene, OR, usa
Originally Posted by 7racer
hmmm

mine was a 94 PEP in montego blue...second owner...says it on the title. Glass sunroof, one oil cooler, bose in the back, leather seats...

My mechanic works for the mazda dealer here and called in my VIN. He said it was a denso.

He also said that most "tourings" were Denso.....

eh I'll try to call Ray Crowe in the morning.
PEP should have MANA, your car is a Touring with those options...
Old 07-28-04 | 07:43 AM
  #14
MichaelFregoe's Avatar
Senior Member
iTrader: (1)

Joined: Mar 2004
Posts: 446
Likes: 0
From: VERY upstate NY
Silver is on the touring. The A/C lines look the same except the threads are metric on one and the other has stardard english threading. I have it written down someplace after I messed with it seemingly forever.
Old 07-28-04 | 09:20 AM
  #15
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
Michael, my bottle is black and a touring....its not silver.

I spoke to Ray Crowe and he said ALL tourings are Denso.

However, my friend just emailed me and stated that even the Mazda dealer here in Dallas confused his parts after running a VIN check....he told me it's a Mana

crap...this sucks....
Old 07-28-04 | 12:23 PM
  #16
tookwik's Avatar
VIP - Very Irish Person

Joined: Jan 2002
Posts: 1,458
Likes: 0
From: NC State
Yeah, I have a denso system on my '93 touring with my dryer being silver... not black. I'm absolutely positive that silver=denso and black=mana.
Old 07-28-04 | 02:52 PM
  #17
IRPerformance's Avatar
Sponsor
iTrader: (41)

Joined: Apr 2003
Posts: 11,347
Likes: 317
From: NJ
Yea, touring are all japanese air. The r1s and base models had ac installed at the ports when they came from overseas. Unfortunately the japanese air parts are alot more expensive.
Old 07-28-04 | 06:21 PM
  #18
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
then something is amiss here as mine is a touring with a BLACK dryer....
Old 08-07-04 | 11:18 AM
  #19
7racer's Avatar
Thread Starter
Eats, Sleeps, Dreams Rotary

Joined: Apr 2001
Posts: 3,736
Likes: 9
From: Dallas, Texas
OK my car is a MANA...

black dryer = mana

touring??? = mana?

regardless I ordered the part from mazdacomp and took a chance.

The mana part they had over 30 in stock, the equivelant Denso needed to be drop shipped in.

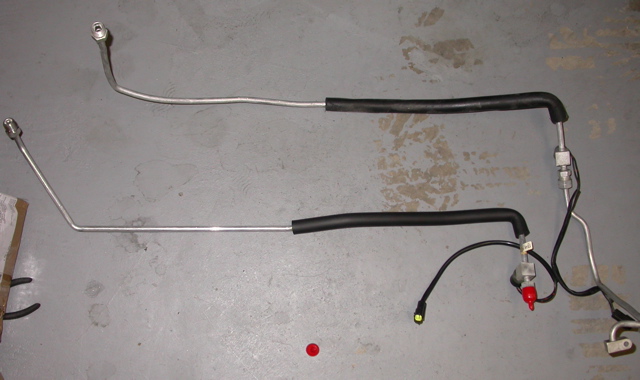

Price for MANA part via mazdacomp:
FD16-61-46x Pipe No. $ cooler $67.60
Attached Thumbnails How can I tell if I have a Mana or Denso AC system?-mana.jpg
