HELP....3rd Gen Vaccum Lines and connectors
Could someone please give some hints as to where the one connector in the pic and the pics of the vaccum lines go. I am close to being able to put this motor back in and I did not do a good enough job of labeling as I pulled it out. Any help would be greatly appreciated.
#3
It Just Feels Right
![](https://www.rx7club.com/images/misc/05_year_icon.png)

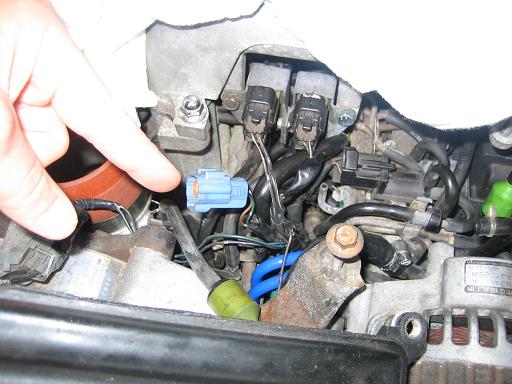

The Blue connector is not used except on California cars. The hose in the last pic goes to the Oil Filler neck. The third pic is a vac tube that is not used.
Last edited by mibad; 06-26-06 at 05:52 PM.
#6
I love twins!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (2)
Join Date: Dec 2005
Location: Colorado
Posts: 683
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by No Cones

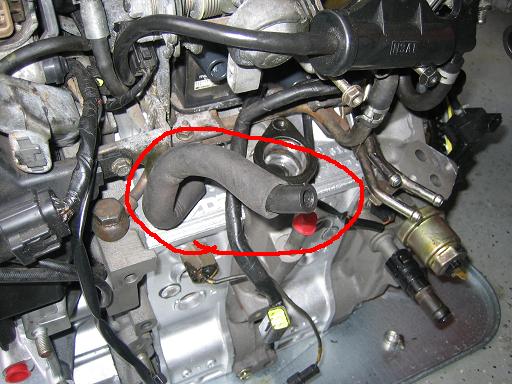

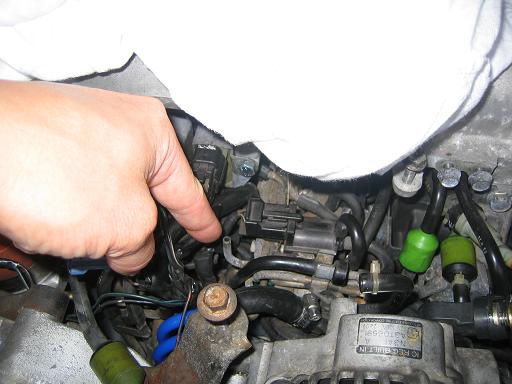

3rd picture...only used for automatics... 4th picture (I believe) oil filler neck - part of pcv system (ultimately leads to turbo inlet).
#7
Full Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Feb 2002
Location: Sterling, MA
Posts: 133
Likes: 0
Received 0 Likes
on
0 Posts
Oil filler neck has 2 nipples, 1 for the PCV from under the UIM. The second goes to a rubber line that connects to the hard mettle line that then runs over the motor which connects to another vaccume line that connects to one of the 2 nipples on the front turbo inlet pipe.
AT pipe is not capped...unless someone had capped it (no point of doing this however).
AT pipe is not capped...unless someone had capped it (no point of doing this however).
Trending Topics
#8
I love twins!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (2)
Join Date: Dec 2005
Location: Colorado
Posts: 683
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dgeesaman

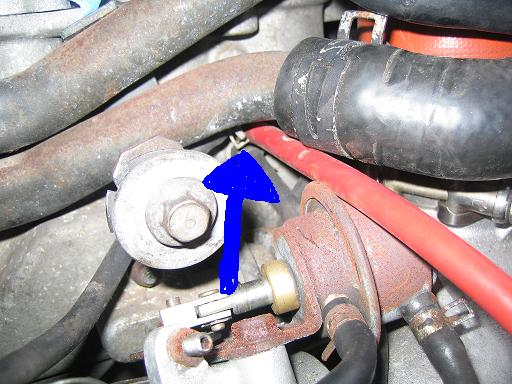

Pic 1: the red hose goes to the charge relief valve. The black hose (bottom) goes to the front of the charge control actuator, which is the rusty thing in the foreground of the pic.
Dave
Dave
Do you possibly have a pic of the charge control actuator? I am guessing it one of the two smaller turbo actuators on the upper part of the turbo assembly, but I am not sure
