Found Good Price fo FEED Torque Braces
06-12-03 | 10:26 AM
#1
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 1,635
Likes: 0
From: Boston, MA
Found Good Price fo FEED Torque Braces
http://cgi.ebay.com/ebaymotors/ws/eB...tem=2419077046
$100!!!!
I bought 2.
7 left!!!
Just sharing the info.
$100!!!!
I bought 2.
7 left!!!
Just sharing the info.
Last edited by vudoodoodoo; 06-12-03 at 10:54 AM.
06-12-03 | 10:53 AM
#4
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 1,635
Likes: 0
From: Boston, MA
06-12-03 | 11:00 AM
#6
Senior Member
Joined: May 2002
Posts: 539
Likes: 0
From: St. Louis, MO
"Imported from Japan, these units require slight modification to fit U.S. spec vehicles equipped with ABS. I provide modification/installation instructions with each order."
Sounds like fun.
Have Garfinkle make you one. Using only two mounting bolts (the two stock holes there) has been known to crack the fender wall. His is a solid brace, 6 mounting points, and a solid brace that really works. Like $85 or so.
J
Sounds like fun.
Have Garfinkle make you one. Using only two mounting bolts (the two stock holes there) has been known to crack the fender wall. His is a solid brace, 6 mounting points, and a solid brace that really works. Like $85 or so.
J
Last edited by Jason93RX7R1; 06-12-03 at 11:03 AM.
06-12-03 | 11:03 AM
#7
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 1,635
Likes: 0
From: Boston, MA
Originally posted by Jason93RX7R1
"Imported from Japan, these units require slight modification to fit U.S. spec vehicles equipped with ABS. I provide modification/installation instructions with each order."
Sounds like fun.
Have Garfinkle make you one. Using only two mounting bolts (the two stock holes there) has been known to crack the fender wall.
J
"Imported from Japan, these units require slight modification to fit U.S. spec vehicles equipped with ABS. I provide modification/installation instructions with each order."
Sounds like fun.
Have Garfinkle make you one. Using only two mounting bolts (the two stock holes there) has been known to crack the fender wall.
J
Garfinkle's brace is nice, but I like this one because it's a damper.
Trending Topics
06-12-03 | 12:12 PM
#8

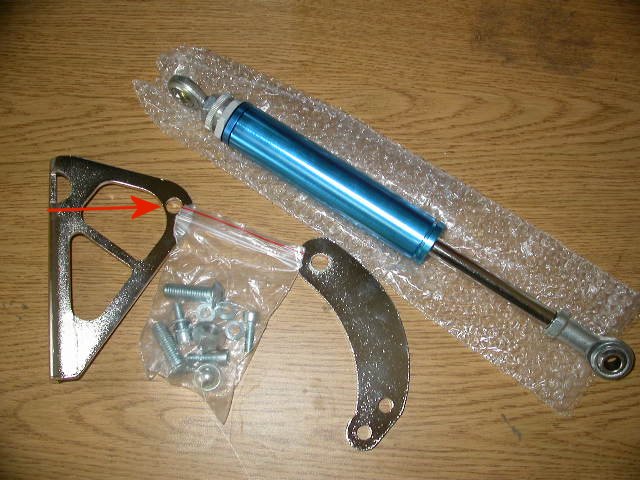

Poor design for the fender bracket. The rod mounting hole is weak. Note how little material is around the hole [arrow.] An observation FWIW
Might be worth it to buy the "kit" just to get the piston and fab a proper bracket of your own.
Regards,
Crispy
Might be worth it to buy the "kit" just to get the piston and fab a proper bracket of your own.
Regards,
Crispy
Last edited by CrispyRX7; 06-12-03 at 12:16 PM.
06-12-03 | 01:15 PM
#9
no more problems, PLEASE!
Joined: Jan 2003
Posts: 464
Likes: 0
From: Bay Area, CA
Originally posted by CrispyRX7
Poor design for the fender bracket. The rod mounting hole is weak. Note how little material is around the hole [arrow.] An observation FWIW
Might be worth it to buy the "kit" just to get the piston and fab a proper bracket of your own.
Regards,
Crispy
Poor design for the fender bracket. The rod mounting hole is weak. Note how little material is around the hole [arrow.] An observation FWIW
Might be worth it to buy the "kit" just to get the piston and fab a proper bracket of your own.
Regards,
Crispy
i don't want to flame on anyone but the material looks a little cheap and not thick enough to support the force that's going to be pushing on it. even though a damper is being used, that fender bracket will eventually wear down, bend and/or break if it's as weak as it looks
06-12-03 | 02:07 PM
#12
Rotary Enthusiast
Joined: Aug 2001
Posts: 1,236
Likes: 1
From: Waiting for Indykid to catch up
Garfinkle's torque brace is 10x better than any other. Absolutly no vibrations with rubber bushings at booth ends, and VERY sturdy. It's also less than half the price of most. I'm not really sure why someone would buy a flimsy expensive brace.
06-12-03 | 02:54 PM
#14
in slow, out fast!
Joined: Apr 2002
Posts: 1,388
Likes: 0
From: Florida
i have a real feed brace and this thing looks almost exactly the same. also my brace fit perfect with no mods. i have a 93 touring. i believe the cars that need to be modded are the 95's because they use a different abs unit.
06-12-03 | 02:57 PM
#16
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 1,635
Likes: 0
From: Boston, MA
Originally posted by apexkw
i have a real feed brace and this thing looks almost exactly the same. also my brace fit perfect with no mods. i have a 93 touring. i believe the cars that need to be modded are the 95's because they use a different abs unit.
i have a real feed brace and this thing looks almost exactly the same. also my brace fit perfect with no mods. i have a 93 touring. i believe the cars that need to be modded are the 95's because they use a different abs unit.
Mine should be here on Saturday, so I'll let you guys know.
06-12-03 | 03:22 PM
#17
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 1,635
Likes: 0
From: Boston, MA
From his emai:
"These things are EXACTLY identical. I think we went directly to FEED's source. Except these are red and blue, not green. These are mucho cheaper in price. SAME build and design as the FEED.
Mine is a 93. If you don't drill new holes, the strut hits an ABS bolt/line. There's other ways to make it fit, like add washers to the bracket that bolts to the engine. But, this way, the bar is perpendicular to the engine and car frame."
"These things are EXACTLY identical. I think we went directly to FEED's source. Except these are red and blue, not green. These are mucho cheaper in price. SAME build and design as the FEED.
Mine is a 93. If you don't drill new holes, the strut hits an ABS bolt/line. There's other ways to make it fit, like add washers to the bracket that bolts to the engine. But, this way, the bar is perpendicular to the engine and car frame."
06-12-03 | 04:03 PM
#18
Chimera Driver
Joined: Jul 2001
Posts: 1,334
Likes: 0
From: Birmingham, AL
FEED's braces are made by the same company that makes HPI's and these, presumably. If you use ABS, regardless of model yeah, you will need to change the position of the mount on the motor side. The cheapest and easiest way is with a few washers and bolts from Home Depot as was already suggested. This will make the brace sit latitudinally across the engine compartment. The stock bracket actually has it at a bit of an angle.
Keep in mind, you are not getting an actual dampened brace, it is rigid.
Keep in mind, you are not getting an actual dampened brace, it is rigid.
06-12-03 | 06:14 PM
#19
Thread Starter
Rotary Freak
Joined: Aug 2001
Posts: 1,635
Likes: 0
From: Boston, MA
Yeah, it's not a damper. I keep thinking that because it looks like a damper. DOH!
There are bushings inside the tube or something to sorta absorb a bit of shock. It's still stiff though.
Still a very good deal on this piece. The one from Feed is $200.
There are bushings inside the tube or something to sorta absorb a bit of shock. It's still stiff though.
Still a very good deal on this piece. The one from Feed is $200.
06-12-03 | 06:14 PM
#20
I took one apart and it has three bushings inside. One appears to be delrin, and it is sandwiched between two rubber or urethane bushings. It doesn't really have much give to it. I think the bushings are there to dampen the vibrations transmited to the body.
Last edited by IRPerformance; 06-12-03 at 06:20 PM.
06-21-03 | 11:49 AM
#23
Accepting Donations.
Joined: Mar 2001
Posts: 323
Likes: 0
From: San Francisco, Ca.
are the brackets that come with the feed and hpi braces exactly the same as well? im starting to think that these braces are starting to become more of a cosmetic upgrade than anything else.
06-21-03 | 11:54 AM
#24
Joined: Mar 2001
Posts: 30,580
Likes: 567
From: FL-->NJ/NYC again!
Originally posted by Rotary Experiment Seven
I took one apart and it has three bushings inside. One appears to be delrin, and it is sandwiched between two rubber or urethane bushings. It doesn't really have much give to it. I think the bushings are there to dampen the vibrations transmited to the body.
I took one apart and it has three bushings inside. One appears to be delrin, and it is sandwiched between two rubber or urethane bushings. It doesn't really have much give to it. I think the bushings are there to dampen the vibrations transmited to the body.
