Finally finished my Underhood project! ***pics***

Just thought I'd share a couple of pics of my finalized underhood project. I had all of my parts polished, a clear cover made for the M2 intake, and since I didn't like the unfinished look of all those parts without the shrouding in front to cover the relays, fans, etc., I had this custom shroud made from aluminum and painted glossy black to finish it all off.

Let me know what you think!

If someone can resize the images, it would be great.

Thanks!

-Ian

Attached Thumbnails

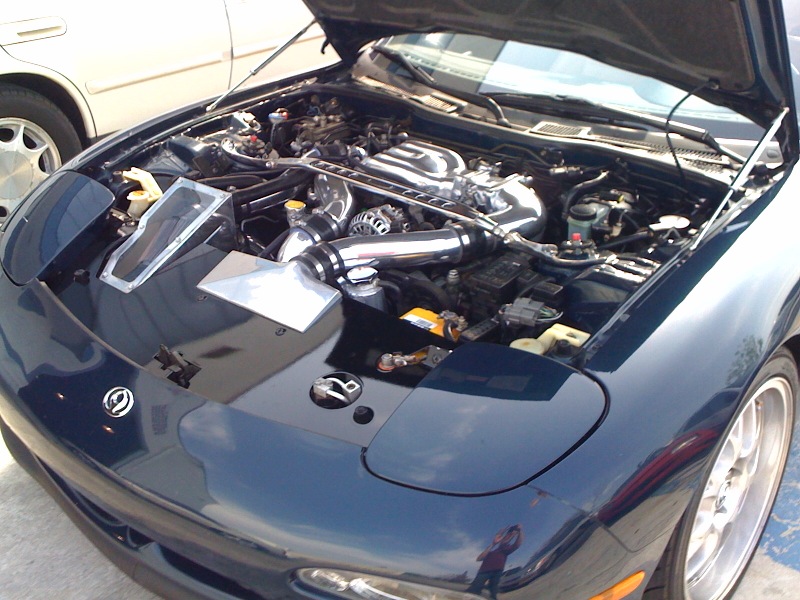

Finally finished my Underhood project! ***pics***-photo1.jpg

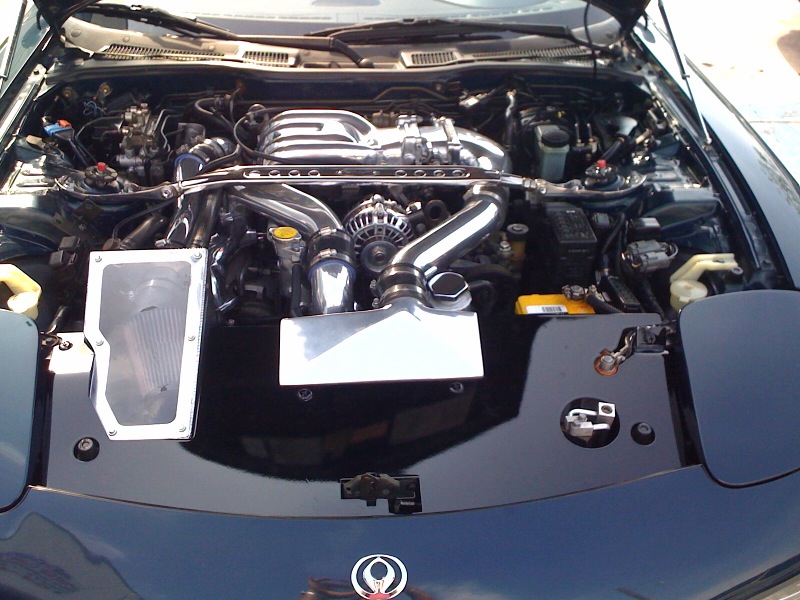

Finally finished my Underhood project! ***pics***-photo2.jpg

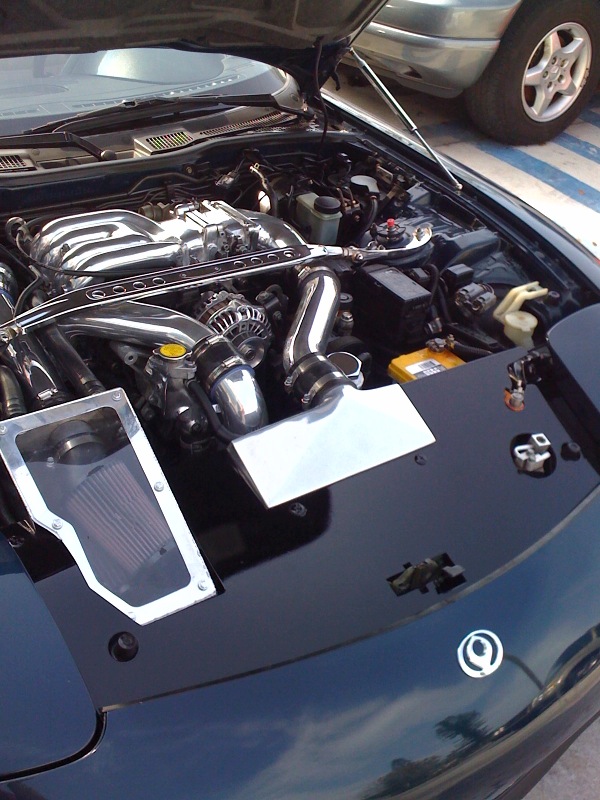

Finally finished my Underhood project! ***pics***-photo3.jpg

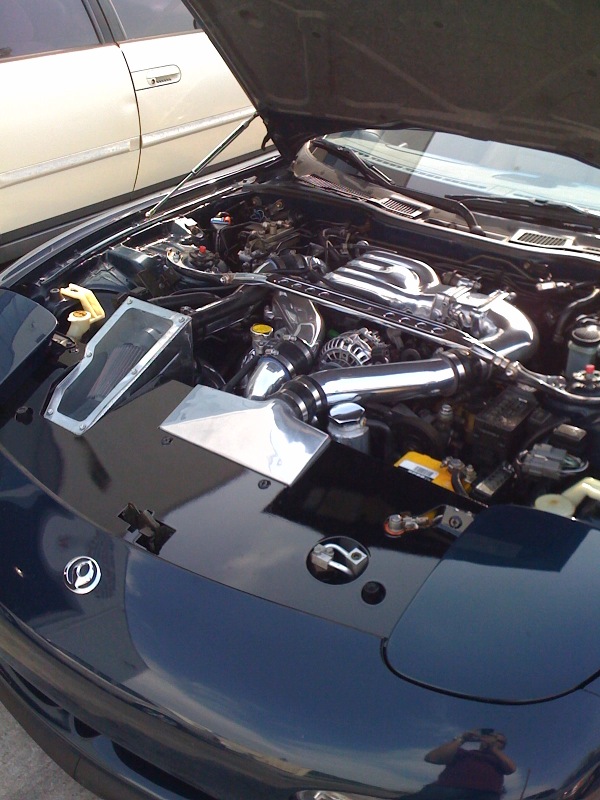

Finally finished my Underhood project! ***pics***-photo4.jpg

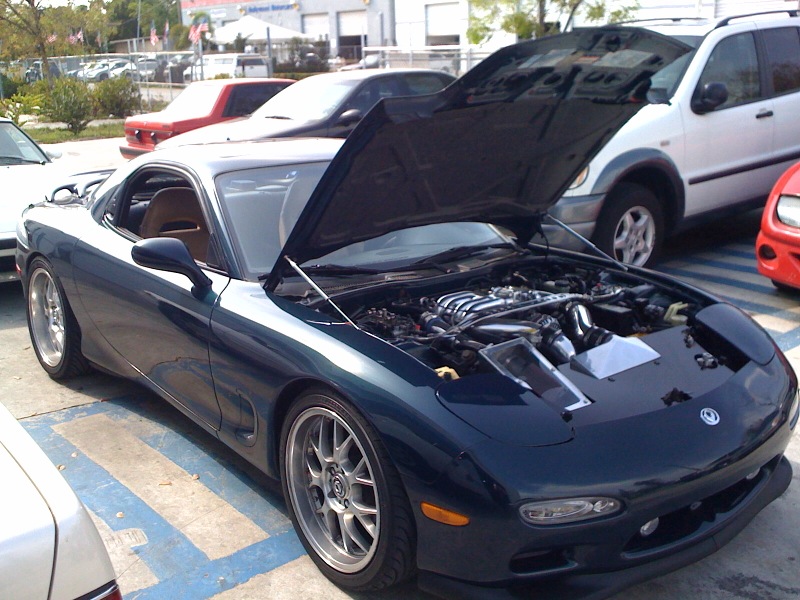

Finally finished my Underhood project! ***pics***-photo6.jpg

Reply Like

04-06-09, 07:04 AM

3GRX7

Rotary!

Thread Starter

iTrader: (1)

Join Date: Mar 2006

Location: Miami, Florida

Posts: 582

Likes: 0

Received 0 Likes on 0 Posts

Here's a before & after shot:

There's definitely something to be said about a clean stock OEM engine bay, but it's just SO hard not to modify!

Attached Thumbnails

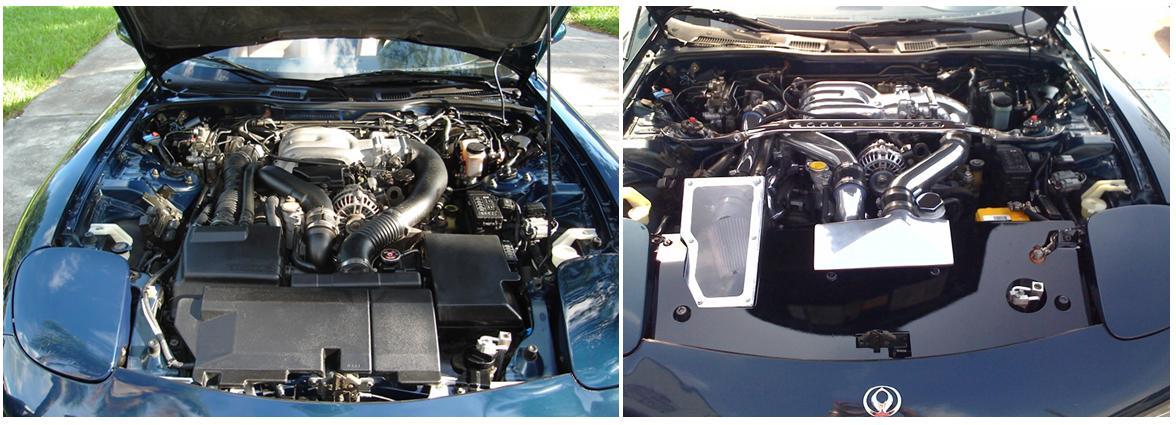

Finally finished my Underhood project! ***pics***-beforeafter.jpg

Reply Like

04-06-09, 08:10 AM

zanthrax

Senior Member

Join Date: Dec 2004

Location: The Netherlands

Posts: 251

Likes: 0

Received 1 Like on 1 Post

Really clean, nothing over the top. I like it.
Where did the fusebox that would normally be under the black cover go?

Reply Like

04-06-09, 08:30 AM

3GRX7

Rotary!

Thread Starter

iTrader: (1)

Join Date: Mar 2006

Location: Miami, Florida

Posts: 582

Likes: 0

Received 0 Likes on 0 Posts

It's still there. Nothing under that area was moved, making it a much simpler install.

Thanks for lookin'

Reply Like

04-06-09, 09:50 AM

ZumSpeedRX-7

rotary amuse

iTrader: (12)

Join Date: May 2003

Location: Massachusetts

Posts: 2,902

Likes: 169

Received 256 Likes on 135 Posts

that looks nice and clean. great job. did you make that panel yourself? whats it made out of?

Reply Like

04-06-09, 09:57 AM

phantom works

17,600 hp everyday!

iTrader: (3)

Join Date: May 2004

Location: SoCal

Posts: 331

Likes: 0

Received 0 Likes on 0 Posts

The cooling panel looks great, good job with the build.

Reply Like

04-06-09, 09:58 AM

runyun

Full Member

iTrader: (23)

Join Date: Apr 2003

Location: DFW

Posts: 175

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by ZumspdRX-7

whats it made out of?

Quote:

Originally Posted by 3GRX7

I had this custom shroud made from aluminum

Panel looks great... looks to have very nice fit

Reply Like
