FD TT oil leak?
#1
Full Member
Thread Starter
Join Date: Jan 2010
Location: 5OH!8
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
FD TT oil leak?
I know I haven't yet found the EXACT area as to where it would be leaking from, but last night I let it sit and found a small puddle of oil on the ground. I am going to grab an oil change later on today [probably closer to I'll be leaving within the hour] and have them check. I noticed a small collection on the plastic skid plate and it looks like it's coming from the front of the motor. It was a re-man'd motor with about 43K on it. Is there known issues as to where I should start to look? I appreciate the help and I know there will be some flamage, but that's expected; especially on an internet forum.
#2
TANSTAFL
iTrader: (13)
omp to front cover seal
oil pan
turbo oil return gaskets
The most likely culprit is your oil pan. The fix is to re-seal it like this:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/mythbusters-time-oil-pan-motor-mounts-488739/
oil pan
turbo oil return gaskets
The most likely culprit is your oil pan. The fix is to re-seal it like this:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/mythbusters-time-oil-pan-motor-mounts-488739/
#3
Senior Member
iTrader: (4)
Join Date: Apr 2001
Location: Denton, Tx
Posts: 370
Likes: 0
Received 0 Likes
on
0 Posts
i have a reman with very low miles. Last year the front cover seal went out. i cleaned up the engine, but the oil was "running" very fast so it was hard to find the source. I ended up using uv dye to trace it to the front cover and not the oil pan. Rotary Performance was quite "impressed" with the rate of oil loss I had. Just a thought to help out.
#4
Full Member
Thread Starter
Join Date: Jan 2010
Location: 5OH!8
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
I was at the dealership with a regular oil change and they were pretty impressed in the saturation under the motor and they recommended the same; oil dye. I'm assuming a front seal replacement is no joke.
#5
TANSTAFL
iTrader: (13)
Let us know what the dye shows. I've always done it old school... clean the engine, run it, and cheack again. You're def going to need to remove the undertray regardless.
You can also deduce where the oil came from by what parts of the engine are saturated. Oil is not going to flow up... if only the pan and undertray are wet, then it's the pan/motor mounts.
#6
Full Member
Thread Starter
Join Date: Jan 2010
Location: 5OH!8
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
True story. I am finding a good day to finally give the undertray a bath. Unforunately, it was under 10 degrees here with the wind chill bringing it under 0.
I've been thinking of LS swapping it. Yay or nay? I know there is another thread for this, but I suppose an honest opinion while I wait to find the leak wouldn't hurt.
I've been thinking of LS swapping it. Yay or nay? I know there is another thread for this, but I suppose an honest opinion while I wait to find the leak wouldn't hurt.
Trending Topics
#8
T3DoW
iTrader: (10)
Here's a quick example/find. You would use all the contents of one vial (sometimes less depending on the amount of oil capacity and the size of the leaks)
http://www.toolsource.com/gas-engine...rceid=googleps
#9
T3DoW
iTrader: (10)
I just looked at NAPA's website and I don't see anything. If you have a local autostore with a Commercial department that is where I would check. The Commercial departments deal strictly with the local shops and businesses and they will typically have a lot more product in stock relating to diagnostics and repair compared to a strictly retail store...this goes for all most if not all the big auto part retailers. Just gotta go in and ask
#10
Constant threat
Tracer Products TP34000601 UV Fluorescent Leak Detection Dye - Set of 6 : Amazon.com : Automotive
I think I am going to buy this TRACER brand product. It appears O'Reilly's auto parts has it.
Thanks for the advice!
I think I am going to buy this TRACER brand product. It appears O'Reilly's auto parts has it.
Thanks for the advice!
#11
Constant threat

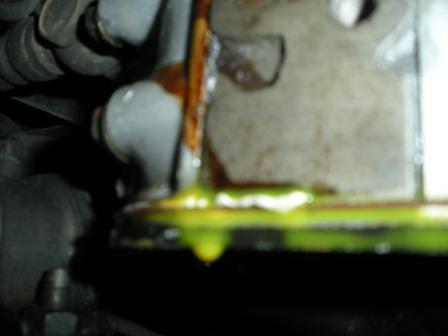

I got my dye in the mail today. The instructions say to use .5 oz to 5 qts of oil, and that it is safe to leave in the oil. I hope there isn't something unique to the rotary that would make it UNSAFE to leave in. I guess .5 oz in 150 oz of oil really is nothing...
