3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.
Sponsored by:

FD airflow

Thread Tools

Search this Thread

Old 02-06-07 | 12:18 PM
  #26
kevinlin22's Avatar
Senior Member


Joined: Sep 2006
Posts: 424
Likes: 0
From: sf
nice info, learned something today, thanks
Old 02-06-07 | 12:19 PM
  #27
Unholy FD3S's Avatar
Im a dog, I love hoes


Joined: Nov 2005
Posts: 1,501
Likes: 0
From: pa
a good read
Old 02-06-07 | 12:26 PM
  #28
DomFD3S's Avatar
Mod Powers...gone!

Joined: Apr 2001
Posts: 1,522
Likes: 0
From: SoCal
Originally Posted by drivelikejehu


whats with those red tail lights? is the 92 s6 different? the whole rear bumper seems to be different on that car.
That rear bumper came on cars designated to Europe.
Old 02-06-07 | 01:04 PM
  #29
RCCAZ 1's Avatar
Eats, Sleeps, Dreams Rotary
iTrader: (10)

Joined: Jun 2002
Posts: 3,360
Likes: 77
From: Phoenix, AZ
Great info. Thanks for posting.

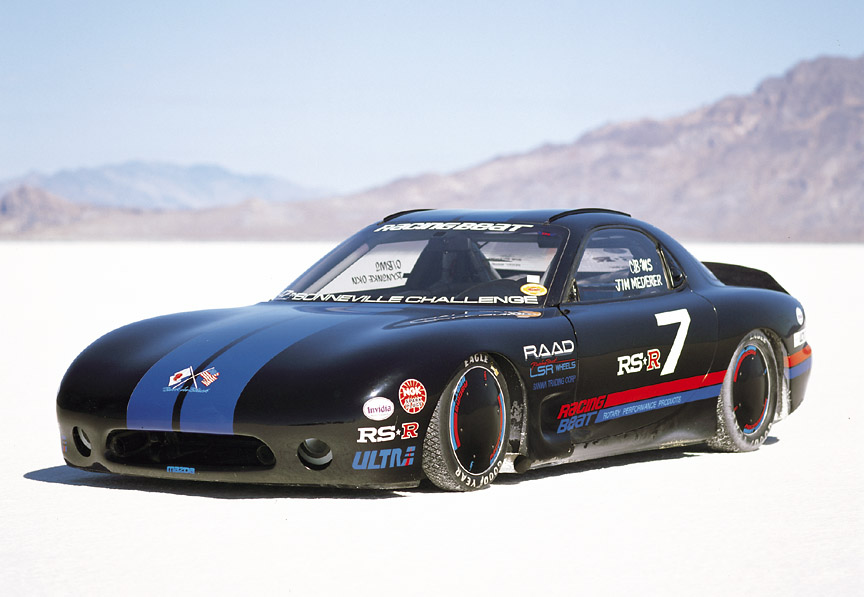

Anyone who doubts the Gen 3s rear end tendency to "lift" at high speed only needs to view the video of Racing Beat's first attempt at the land speed record back in the early 90s with their White FD. It definitely lifts from the rear (at 230 mph), and Big Jim was fortunate to walk away from the incident. Their later "Back in Black" FD sported a Porsche-like duck tail on the back which cured the lift problem all the way to 242 mph.
Attached Thumbnails FD airflow-95bonneville.jpg
Old 02-06-07 | 03:04 PM
  #30
Noxlupus's Avatar
Rotary Enthusiast

Joined: Aug 2003
Posts: 959
Likes: 0
From: SC
I would love to see the differences between pre and post 99 Spec design. Has anyone published these numbers or done tests to compare them? I would like to see what the trade off really is.
Old 02-06-07 | 03:11 PM
  #31
dgeesaman's Avatar
Moderator
iTrader: (7)

Joined: May 2002
Posts: 12,311
Likes: 22
From: Hershey PA
Originally Posted by RCCAZ 1
Great info. Thanks for posting.

Anyone who doubts the Gen 3s rear end tendency to "lift" at high speed only needs to view the video of Racing Beat's first attempt at the land speed record back in the early 90s with their White FD. It definitely lifts from the rear (at 230 mph), and Big Jim was fortunate to walk away from the incident. Their later "Back in Black" FD sported a Porsche-like duck tail on the back which cured the lift problem all the way to 242 mph.
Although you should keep in mind that aerodynamic effects on the flats are much different than a raceway - the entrained sand dust actually makes the air more viscous and dense in nature than clean air.

So the forces on the cars at bonneville don't align perfectly with normal aero designs.

Dave
Old 02-06-07 | 08:29 PM
  #32
ptrhahn's Avatar
Lives on the Forum
iTrader: (9)

Joined: Feb 2002
Posts: 9,137
Likes: 571
From: Arlington, VA
I doubt the 93/95 numbers were done with a liscense plate, so it probably won't look good, since you can't remove it from the OE '99 bumper.



Originally Posted by Noxlupus
I would love to see the differences between pre and post 99 Spec design. Has anyone published these numbers or done tests to compare them? I would like to see what the trade off really is.
Old 02-06-07 | 09:03 PM
  #33
GoRacer's Avatar
Speed Mach Go Go Go
iTrader: (2)

Joined: Oct 2001
Posts: 4,772
Likes: 2
From: My 350Z Roadster kicks my RX7's butt
I don't beleive '99+, C-West or any other model would give as much downfoce as Knightsports V. My second favorite is Damd with the adjustable aluminum center flap.
Old 02-07-07 | 07:43 AM
  #34
Rxmfn7's Avatar
Do a barrel roll!
iTrader: (4)

Joined: Oct 2001
Posts: 7,529
Likes: 2
From: Lower Burrell, PA
Nice article. Also, not really related but the 87-88 sport package equipped FCs also posted a drag coefficient of .29 , so the FD isnt all that special
Old 02-07-07 | 10:59 AM
  #35
scotty305's Avatar
~17 MPG
iTrader: (2)

Joined: Jan 2004
Posts: 3,354
Likes: 257
From: Bend, OR
That is a great article. I've seen a few of Autospeed's other wool tuft articles, but those cars (Subarus and Skylines) had pretty poor aero, with tons of separation at the rear windows.



Drag coefficient is only part of the equation, my friends. Frontal Area is just as important.


Total drag = Coefficient of Drag * Frontal Area * 0.5 * Air density * (Velocity)^2
(see http://www.grc.nasa.gov/WWW/K-12/airplane/drageq.html for more info)

A Cd of 0.29 isn't uncommon for modern cars (which have been designed with the help of computer aero simulation tools), but most of them have a much greater Frontal Area than the 3rd Gen. I'm not sure about the FCs: they're a bit taller, but not quite as wide.

-s-
Old 02-07-07 | 11:03 AM
  #36
dgeesaman's Avatar
Moderator
iTrader: (7)

Joined: May 2002
Posts: 12,311
Likes: 22
From: Hershey PA
Yep, that's why one of the major car magazines (C&D?) has turned to publishing the Coefficient of drag * Frontal Area instead of just the drag coefficient.

Dave
