fastcarfreak

I too have wanted to shave a couple of inches off of the top end of the opening in search of better performance out of my intercooler. I always felt that the intercooler wasnt working up to its potential. Now that i got water injection on the way, i dont so much as care as much as before. Although i would love to see the finished product. There is no such thing as too much intercooling with these cars. Every little thing counts.
Adam

rotoboy661

looks nasty man

why not just get a cwest bumper???

but if its koo for u then rock it

silver93r1

big *** intercooler hurry up and paint that. and it will look even better

rew13b

Looks good to me. Can't wait to see the bumper painted!!

Brad

tookwik

Watch out for the flex of the IC componants damaging the bumper/fiberglass

dubulup

go 99

scotty305

iTrader: (2)

I see the concept you're reaching for, but there are a few physics principles you're missing. You're missing a diffuser section in the front. A diffuser will decrease the air velocity and increase the pressure, both of which are good things for this application. Your 'flush-front' design will let air escape around the IC instead of forcing air through it.


-s-

scotty305

iTrader: (2)

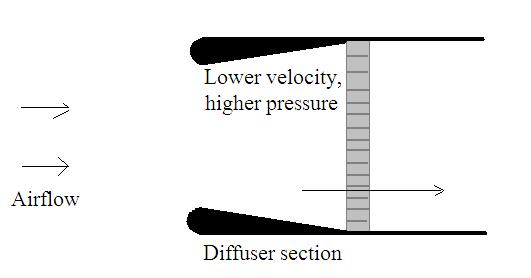

Here is a quick MSpaint diagram of how the diffuser will help:



Read pages 555-559 of Race Car Vehicle Dynamics, by Milliken & Milliken. ( ISBN: 1-56091-526-9 ), you should be able to find it on Amazon.com


Good luck,
-s-

alberto_mg

kinda cool. if i had the skills, i would also try and do some kind of inlet to divert air under the FMIC to the radiator.

Brian7

I think it looks good, but I'm a fan of the 'big intercooler scaring people' look.

Bodyshop

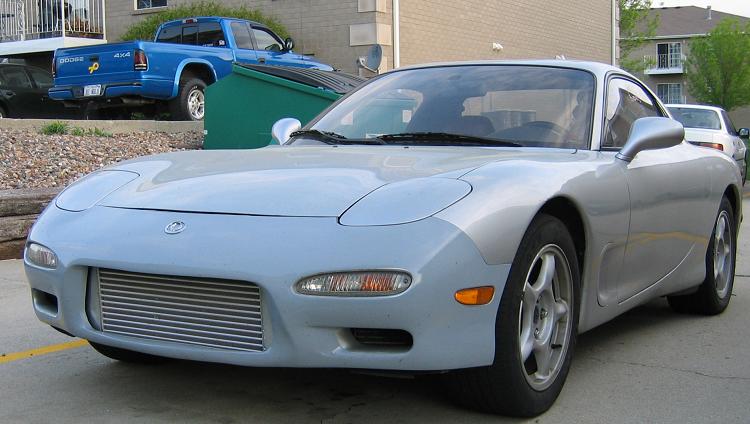

Here is an updated pic. All the edges are smoothed out and the entire bumper cover was primed. This is pretty much what it will look like when completed.

KaiFD3S

iTrader: (37)

looks good, just add the lip when its painted and it will even look better...

Bodyshop

You think 99 or R1. Any idea how much the R1 lips sell for. I haven't looked yet.

wtgator69

You can get an R1 lip from www.rx7.com for 265 bucks. I definitely think that the R1 would look best.

Narfle

iTrader: (16)

looks beautiful, add a lip +1

ptrhahn

iTrader: (9)

Looks like a hairlip

Or like when you dry your upper front teeth, then fold your lip under... ever do that as a kid?

KaiFD3S

iTrader: (37)

I personally like the 99 lip better and that's what I have on mine, but it is mostly personal preference....

I think the 99 lip will look better....

Another reason why I like the 99 lip is that since it streches out to the front more than the R1 it also acts like a front splitter to help direct air to the mouth of the front bumper..

Bodyshop

Good call. I think I'll go with the '99.

fdeeznutz

Go with the 99spec, I like the R1 lip on some cars but I have a 99 and love the look.

jimlab

A '99-spec front spoiler looks like *** on a '93-'95 bumper...

DCrosby

Was there a "Glitch in the forum ?"

KaiFD3S

iTrader: (37)

Guess my car looks like ***

jimlab

Do you really want me to pick it apart?

Montego

iTrader: (1)

Kai,
Looking like *** doesn't have to be a bad thing ya know...

for example:



^^ I think that *** looks pretty good. But that's just me *meh*

KaiFD3S

iTrader: (37)

Ha ha, good one Elliot...guess your right.
