Big help needed with clutch need GURU

This is the final stage that I am at with my RX7 on the rebuild, the car starts and everything works i just need the clutch to work

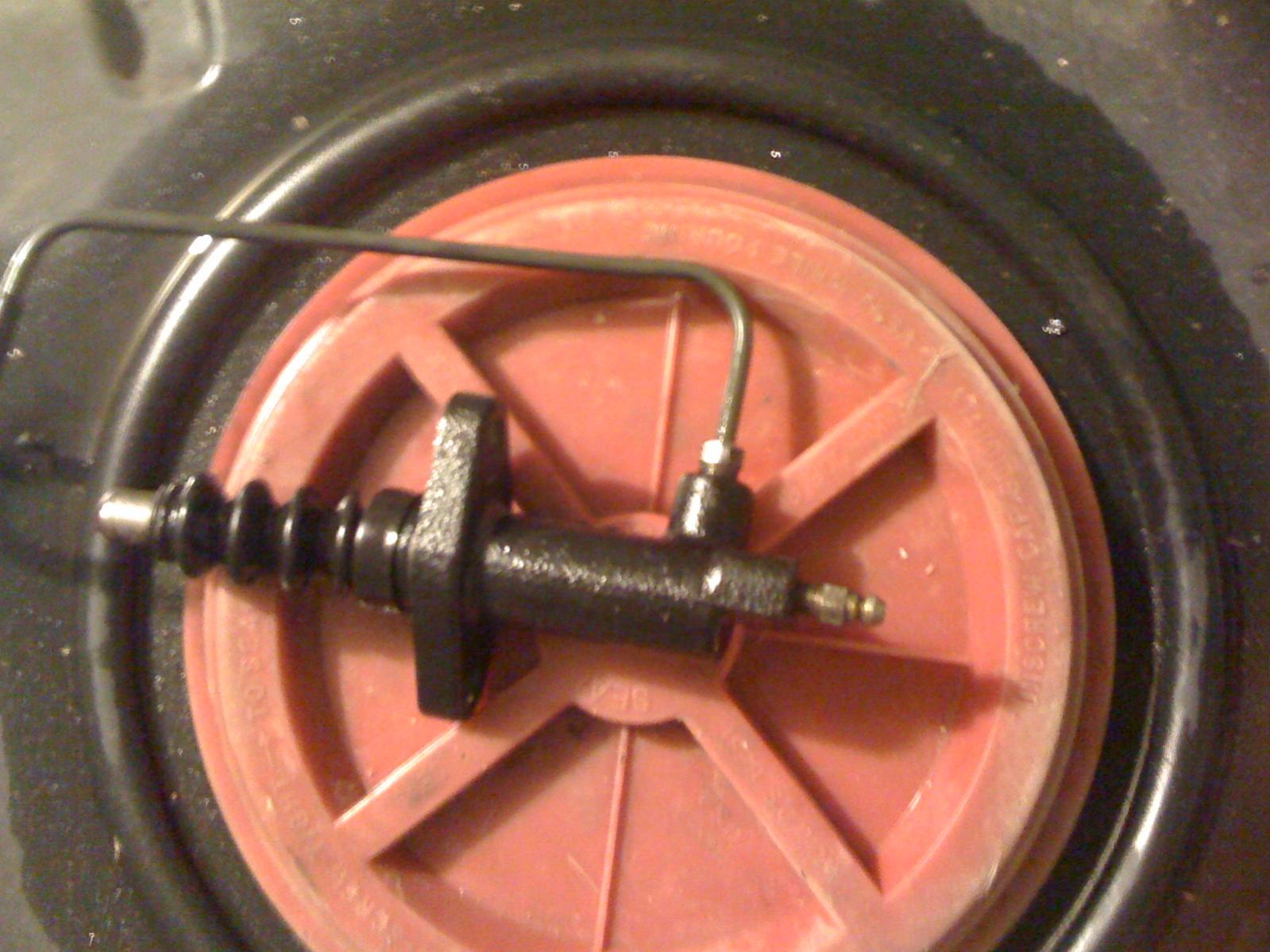

I started bleeding the clutch and noticed that all the brake fluid was coming through the transmission, I checked all fittings and then realized it was coming through the clutch release cylinder, so i took out the clutch release cylinder and I thought I was missing the piston I was not

I then inspected the clutch release fork assembly and noticed that it is springing towards the front part of the car, their is no spring back towards the clutch release cylinder (push rod), I am not sure if this is how this is suppose to work, I do not want to have to remove the transmission I was very careful when I was putting this together and I doubt I made a mistake, anyway can someone please advise me on what i need to do.

Need the clutch to work to lift off.

DN
Attached Thumbnails Big help needed with clutch need GURU-img_0156.jpg   Big help needed with clutch need GURU-img_0152.jpg
Old 01-26-10 | 11:37 PM
  #2
Chadwick's Avatar
Mr Sparkles
iTrader: (12)

Joined: Jun 2001
Posts: 785
Likes: 1
From: Smyrna, TN, USA
The throw-out bearing needs to be engaged to the clutch. Pull the end of the clutch fork towards the rear of the car until the throw-out bearing clicks into place.

If the rod in the slave cylinder extends to far it will blow fluid out of the end. Clean it up and press the rod back into the cylinder with the bleed screw loose. It should slide in pretty easy.

Hope this helps,
Dan
Old 01-27-10 | 12:02 AM
  #3
Dee_seal's Avatar
Thread Starter
Full Member
iTrader: (1)

Joined: Mar 2002
Posts: 76
Likes: 0
From: Denton TX
Originally Posted by Chadwick
The throw-out bearing needs to be engaged to the clutch. Pull the end of the clutch fork towards the rear of the car until the throw-out bearing clicks into place.

If the rod in the slave cylinder extends to far it will blow fluid out of the end. Clean it up and press the rod back into the cylinder with the bleed screw loose. It should slide in pretty easy.

Hope this helps,
Dan
Thank you thank you, I thought i was hosed, I take it I can do this with my hands from under the car?
Old 01-28-10 | 09:27 AM
  #4
Dee_seal's Avatar
Thread Starter
Full Member
iTrader: (1)

Joined: Mar 2002
Posts: 76
Likes: 0
From: Denton TX
Originally Posted by Chadwick
The throw-out bearing needs to be engaged to the clutch. Pull the end of the clutch fork towards the rear of the car until the throw-out bearing clicks into place.

If the rod in the slave cylinder extends to far it will blow fluid out of the end. Clean it up and press the rod back into the cylinder with the bleed screw loose. It should slide in pretty easy.

Hope this helps,
Dan
Thanks a lot, it worked like a charm, I am up and running now
Old 01-28-10 | 09:48 AM
  #5
GoodfellaFD3S's Avatar
Original Gangster/Rotary!
Veteran: Army
iTrader: (213)

Joined: Mar 2001
Posts: 30,580
Likes: 567
From: FL-->NJ/NYC again!
Ladies and Gentlemen, I present to you...... Dan Chadwick!

Old 01-28-10 | 11:27 PM
  #6
Chadwick's Avatar
Mr Sparkles
iTrader: (12)

Joined: Jun 2001
Posts: 785
Likes: 1
From: Smyrna, TN, USA
Originally Posted by goodfellafd3s
ladies and gentlemen, i present to you...... Dan chadwick!

rofl
Old 01-29-10 | 08:56 PM
  #7
rdahm's Avatar
TurboRX7.com
iTrader: (6)

Joined: Jul 2002
Posts: 690
Likes: 84
From: Monroe MI
My slave cylinder boot had ripped apart and it came falling out when I released my throw out bearing from my clutch. I think you can see it sitting on the sidelines in my build pics.

Whew... Awkward. Not really useful since Chadwick beat me to it. :-)
