Wouldn't have believed it if I hadn't seen it

So I'm driving on a nice back road on a sunny afternoon and I come to a turn and decide to take it so I down shift. Too my surprise though it will not downshift into second... or anything and while still coasting stalled out. Wtf?? started it in nuetral, great, still wouldn't go into any gear. Shut it off, put it in first, the car lurched forward and kept crawling but wouldn't start. SO I sat on this road probably an hour before someone could tow me home. I called everyone trying to figure out how to get my car into gear. Just installed a brand new clutch 3 weeks ago, it couldn't possibly have **** the bed. But yea, I hear I'm not alone on this one. Does this look familiar?

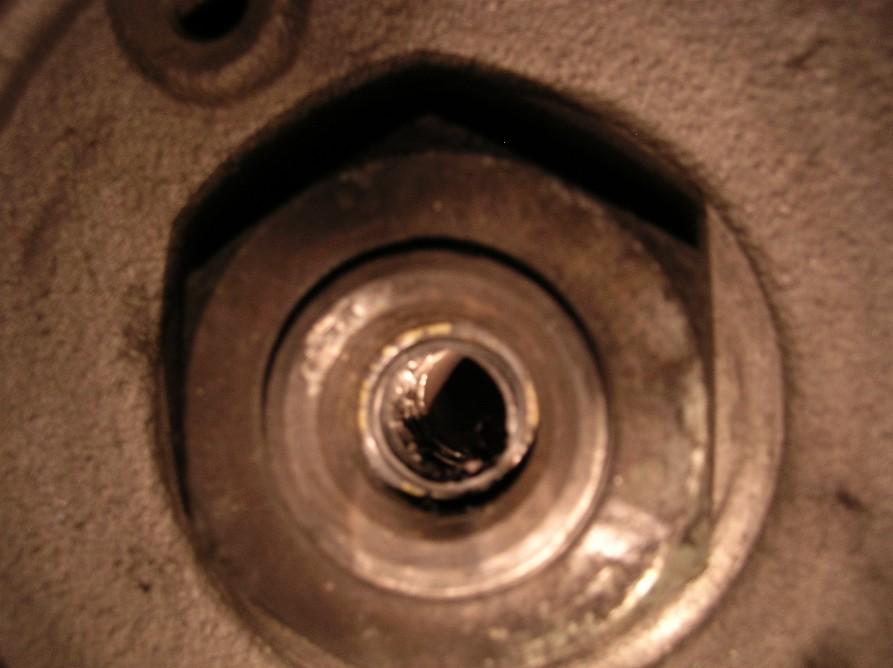

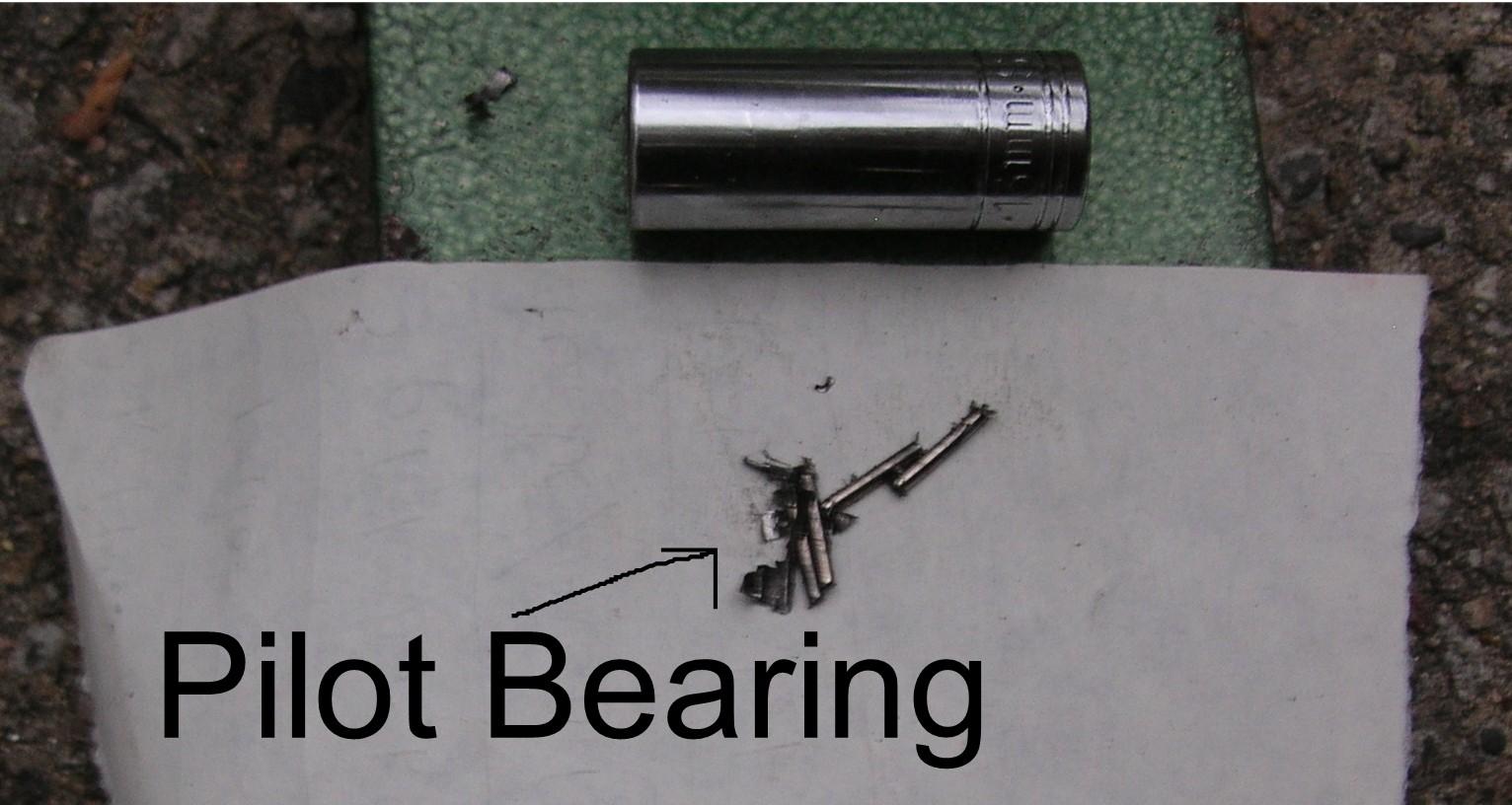

Attached Thumbnails Wouldn't have believed it if I hadn't seen it-dscn4983.jpg   Wouldn't have believed it if I hadn't seen it-dscn4986.jpg
Old 06-05-08, 04:30 PM
  #2
Learned alot | Alot to go

iTrader: (2)

CrackHeadMel's Avatar

Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes on 0 Posts
with a whopping 100ish miles on it, i hate you tranny
Old 06-05-08, 07:22 PM
  #3
The noob who could

iTrader: (2)

LogicFoxX's Avatar

Join Date: Jul 2007
Location: Tacoma
Posts: 204
Likes: 0
Received 0 Likes on 0 Posts
Re bleed clutch, if that doesn't work, might be either the master or slave cylinder. Does the clutch pedal stick to the floor at all?

Just some ideas.
Old 06-05-08, 07:31 PM
  #4
NASA-MW ST4

iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Norcal, Bay Area
Posts: 3,800
Likes: 0
Received 3 Likes on 3 Posts
You're pilot bearing went kablooey. It might have been dinged around when you re-installed the transmission after the clutch change, it wasn't replaced during the clutch change, or a seal was not installed and it went bad very quickly.
Old 06-05-08, 07:36 PM
  #5
Learned alot | Alot to go

iTrader: (2)

CrackHeadMel's Avatar

Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes on 0 Posts
New seal and pilot barring went in at time of the clutch, input shaft was so bound up in the pilot barring bore with all that carrnet present, it took me 2 hours to seperate the transmission from the engine once everything was unbolted, alot of prying, pulling swearing, and even some drinking
Old 06-05-08, 10:52 PM
  #6
NASA-MW ST4

iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Norcal, Bay Area
Posts: 3,800
Likes: 0
Received 3 Likes on 3 Posts
Did you fish around with a magnet to got all of the littly pieces out of the E-Shaft?
Old 06-05-08, 11:09 PM
  #7
HKS obsessed

iTrader: (7)

blackedoutFC3S's Avatar

Join Date: Mar 2008
Location: OP, KS
Posts: 1,529
Likes: 0
Received 0 Likes on 0 Posts
sometimes my clutch sticks to the floor and wont change gears but i can pull it out with my foot... dont know if thats the same for you or not but thats how it is for me
Old 06-05-08, 11:41 PM
  #8
Lives on the Forum

iTrader: (7)

Sideways7's Avatar

Join Date: Dec 2003
Location: Temple, Texas (Central)
Posts: 6,596
Received 9 Likes on 5 Posts
Originally Posted by blackedoutFC3S
sometimes my clutch sticks to the floor and wont change gears but i can pull it out with my foot... dont know if thats the same for you or not but thats how it is for me
Actually, mine just did that today. I haven't had time to search about it yet, though.
Old 06-06-08, 12:28 AM
  #9
Who Shot the Sheriff?

iTrader: (2)

Turbo II Rotor's Avatar

Join Date: Jan 2007
Location: Aurora, CO
Posts: 3,858
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Sideways7
Actually, mine just did that today. I haven't had time to search about it yet, though.
Replace The master, slave and line. They are cheap enough and you won't have to touch it again for another 150k miles.
Old 06-06-08, 04:58 AM
  #10
Full Member


Join Date: Jun 2003
Location: NEPA
Posts: 180
Likes: 0
Received 0 Likes on 0 Posts
exact same thing just happened to me last week.

changed my clutch last week, and after driving 3 days about 30 miles a day, i couldnt get any gear

took forever to separate tranny, and when i finally got it, found my pilot bearing crushed to ****

just got it all back together 4 hours ago,
Old 06-06-08, 08:31 AM
  #11
Full Member


phound69's Avatar

Join Date: May 2005
Location: East Oregon
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
yep, replace line, master and slave then.

My vert is starting to feel spongy on the pedal, which is exaclt how my cpe felt before those components gave out.

Go to mazdatrix, you find all of what you need for 122.
Old 06-06-08, 01:04 PM
  #12
1uv1500

Thread Starter

S13nowangel's Avatar

Join Date: Dec 2006
Location: New Hampshire
Posts: 54
Likes: 0
Received 0 Likes on 0 Posts
thanks for the advice but i already replaced the line with steel braided line, new slave cylinder, new clutch and ****. i got everything new so i was really surprised when i was driving that it juat went like that. it wasnt an issue of my clutch pedal sticking or anything. it was stupid because the pedal still felt like it had all along - no change. and yes i got all the little pieces out with a magnet.
Old 06-06-08, 01:37 PM
  #13
The Blue Blur


Rx-7fetish's Avatar

Join Date: Dec 2006
Location: Virginia
Posts: 716
Likes: 0
Received 0 Likes on 0 Posts
This is exactly what happened to me, me and my dad forgot to put a seal in when we put in my new motor and tranny, it sucked so bad, it was even more embarrising cause i got towed by my friends jetta, whom i joked on all the time for being slow, im never gonna hear the end of that
Old 06-06-08, 02:36 PM
  #14
(_8(|)


88t2romad's Avatar

Join Date: Jul 2004
Location: Manhattan, Kansas
Posts: 2,034
Likes: 0
Received 0 Likes on 0 Posts
make sure you properly lubricate it next time
Old 06-06-08, 02:52 PM
  #15
Rotary Enthusiast

initial D is REAL!'s Avatar

Join Date: Mar 2007
Location: Pasadena
Posts: 1,485
Likes: 0
Received 0 Likes on 0 Posts
Wait a second, when did you tkae those pictures? before you changed the clutch, or after it screwed up and you took off the tranny? Did you check the main shaft on the tranny after the bearing screwed up like that? I can imagine it got eaten up and wasnt too happy, even with a new pilot bearing.

Either it wasnt properly lubricated. BTW did you tighten the bolts to get the tranny mated to the engine? You want to push the engine and tranny together, never use the bolts to bring it together. You usually end up screwing hte pilot bearing.
Old 06-06-08, 08:07 PM
  #16
Senior Member


Tim McCreary's Avatar

Join Date: Mar 2001
Location: Roaring Spring, PA USA
Posts: 524
Likes: 0
Received 2 Likes on 2 Posts
They do make oil bearing brass sleeves that can be used instead of the roller bearings. I had an FD that locked up under hard accellerations. Bearings were just bad enough to allow them to bind.

Tim
Old 06-06-08, 09:18 PM
  #17
Banned. I got OWNED!!!

nr2180's Avatar

Join Date: Nov 2007
Location: Xenia
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
That happened to me once. I thought it was the clutch, throw out bearing, or syncros. It turned out to be the clutch fork pivot bolt broke. I ordered a new clutch before I took it a part because I that was it, but when I cracked the motor and tranny apart the ball part of the the bolt fell out. So I bought a new clutch for nothing, but the clutch was an ACT so it was a good upgrade anyway. So I would for sure pull your tranny out before I bought anything.
Old 06-07-08, 11:28 AM
  #18
Junior Member

RX7wieler's Avatar

Join Date: Jun 2007
Location: Steinbach MB Canada
Posts: 49
Likes: 0
Received 0 Likes on 0 Posts
samething happend to me last fall just i got pissed off and slamed it into gear and blew up the clutch
