which wire does that single spade under the fusebox go to?
#51
seven-less
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Apr 2003
Location: city of houston.... y0!
Posts: 2,082
Likes: 0
Received 0 Likes
on
0 Posts

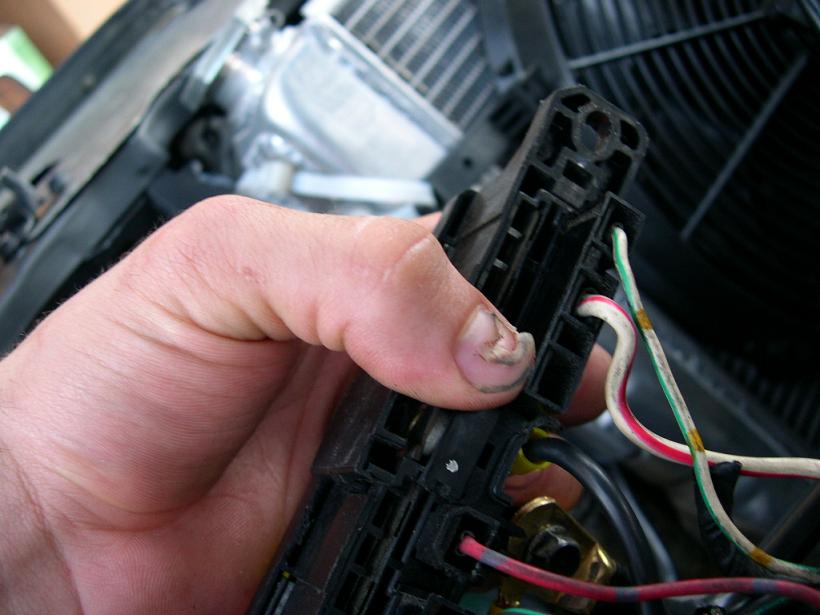

i'm also missing a wire under the fusebox. just realized that. the three prong connector, right under the 30A "head' fuse. what the hell happend to that wire?
it's the one right under my f-ed up thumb...
it's the one right under my f-ed up thumb...
#52
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
Originally Posted by Sir Rupert Hobo
ok, i have 12v at the black and green wire, but i don't have 12v at the B/W wire....

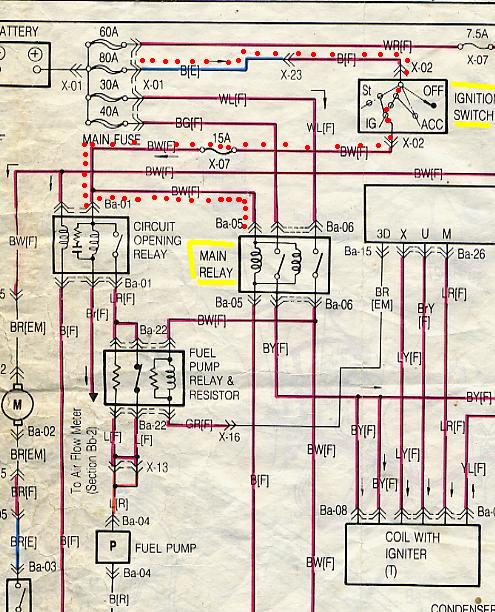

The Main Relay needs to be pulled in. The black/white wire does this WHEN the key is turned to ON.
There IS one fuse b/t the ignition switch and the Main Relay. It is called the ENGINE fuse and is in the crew compartment. There is a picuture of the fuse box and lables in the FAQ thread on this second generation site.
Either we're back to the ignition switch and the BLACK WIRE or the ENGINE FUSE is blown OR the fuse is not being fed from the engine bay.
If the fuse is good.....I'd go look at the black wire at the ignition switch. The black wire that is in the same plug as a black/white wire. A foot or so below the ignition switch.
#55
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
A very simple test: Leave your key in the house. Go to the car. Put the meter's positive lead on (or just touch) the large battery feed wire on the alternator. Put the negative lead on a known good ground. YOu should have battery voltage when you do that. Did you? It's tied into the black wire that goes to the ignition.
#56
seven-less
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Apr 2003
Location: city of houston.... y0!
Posts: 2,082
Likes: 0
Received 0 Likes
on
0 Posts
wow.... wow!!!!
HAILERS, YOU'RE A ******* GENIOUS! the car turned over!!!(just a little bit. dont wanna start it yet)
so simple, yet so far away. can't thank you enough man....
HAILERS, YOU'RE A ******* GENIOUS! the car turned over!!!(just a little bit. dont wanna start it yet)
so simple, yet so far away. can't thank you enough man....
