where should these plug in ?
i believe Hailers or satch may be able to tell me what these clips went to 87 T2 s5 block and turb.thanks
pic 1 is under coil , pic 2 is by window washer res , pic 3 is by fuses , pic 4 is by radiator , pic 5 is by the cpu
pic 1 is under coil , pic 2 is by window washer res , pic 3 is by fuses , pic 4 is by radiator , pic 5 is by the cpu
Last edited by bostonspgs; 06-27-10 at 08:21 PM.
06-27-10, 08:48 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Pic !:If it is a six pin connector it just sits there(nothing to hook to)
Pic 2:I am thinking it is the AFM wire without a connector.

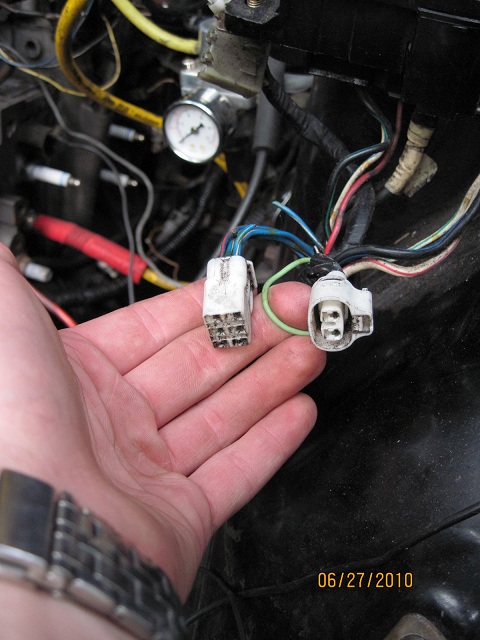

Pic 3:Hooks the main and battery harness together(by the Brake booster and under the Secondary coils)
Pic 4:..I dunno.
Pic 5 ; ,maybe the Cruise control Connector(it plugs into the Cruise Cpu....or the PS Ecu....I think.
Pic 2:I am thinking it is the AFM wire without a connector.
Pic 3:Hooks the main and battery harness together(by the Brake booster and under the Secondary coils)
Pic 4:..I dunno.
Pic 5 ; ,maybe the Cruise control Connector(it plugs into the Cruise Cpu....or the PS Ecu....I think.
06-28-10, 10:56 AM
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

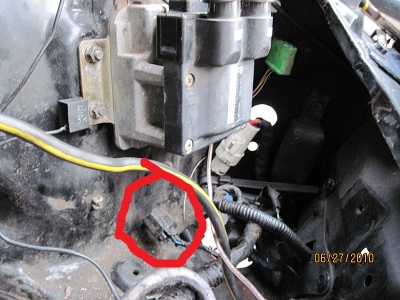

I see 4 spark plugs,so ya..it hooks up the battery harness to the main harness,right around by the trailing coil.
Brake booster is the Big *** round thing on the Firewall,.behind the master brake reservoir.ABS or not,if you have power brakes you have a Booster.

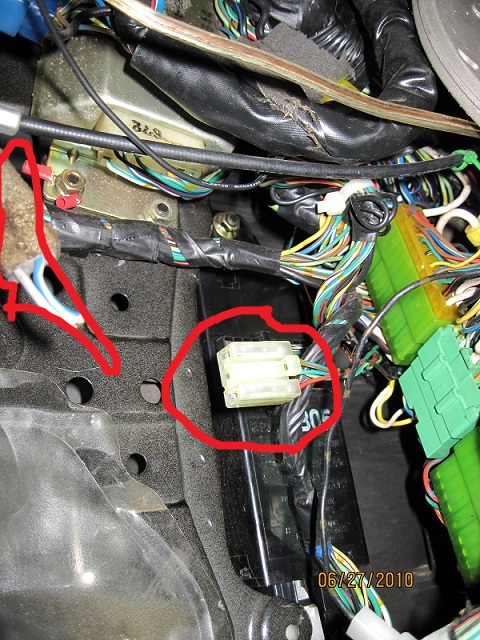

Cut wire??..ok..Fuzzy Connector?(like sponge?)..either door connector or it atatches to the sunroof wiring..I can't really tell,as the pic partly shows what you are asking about.
Brake booster is the Big *** round thing on the Firewall,.behind the master brake reservoir.ABS or not,if you have power brakes you have a Booster.
Cut wire??..ok..Fuzzy Connector?(like sponge?)..either door connector or it atatches to the sunroof wiring..I can't really tell,as the pic partly shows what you are asking about.
06-28-10, 11:44 AM
#5
hmm..

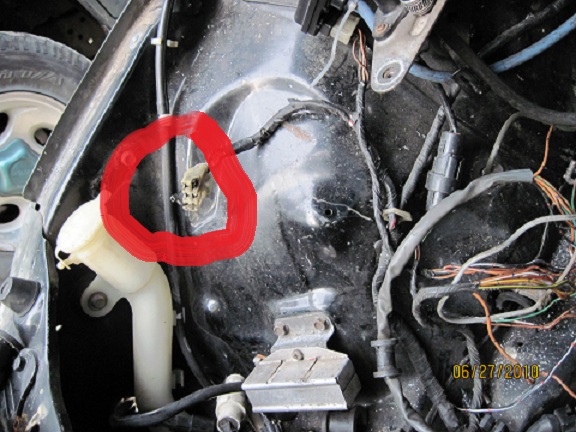

No.1. if it's 2 wire, it looks like its for the front drivers sidemarker light. check to seee if it's there and plugged in.
no.2. is for AAS on models that have AAS shocks. leave unplugged.
no.3. large for power steering pump. the small one is for the fluid level i beleive.
no.4. A/c pressure switch.

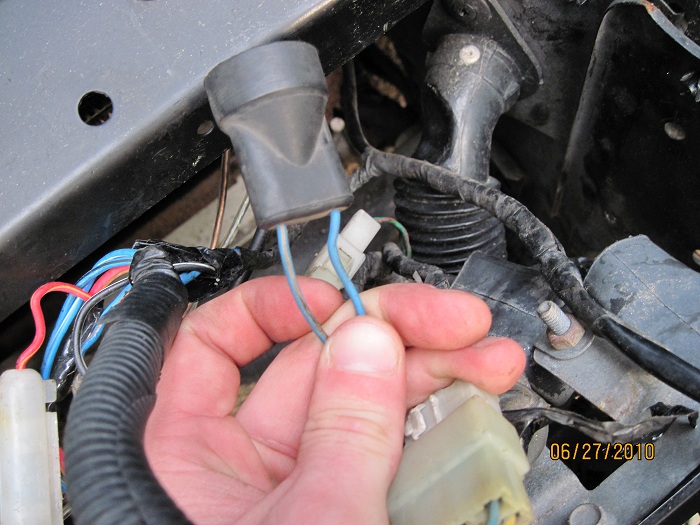

no.5. can;t tell with the cut wires, and the other goes to CPU down there, the cruise i believe, check the F'SSSS'MMMM.
No.1. if it's 2 wire, it looks like its for the front drivers sidemarker light. check to seee if it's there and plugged in.
no.2. is for AAS on models that have AAS shocks. leave unplugged.
no.3. large for power steering pump. the small one is for the fluid level i beleive.
no.4. A/c pressure switch.
no.5. can;t tell with the cut wires, and the other goes to CPU down there, the cruise i believe, check the F'SSSS'MMMM.
06-28-10, 04:38 PM
#6
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
I see 4 spark plugs,so ya..it hooks up the battery harness to the main harness,right around by the trailing coil.
Brake booster is the Big *** round thing on the Firewall,.behind the master brake reservoir.ABS or not,if you have power brakes you have a Booster.
Cut wire??..ok..Fuzzy Connector?(like sponge?)..either door connector or it atatches to the sunroof wiring..I can't really tell,as the pic partly shows what you are asking about.
Brake booster is the Big *** round thing on the Firewall,.behind the master brake reservoir.ABS or not,if you have power brakes you have a Booster.
Cut wire??..ok..Fuzzy Connector?(like sponge?)..either door connector or it atatches to the sunroof wiring..I can't really tell,as the pic partly shows what you are asking about.
06-28-10, 05:13 PM
#7
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
pic 1 resolved , washer motor f-05 l.h.
pic 2 resolved ,AAS
pic 3 half resolved left clip is power steering step motor not sure about right side
pic 4 resolved ac pressure switch
pic 5 unresolved wire colors do not match fsm cruise control pin is like this
g/r _ r
g/y,g,b
pic 2 resolved ,AAS
pic 3 half resolved left clip is power steering step motor not sure about right side
pic 4 resolved ac pressure switch
pic 5 unresolved wire colors do not match fsm cruise control pin is like this
g/r _ r
g/y,g,b
Trending Topics
06-28-10, 05:23 PM
#9
Hide the pinball machine
iTrader: (2)
Join Date: Aug 2007
Location: Sammamish, wa
Posts: 461
Likes: 0
Received 0 Likes
on
0 Posts

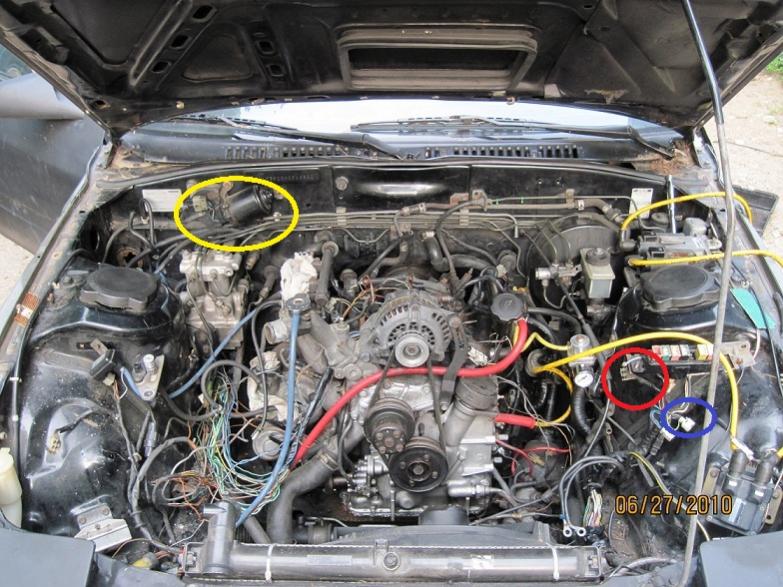

Also not sure about red or blue, but what you have circled in yellow would be your wiper motor. Brake booster is on the other side of the engine bay against the firewall. big round black think with the brake master cylinder coming out of it. Hard to miss.
edit: blue circle looks like the connectors for power steering and AC, which it looks like you don't have.
go to the FAQ and find links to the FSM. There are wiring diagrams there that have all the wire colors and what they go to. GL
06-28-10, 05:40 PM
#10
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
yah i have all the fsm which i constantly go through but some things arent shown or im looking in the wrong place . yah quite a mess part of my rewiring and complete emissions removal ,car ran like dog and it has way to many unplugged clips , so i am removing options from my harness's that arent there like ac p/s aas etc.btw i did figure out the prob, someone hacked up the cooling system and left stuff at random, plus injectors need servicing(or upgrade) plus tps was not tuned.
oh and im not sure what the brakes booster looks like but brakes have been untouched and are intact , that clip was to a washer motor option on driverside
oh and im not sure what the brakes booster looks like but brakes have been untouched and are intact , that clip was to a washer motor option on driverside
Last edited by bostonspgs; 06-28-10 at 05:44 PM.
07-16-10, 01:14 PM
#13
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
got a question about the aas b/r wire. Why does this tap into the theft control fdr-02 clip , it is labeled additional horn in the diagram . it was factory the aas wire was tapped between the door clip and fuse box
07-16-10, 03:21 PM
#15
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
yes it does thank you. is it safe to eliminate that aas tap, reconnect the window to the fuse panel and then lower the amps for fusing? Or would it be better to leave the 30a as the aas has either never been there or disabled long ago?
