What vac lines go to these nipples (checked fsm) s4 t2
#1
Dixie Normous
Thread Starter
![Arrow](https://www.rx7club.com/images/icons/icon2.gif)
It appears the nipple in the LIM right next to the injectors for the oil metering system goes somewhere to the fuel rail according to the FSM but I dont have a nipple on the fuel rail for a hose, plus there is another line from the rats nest that goes somewhere and I have no idea where it goes. I appreciate the help-
you will see two nipples in the pic-
![](http://img265.imageshack.us/img265/2527/img2059w.jpg)
Uploaded with ImageShack.us
you will see two nipples in the pic-
![](http://img265.imageshack.us/img265/2527/img2059w.jpg)
Uploaded with ImageShack.us
#5
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
After hours of scrolling to the left I saw the nipples you were talking about. THe one that kinda angles off to the right (standing on the drivers side) goes to the fpr, I cant remember the other i believe it goes to one of the nipples on the firewall side of the UIM
#6
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
#7
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts

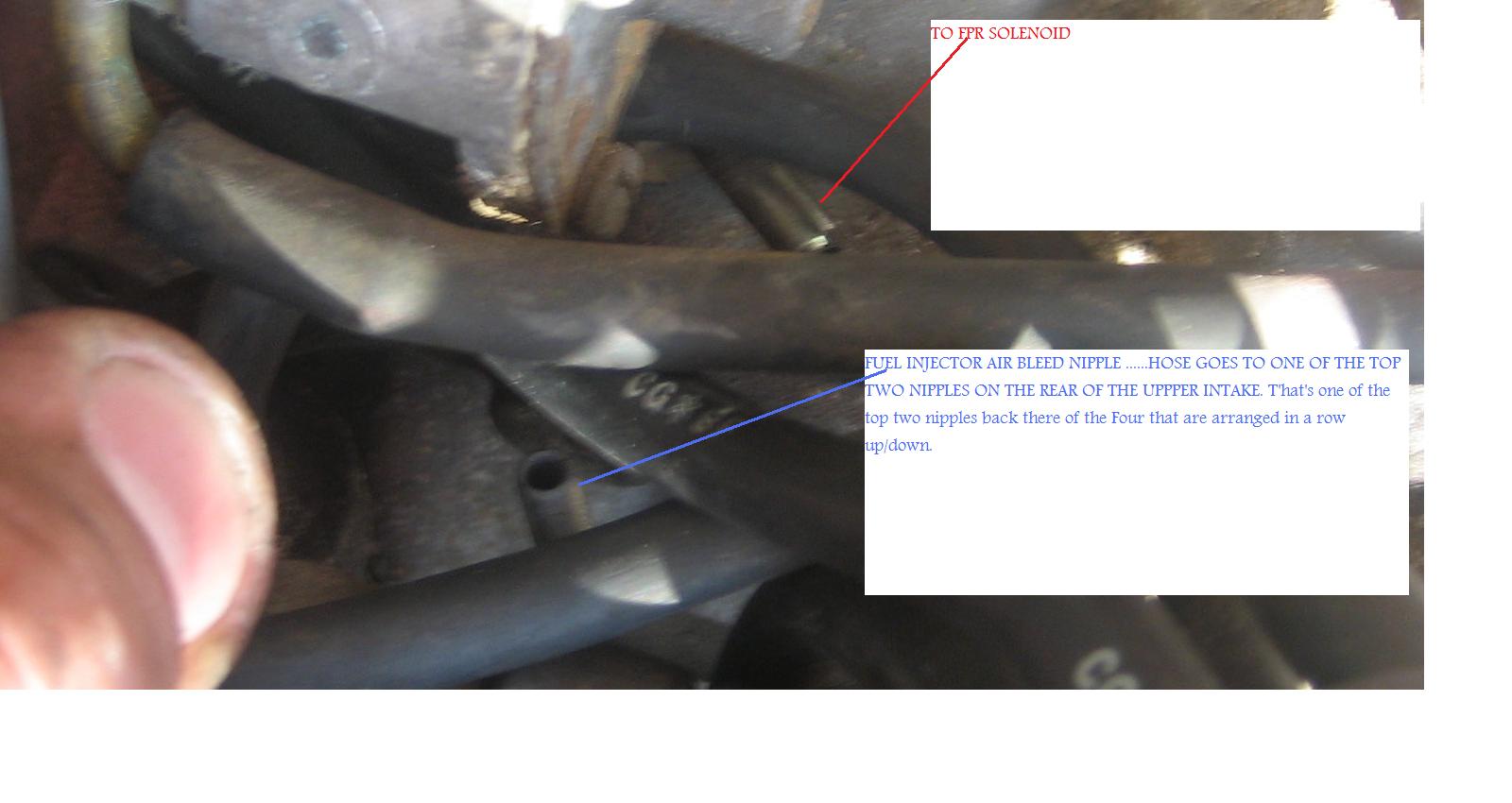

The angled one goes to a hardline on the vacuum lines and to the solenoid for the FPR.
The nipple b/t the two oil injectors feeds what is called bleed air to the PRIMARY fuel injectors diffusers. That nipple gets fed metered air from the rear of the intake manifold. ON the back of the manifold are three or four nipple one above the other. A hose connected to the top nipple back there feeds that primary air bleed nipple b/t the oil injectors.
The nipple b/t the two oil injectors feeds what is called bleed air to the PRIMARY fuel injectors diffusers. That nipple gets fed metered air from the rear of the intake manifold. ON the back of the manifold are three or four nipple one above the other. A hose connected to the top nipple back there feeds that primary air bleed nipple b/t the oil injectors.
Trending Topics
#10
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
First jpg is series four. Second is series five.

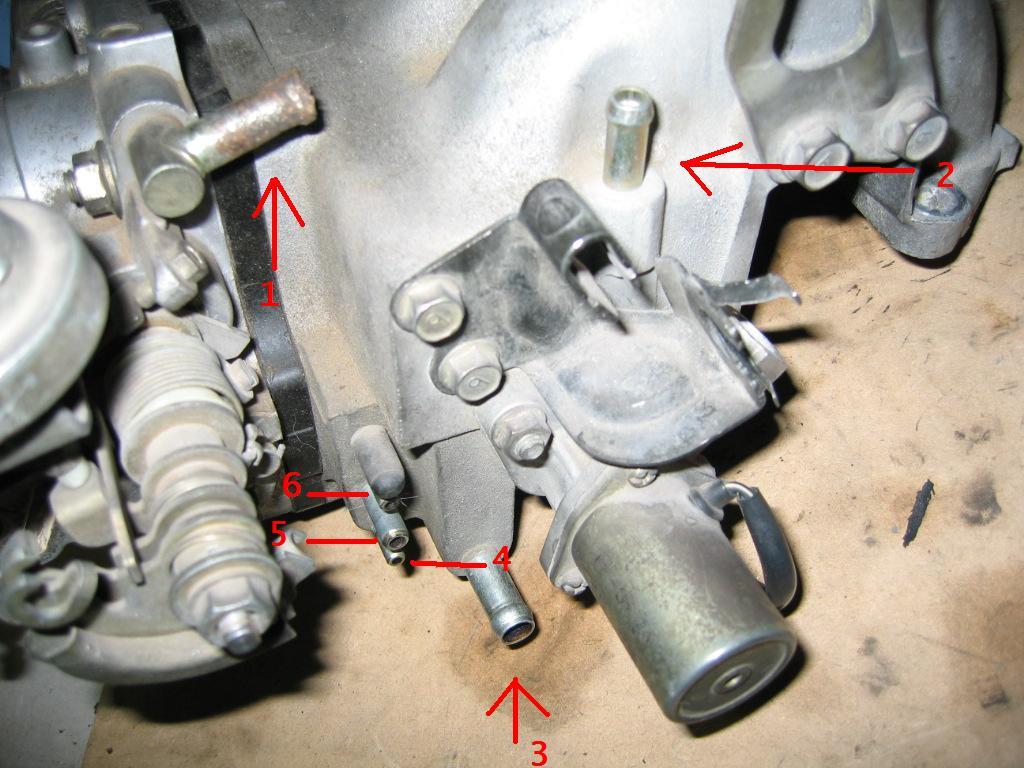

#2 is Air Supply valve outlet
#3 is brake booster feed
#4 is vacuum to the water thermovalve
#5 is oil injector spider feed.
#6 is fuel injector air bleed feed.
Cap above #6 is not used and is capped off.

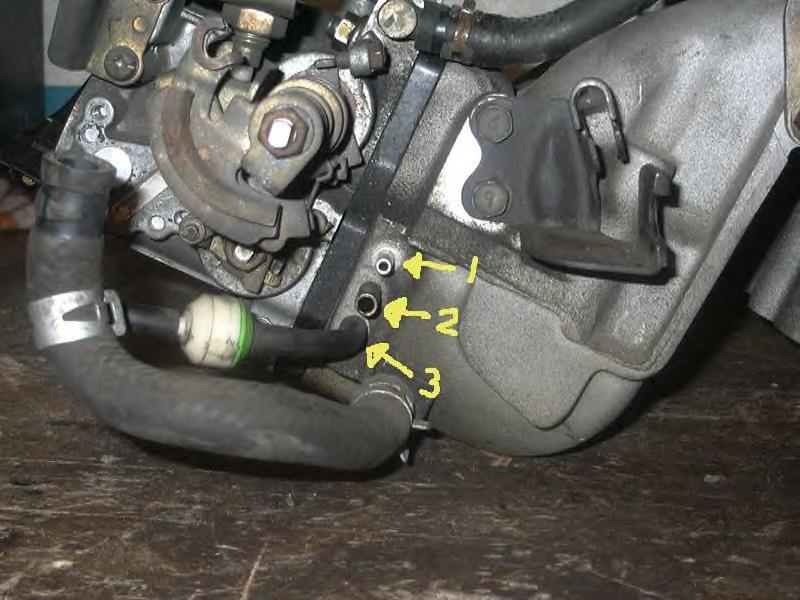

Second jpg is series four with but three nipples.
#2 is Air Supply valve outlet
#3 is brake booster feed
#4 is vacuum to the water thermovalve
#5 is oil injector spider feed.
#6 is fuel injector air bleed feed.
Cap above #6 is not used and is capped off.
Second jpg is series four with but three nipples.
