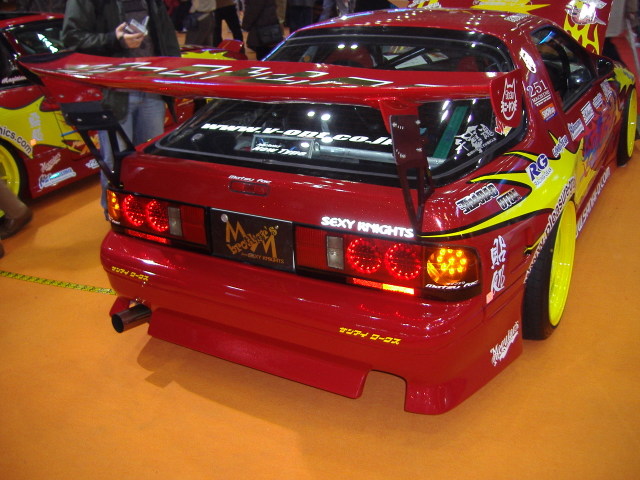

what do you think of these tail lights?
#27
75LIDE7
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Oct 2005
Location: va beach, va
Posts: 377
Likes: 0
Received 0 Likes
on
0 Posts
yeah i would really like to figure how to do that. ive never seen anyone convert tail lights on s5s like that. maybe coz theyre awesome the way they are haha. except those led lights would be even better.
#28
Carter 2.0
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Go To Radio Shack and buy some LEDs and Hot glue them into the back of the Cone shaped plastic that holds your current bulb.
Items needed. 6 12v LEDs from Radio Shack. You can buy them in Red, Green, Amber, White and Blue. A small Drill bit just the size of the LED and your moms Hot Glue gun. Mild electricle knowledge and a Soldering Iron.
Make a Template for Drilling a pattern in the back of the plastic. Make suer that whatever pattern you choose the Drill holes are spaced properly or else it will be rice No matter what after that. Drill the holes and then mount the LEDs with the Hot Glue gun be careful because LEDs are hot when burning so you may have to mount them and glue from behind but know that nobody or nothing is going to touch the LED so you really don't have to worry too much about the sturdiness.
Once the LEDs are mounted then Hook them to the power source. Your current bulb has a Positive and a Negative wire.
Some EE is going to have to tell you exact power max/mins and if you need a Capacitor in between or whatelse. Seems to me it's just straight 12v 10-25amp
How hard could it be.
This should take about 20 minutes, my Webelos Scouts made LED electrical circuits just three months ago......call if you need help I'll send a Webelo over there.
Items needed. 6 12v LEDs from Radio Shack. You can buy them in Red, Green, Amber, White and Blue. A small Drill bit just the size of the LED and your moms Hot Glue gun. Mild electricle knowledge and a Soldering Iron.
Make a Template for Drilling a pattern in the back of the plastic. Make suer that whatever pattern you choose the Drill holes are spaced properly or else it will be rice No matter what after that. Drill the holes and then mount the LEDs with the Hot Glue gun be careful because LEDs are hot when burning so you may have to mount them and glue from behind but know that nobody or nothing is going to touch the LED so you really don't have to worry too much about the sturdiness.
Once the LEDs are mounted then Hook them to the power source. Your current bulb has a Positive and a Negative wire.
Some EE is going to have to tell you exact power max/mins and if you need a Capacitor in between or whatelse. Seems to me it's just straight 12v 10-25amp
How hard could it be.
This should take about 20 minutes, my Webelos Scouts made LED electrical circuits just three months ago......call if you need help I'll send a Webelo over there.
#29
Carter 2.0
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Originally Posted by El Nene 7
this are leds that you have to cut your s5 lights in order to make them work and the kit cost 250.00 they sell here and they come with instructions
*Webelos in a Tail Light Sweat shop, turning out Tons of LED conversions*
Mwahahahahahaahhah, All your base belong to us!~!!!!!!~!~~!~`
#32
Sleeper but still slow
![](https://www.rx7club.com/images/misc/05_year_icon.png)
iTrader: (1)
Join Date: Jan 2006
Location: Georgia
Posts: 1,766
Likes: 0
Received 0 Likes
on
0 Posts
they don't look as good in the "better pic" but I think the angle made the first pic appear to have clear lenses with black underneath, if you smoked the whole lense (besides the area covering the ring, and had like 2 red rings whith and a gold circle when off, and the same but lit when on) it would look alot better, like a mix between S5 and gen 3 and then the LEDs to break the whole 7 chain.
#35
Passing life by
![](https://www.rx7club.com/images/misc/05_year_icon.png)
This is old anyhow. View Eriksseven's moded tails to figure out how to do this. I just orderd a LED set off ebay. Going to finaly do it. I sold my S5 tails a while ago to do this too so got to find a new pair now.
#38
Sleeper but still slow
![](https://www.rx7club.com/images/misc/05_year_icon.png)
iTrader: (1)
Join Date: Jan 2006
Location: Georgia
Posts: 1,766
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Flobb
$250 for the kit plus $250 for a set of s5 tails equals i like the s4 tails better
#39
75LIDE7
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Oct 2005
Location: va beach, va
Posts: 377
Likes: 0
Received 0 Likes
on
0 Posts
yeah i think im taking a trip to the junkyard or something to find some old s5 taillights. but im almost 100% sure that someone had already found them hahaha. i dont think theres to many s5 tail lights just laying around.
#40
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2003
Location: Louisville, KY
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts

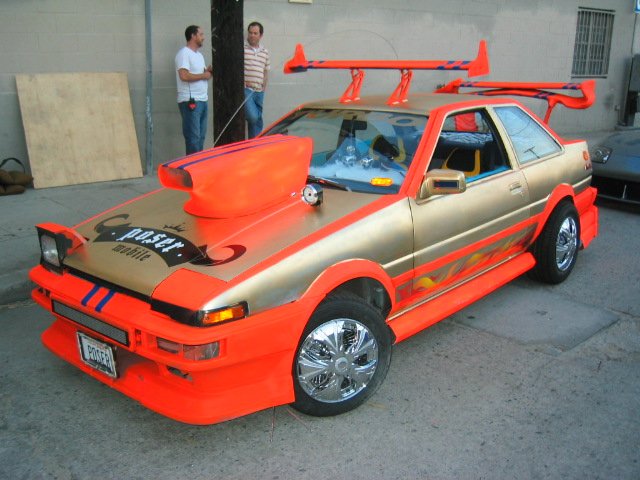

lol... Man I'm sorry- I guess I'll be the only one to disagree with everyone. No offense, but I don't find it that appealing. You guys remember that T-Mobile commercial with the AE86? That's the first thing I thought of when I saw this car.
For those who don't know what I'm talking about:
Edit: Sorry... I just had to mention the guage on the hood. It gets me every time. lol
For those who don't know what I'm talking about:
Edit: Sorry... I just had to mention the guage on the hood. It gets me every time. lol
Last edited by RX7_Nick; 02-14-06 at 11:50 PM.
#44
i rarely see people take into consideration you need 2 types of LED for the modifications, if you install all low draw LEDs or high draw LEDs you will confuse people behind you as to whether you are braking or having your runnings lights on, if you are rearended you will be at fault, keep that in mind when modding them.
imo, i don't like them much, looks like the car belongs in a casino.
imo, i don't like them much, looks like the car belongs in a casino.
#46
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2005
Location: fort bragg
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
it is a very simple construction. i have been designin it for about 2 weeks now cause in going to make a set for my wide body 88 fc. i tring ot get the brake driving lights down. once i get that down a set of s5 light i will get the proto type done and then i will make a plastic mold and start by make a few.. ex. time about 3 month.. cause the army and the time restant.. but when i get the proto type drawings down i will show u guys a 3d drawing and u tellme what u thing..
