Vacuum diagram question

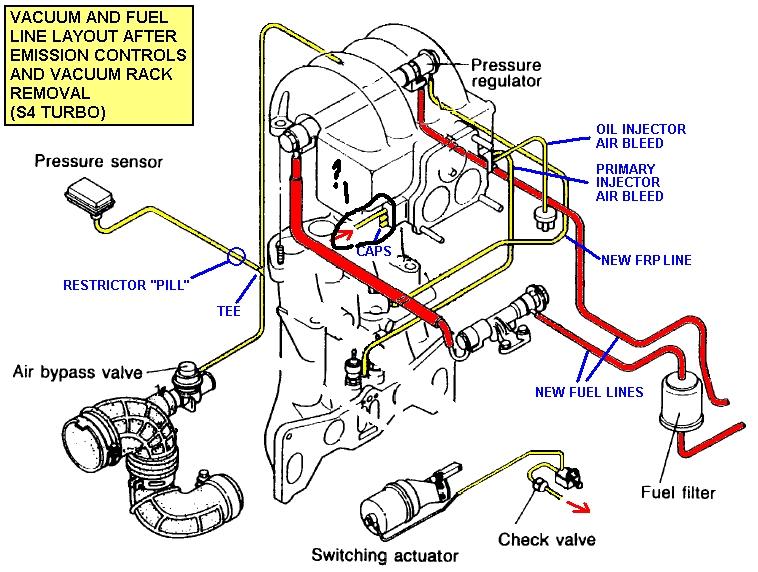

I've got the UIM off to change the secondary injectors and figured I'd take care of the rats nest as well. I have 2 questions, on the front of the UIM where the 3 vacuum lines come in, in the picture there is a partial line and I can't tell where it goes. It's the top of the 3. Second question; what about the lines that connect to the TMIC?
#3
Q1 look at the red aarow. This vac line is for the twin scroll actuator. It is needed.
Q2 Put the TMIC back on like normal. You are talking about the lines right above the UIM on the ic right?
Q2 Put the TMIC back on like normal. You are talking about the lines right above the UIM on the ic right?
#4
shhhhhhhh*PSH
Thread Starter
Join Date: Jul 2007
Location: St. Mary's County -- MD.
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
#7
shhhhhhhh*PSH
Thread Starter
Join Date: Jul 2007
Location: St. Mary's County -- MD.
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
I didn't. But, I'm waiting for my block off plates to come in before I put the UIM back on. Once their in, I'll bolt the UIM back up. Other than the plates, I'm done under there.
One thing I wanted to do was test the injectors for leaks. I've been looking for the plug that I'm supposed to jumper so that it will only charge the fuel, but I'm having a hard time finding. Help?
I don't sorry. I got this one from this forum.
One thing I wanted to do was test the injectors for leaks. I've been looking for the plug that I'm supposed to jumper so that it will only charge the fuel, but I'm having a hard time finding. Help?
I don't sorry. I got this one from this forum.
Last edited by shoafer0; 06-01-08 at 10:58 PM.
Trending Topics
#8
If they have never been touched since the factory I would recommend you send them to a shop and have them prof cleaned.
Another thing to check is the fuel pulsation dampner. They are prone to leak on the 87-88 model. Unfortunately an s5 version is $$$$$
Another thing to check is the fuel pulsation dampner. They are prone to leak on the 87-88 model. Unfortunately an s5 version is $$$$$
#9
shhhhhhhh*PSH
Thread Starter
Join Date: Jul 2007
Location: St. Mary's County -- MD.
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
I read that the Pulsation Dampener can cause problems. I did check it. Everything seems to be in great condition.
#10
I wanna go fast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2006
Location: North Bend, WA
Posts: 378
Likes: 0
Received 0 Likes
on
0 Posts
the plug is a yellow, two prong, female connecter located by the pass. shock tower, it may be buried but its there. Mine had a black rubber boot on it.
#11
shhhhhhhh*PSH
Thread Starter
Join Date: Jul 2007
Location: St. Mary's County -- MD.
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
It must really be buried because I looked for it there for a good 5 minutes. I'll look again. Is there anything that it's close to other than the pass. shock tower that I can look for?
#12
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
https://www.rx7club.com/attachment.p...3&d=1211498671
#13
shhhhhhhh*PSH
Thread Starter
Join Date: Jul 2007
Location: St. Mary's County -- MD.
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts

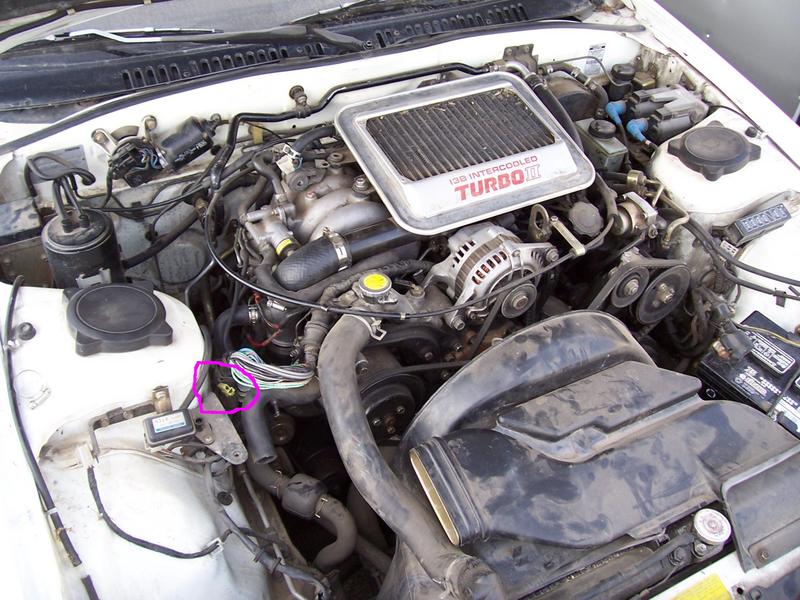

See the purple circle? It's there or close by.
https://www.rx7club.com/attachment.p...3&d=1211498671
https://www.rx7club.com/attachment.p...3&d=1211498671
Love this forum. Thanks for the help.
