usdm and jspec manifolds
i just purchased and new motor currently using his upper andlower intake manifolds, my uim would not fit onto his lower intake manifold so im using his, i cant locate the brake booster nipple on the uim, currently my brake pedal doesnt work. where would i get vacuum for the brake booster now?
eric.
eric.
#2
Haven't we ALL heard this
You can drill a hole in the UIM where it should be. Then tap it for a 3/8" barbed fitting. At least that what I am gonna do with it.
There is also a threaded plug in the LIM that you could open up and find a barbed fitting to go in there.
James
There is also a threaded plug in the LIM that you could open up and find a barbed fitting to go in there.
James
#5
Green Flameless
iTrader: (2)
Join Date: Feb 2002
Location: North Central PA
Posts: 2,242
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by kd86rx7
where does the japan car get their brake booster vacuum from then?
eric.
eric.
Okay, I honestly just don't know.
#6
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by kd86rx7
where does the japan car get their brake booster vacuum from then?
It's the big hose going over the BAC valve's rear coolant hose, into a metal line bolted to the LIM, fed by the rear secondary intake runner.
#7
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: milpitas, CA
Posts: 1,133
Likes: 0
Received 0 Likes
on
0 Posts
mines doesnt have that, ill take a picture when i get home, i have no place watsoever to put that on. i dont want to change out lim and uim and use my old ones because i dont want to touch the oil injectors and omp lines, i dont want to crack them. if thats is my only choice i guess thats what i have to do unless some one can point to me where i can get the vacuum, pics later tonight thanks
eric
eric
Trending Topics
#8
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: milpitas, CA
Posts: 1,133
Likes: 0
Received 0 Likes
on
0 Posts

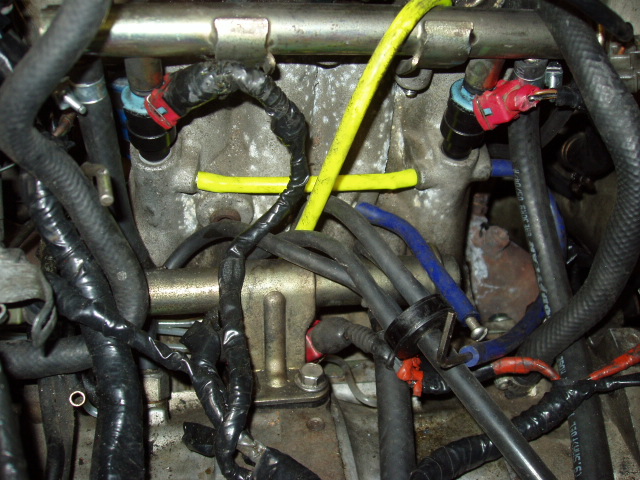

can you tell me where to hook these vac lines up? the middle yellow vac hose inbetween the two secondary injectors were connected from teh previous owner, is that correct? the other yellow vac line thats crossing it is the one tahts connected to the nipple right in between the two oil injectors, where does that go? and the other two blue hoses. where would those go? my uim intake manifold does not have any place for the brake booster like the above pic. any where else i can get vac for the brake booster?
eric.
eric.
#9
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: milpitas, CA
Posts: 1,133
Likes: 0
Received 0 Likes
on
0 Posts
http://www.rotaryresurrection.com/ro...emisremov.html
in kevin landers emission removal. he plugged off all three nipples on the back of the uim, he didnt mention this but does he cap off the nipple on the secondary fuel rail as well? mine lower intake manifold looks different from his. that link answered where the yellow hose inbetween my sec oil injectors would go, i'd just plug it, and plug also both the blue hoses location. do i just leave the yellow hose in between the secondary injectors or plug them as well?
eric
in kevin landers emission removal. he plugged off all three nipples on the back of the uim, he didnt mention this but does he cap off the nipple on the secondary fuel rail as well? mine lower intake manifold looks different from his. that link answered where the yellow hose inbetween my sec oil injectors would go, i'd just plug it, and plug also both the blue hoses location. do i just leave the yellow hose in between the secondary injectors or plug them as well?
eric
#13
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: milpitas, CA
Posts: 1,133
Likes: 0
Received 0 Likes
on
0 Posts
if i plug up all two of the nipples on teh back of the uim does tha tmean i plug up the nipple on teh secondary fuel rail as well according to kevin landers?

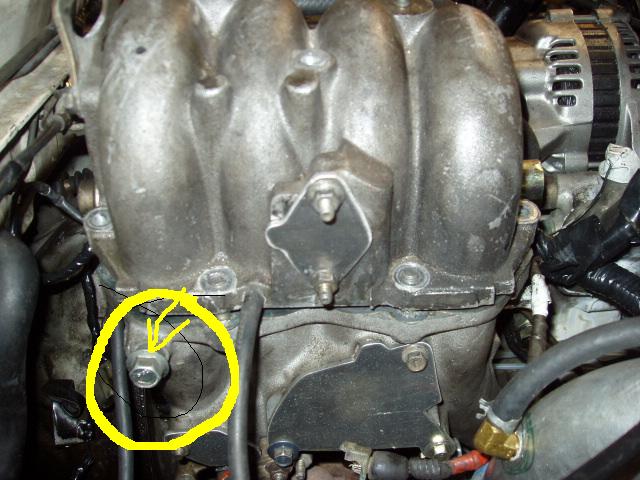

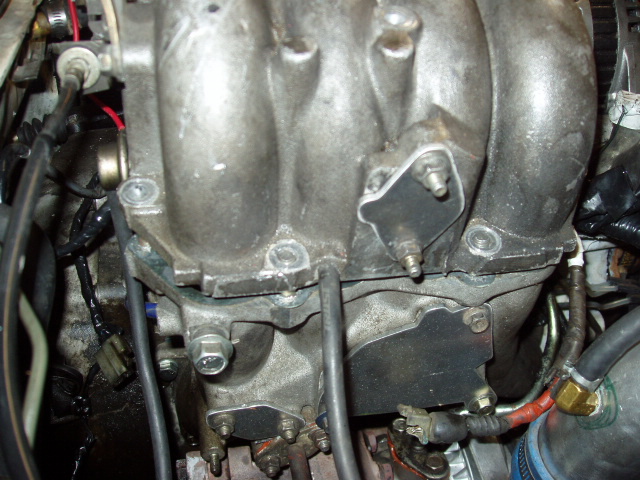

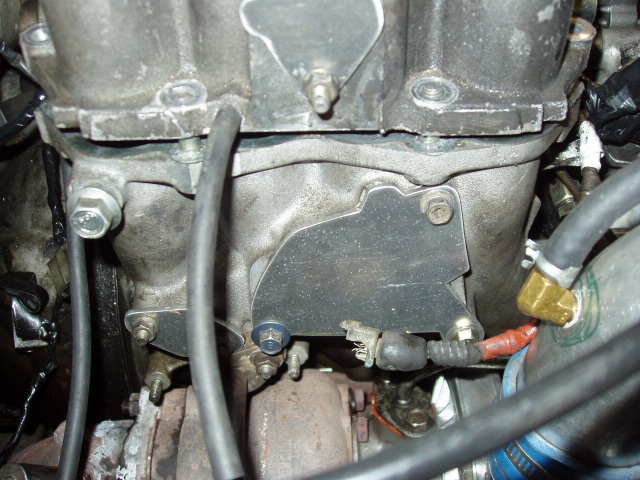

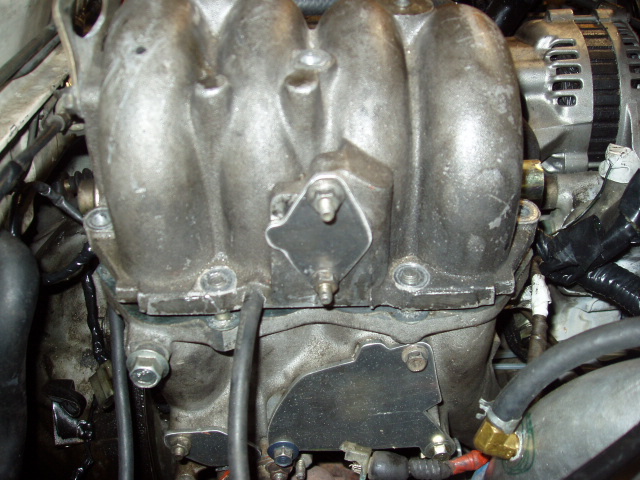

here are teh pics i dont see any place for the brake booster.
eric
here are teh pics i dont see any place for the brake booster.
eric
#19
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by kd86rx7
can you tell me where to hook these vac lines up? the middle yellow vac hose inbetween the two secondary injectors were connected from teh previous owner, is that correct?
the other yellow vac line thats crossing it is the one tahts connected to the nipple right in between the two oil injectors, where does that go?
and the other two blue hoses. where would those go?
There are three nipples on the back of the UIM. The top and bottom ones are for the injector air bleeds (it doesn't matter which one goes where), and the big nipple in the middle is for the oil nozzles air bleed. They're all fed from in front of the throttle via passages in the UIM and TB, so they're air only, not vacuum.
my uim intake manifold does not have any place for the brake booster like the above pic.
Last edited by NZConvertible; 03-03-05 at 09:44 PM.
#20
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Jul 2003
Location: milpitas, CA
Posts: 1,133
Likes: 0
Received 0 Likes
on
0 Posts
thanks for your help martin and nzconvert. ill try to get the na brake booster pipe tmr. and see if it will fit
another and probably last question unless i have problem with the brake booster pipe

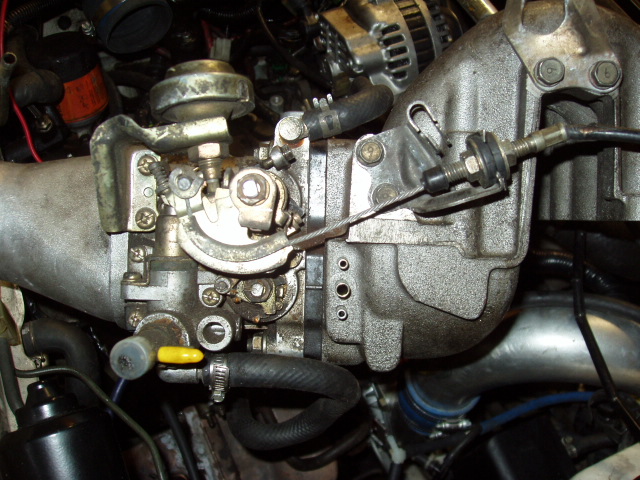

wat do i do with this( the one with the yellow cap on it)? it has two nipples on it, one is already capped off, the other had a white and green check valve or something do i tkae that out and cap it as well? it was hooked up to one of the nipples aft of the uim but now that i know where everything goes its all occupied.
another and probably last question unless i have problem with the brake booster pipe
wat do i do with this( the one with the yellow cap on it)? it has two nipples on it, one is already capped off, the other had a white and green check valve or something do i tkae that out and cap it as well? it was hooked up to one of the nipples aft of the uim but now that i know where everything goes its all occupied.
#21
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
That's the dual throttle system. The vac lines are for the part of the system that holds the secondary throttles closed until the engine warms up. If you trust yourself n ot to romp on a cold engine, you can leave it disabled.
