PhantomSky

iTrader: (4)

Doing emissions removal on a 87 turbo and just wondering what solenoid needs to be kept....if any at all..? I thought the boost pressure or twin scroll solenoid needed to be kept but is that only on 89-91? Blah, im tired and my post may be a little confused, so excuse me for that. :P

PhantomSky

iTrader: (4)

bump.

Also, the line that comes off the intake to the solenoid rack....I assume can be capped off, correct?

arghx

iTrader: (3)

the twin scroll solenoid should be kept for s4 turbos. there's not much point in removing it, it's there to improve low end torque. the s5 turbos have a different design that eliminates the twin scroll solenoid and actuator.

barnett87rx7

iTrader: (1)

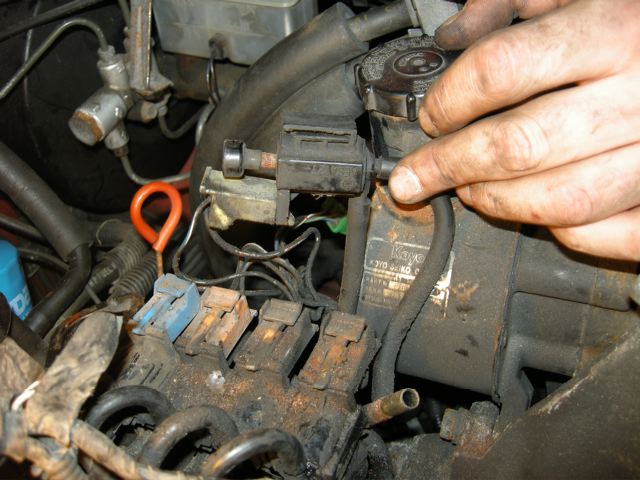

heres some pics

barnett87rx7

iTrader: (1)

you need to keep the first one (black one not the one im holding) and as shown in the diagram you need to re route the vac hose to it

PhantomSky

iTrader: (4)

alright so, the one with the black clip...correct?

mikeric

iTrader: (20)

Yes, if you are using a stock turbo setup.

barnett87rx7

iTrader: (1)

im using that setup with a bnr stage 4

thejallenator

iTrader: (14)

http://www.rotaryresurrection.com/2n...s_removal.html

PhantomSky

iTrader: (4)

Yeah, ive read that many times...along with many other guides and it mentions nothing about the solenoid, while others say you should keep the twin scroll solenoid.

JCurry

iTrader: (6)

if your not using the stock turbo dnt keep the twin scroll

coolmike711

iTrader: (7)

I got a BNR stage 2 and I got rid of the twin scroll actuator and removed the flap inside the exhaust manifold.
