Turboing 6 Port Engine ( need help)
#27
AutoX Donut Maker
![](https://www.rx7club.com/images/misc/10_year_icon.png)
I'll be doing this swap in the near future. Just waiting on the parts to get here.
I'll be using the TII UIM, LIM, and exhaust mani.. with stock S4 turbo.. all going into my 87NA with less than 40k on it with 120+ on both rotors all 3 faces...
Will it be at all possible to use my NA throttle cables? Can I put my NA TPS on the TII throttlebody? What other electrical gremlins should I worry about? I'll be using the NA harness and CPU with an SAFC. Will I need to switch out my AFM or any other electrical components for the SAFC? Boost/Pressure sensor?
I'll be using the TII UIM, LIM, and exhaust mani.. with stock S4 turbo.. all going into my 87NA with less than 40k on it with 120+ on both rotors all 3 faces...
Will it be at all possible to use my NA throttle cables? Can I put my NA TPS on the TII throttlebody? What other electrical gremlins should I worry about? I'll be using the NA harness and CPU with an SAFC. Will I need to switch out my AFM or any other electrical components for the SAFC? Boost/Pressure sensor?
#28
Super Raterhater
![](/images/misc/20_year_icon.png)
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,629
Likes: 0
Received 2 Likes
on
2 Posts
Nope, can't use the N/A cable. You can swap the TPS if you have the actual bracket that holds them.
Keep all of your electronics the same as your ECU (though I'd suggest going over to a TII setup)
Keep all of your electronics the same as your ECU (though I'd suggest going over to a TII setup)
#29
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2003
Location: Fort Worth, TX
Posts: 414
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SonicRaT
I've twisted CV's apart on the N/A driveline, broke u-joints, killed some spider gears, and a few other various things at 400whp. Really, you should get a turbo driveline if you expect to make any ammount of power that's decent.
I already bought a t2 trany, driveshaft and differential with rear axels.
#32
AutoX Donut Maker
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Originally Posted by SonicRaT
Nope, can't use the N/A cable. You can swap the TPS if you have the actual bracket that holds them.
Keep all of your electronics the same as your ECU (though I'd suggest going over to a TII setup)
Keep all of your electronics the same as your ECU (though I'd suggest going over to a TII setup)
Bummer, don't know if the TB has a throttle cable attached to it. Guess I better cross my fingers. So AFM, Boost Sensor, and TPS all stay the same. Is the oil filler pipe going to end up being in the way? Are the BAC's interchangeable?
Sorry going through the book and comparing the differences between the engines. Just looks like a few minor things might be a pain in my *** by using the TII mani's on the NA block.
Most of the swaps and write-ups fail to mention the little things that kill you in the long run. Electronics usually end up being the big one because everyone goes a different route.
I saw in Aaron's write up that he went into the oil pan with his oil return line. Was that ever proven to be a bad idea because there was no gravity pull? It would be nice if some of the links to other writeups made it into the FAQ, instead of just Aaron's.
#33
AutoX Donut Maker
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Originally Posted by stacher
I agree with sonicRat. At 320hp, my N/A tanny has held but then again I do not go above 4000 rpm from a dead stop however, my driveshaft did break on me.
I already bought a t2 trany, driveshaft and differential with rear axels.
I already bought a t2 trany, driveshaft and differential with rear axels.
Not sure what your definition of "break" is but my NA driveshaft got totally fubarred at the U-Joint with very little to no power above stock levels.
#36
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2003
Location: Fort Worth, TX
Posts: 414
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DemonicPupil
I saw in Aaron's write up that he went into the oil pan with his oil return line. Was that ever proven to be a bad idea because there was no gravity pull? It would be nice if some of the links to other writeups made it into the FAQ, instead of just Aaron's.
Originally Posted by SonicRaT

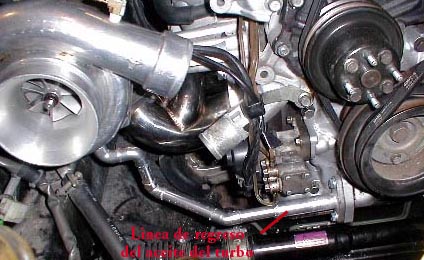

I like to drill the front cover and return it to the stock location (oil)
That is what I did.
Last edited by stacher; 02-07-06 at 12:39 AM.
#37
King of the Loop
![](https://www.rx7club.com/images/misc/15_year_icon.png)
![Arrow](https://www.rx7club.com/images/icons/icon2.gif)
I dunno if you saw this but this is the guide I was following :
http://www.teamfc3s.org/forum/showth...rbo+conversion
http://www.teamfc3s.org/forum/showth...rbo+conversion
#38
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: May 2005
Location: places
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SonicRaT
I managed 400 on stock ports with a S4 block with 200k miles on it.
#39
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
Originally Posted by DemonicPupil
I saw in Aaron's write up that he went into the oil pan with his oil return line. Was that ever proven to be a bad idea because there was no gravity pull? It would be nice if some of the links to other writeups made it into the FAQ, instead of just Aaron's.
As for more write ups...If someone puts together a good list of them, I'll add it to the FAQ.
