Turbo diagram anyone?

Does anyone have a diagram of what oil lines and radiator lines go where on a stock s4 turbo. Im talking about about the lines that go on the actual turbo. which ones are the feeding and which ones are the sending oil and coolant lines. thanks

Reply Like

04-01-09, 02:03 PM

87 t-66

not a drifter

iTrader: (133)

Join Date: Jun 2004

Location: Columbus, Ohio

Posts: 9,337

Likes: 1

Received 5 Likes on 5 Posts

top is feed, bottom is drain for the oil lines. the coolant feed is the one that goes to the LIM i believe, the other one is drain.

Reply Like

04-01-09, 02:39 PM

HAILERS

Join Date: May 2001

Location: FORT WORTH, TEXAS,USA

Posts: 20,563

Likes: 0

Received 22 Likes on 20 Posts

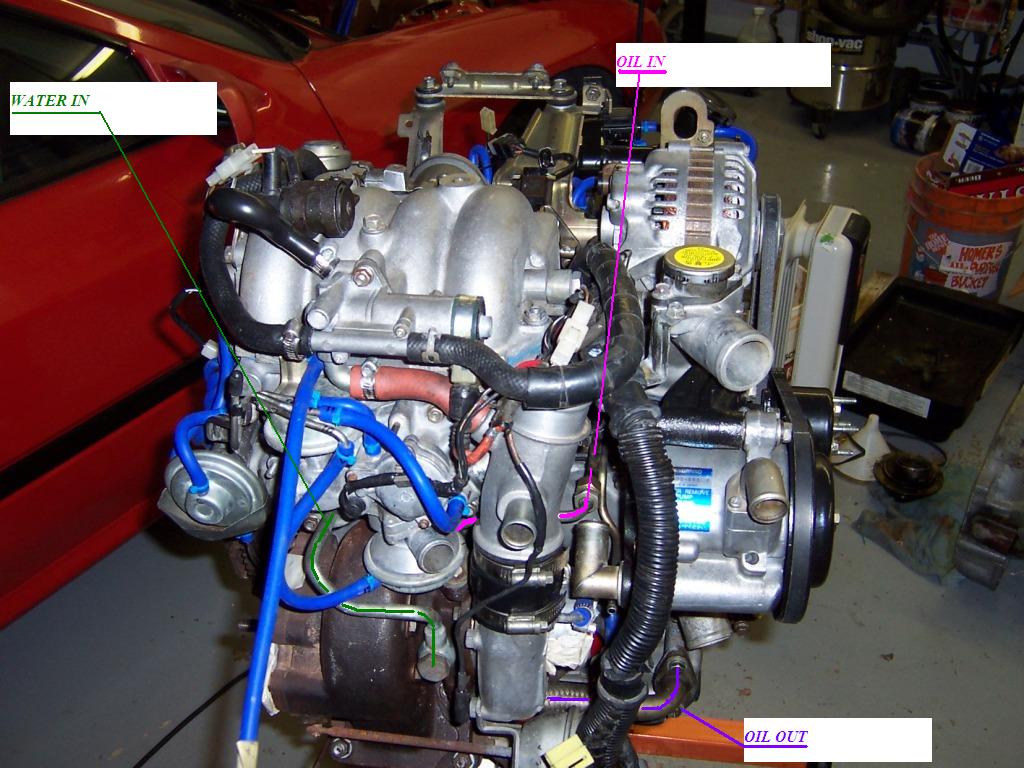

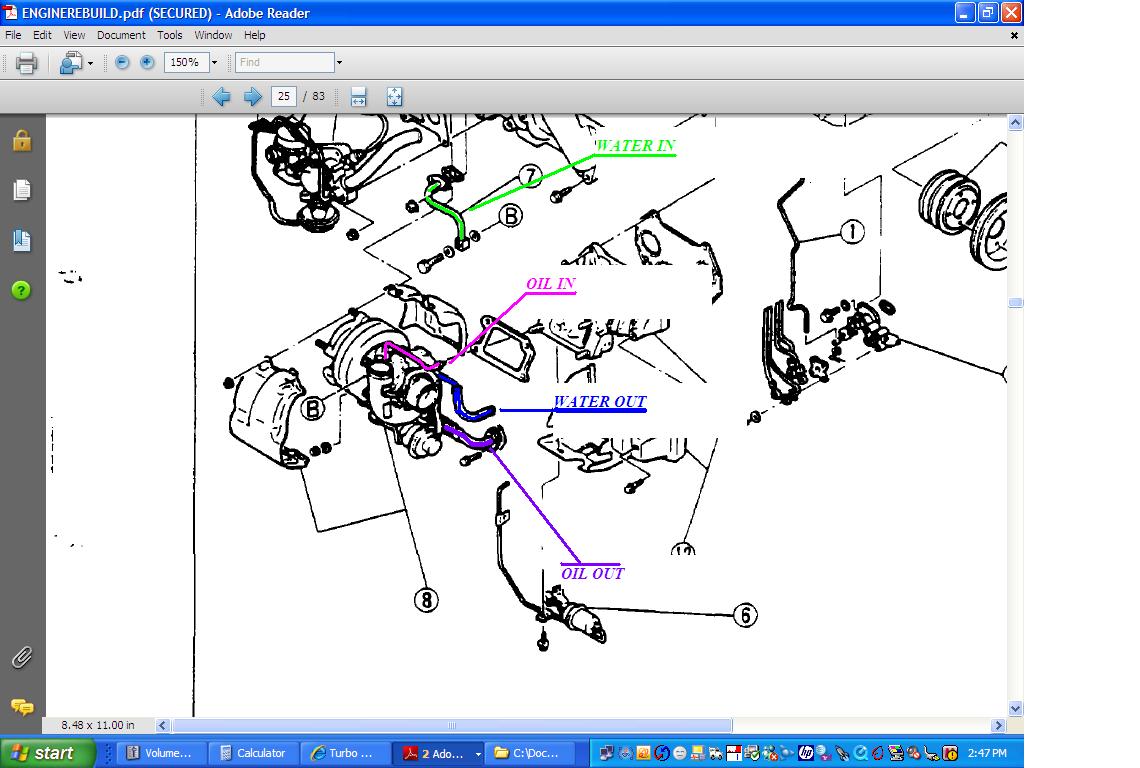

Attached Thumbnails
