turbo charger gaskets?
#1
turbo charger gaskets?
ive had a hard time understanding what gaskets i need when removing/installing a stock s4 turbo. the one thats really eluded me is at the downpipe/wastegate area.
the downpipe gasket is a circular style with 3 bolt holes. ok, got it. but every picture i see, the hot side of the turbo is an odd shape that looks like south america as a land mass.
Ive stolen a picture from aaroncake for reference. thanks for allowing the theft![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
the question is, there seems to be a plate between the turbocharger and the actual downpipe as seen in the pic. Is there a gasket between that plate and the turbo housing or is it just smashed against one another?
http://www.aaroncake.net/misc/rebuil...h%20Ported.jpg
http://www.aaroncake.net/misc/rebuil...per%20Size.jpg

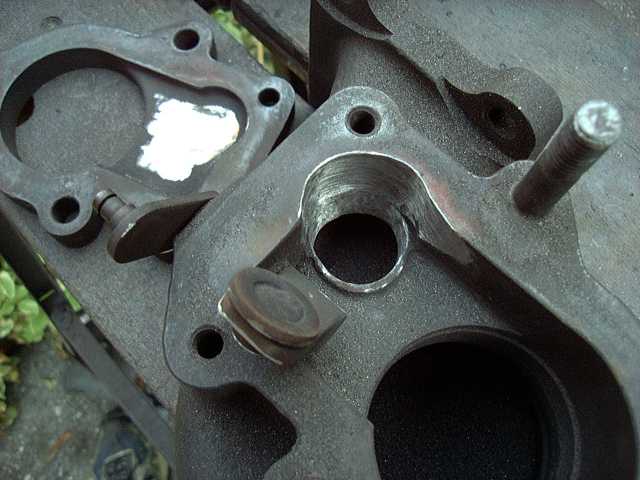

![](http://www.aaroncake.net/misc/rebuild/151%20-%20Wastegate%20Rough%20Ported.jpg)
the downpipe gasket is a circular style with 3 bolt holes. ok, got it. but every picture i see, the hot side of the turbo is an odd shape that looks like south america as a land mass.
Ive stolen a picture from aaroncake for reference. thanks for allowing the theft
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
the question is, there seems to be a plate between the turbocharger and the actual downpipe as seen in the pic. Is there a gasket between that plate and the turbo housing or is it just smashed against one another?
http://www.aaroncake.net/misc/rebuil...h%20Ported.jpg
http://www.aaroncake.net/misc/rebuil...per%20Size.jpg
![](http://www.aaroncake.net/misc/rebuild/151%20-%20Wastegate%20Rough%20Ported.jpg)
![](http://www.aaroncake.net/misc/rebuild/152%20-%20Comparison%20of%20Wastegate%20and%20Flapper%20Size.jpg)
