Sway Bars (Stabilizers)
#1
Rotary Enthusiast
![](/images/misc/20_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Sway Bars (Stabilizers)
• Anti Sway Bars •
-Tanabe Front
-Racing Beat Rear
-Racing Beat EndLinks
-KYB AGX/Some Lowering Springs
Stability & Handling Definitely nicer.
Short video clip that I took to use up my extra time.
Nothin special, & you probably won't see ****.
V_I_D_E_O
*If you don't know, click on the lower right corner of the video window (down arrow) & you can adjust the resolution to Original size or double.
If anyone wants the old TII sway bars (stabilizers) p.m. me. (maybe N/A guys?)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7256.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7264.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7241.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7254.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7252.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7258.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7261.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7267.jpg)
![](http://img.photobucket.com/albums/v247/PHiBRELiNX/Suspension/CIMG7274.jpg)

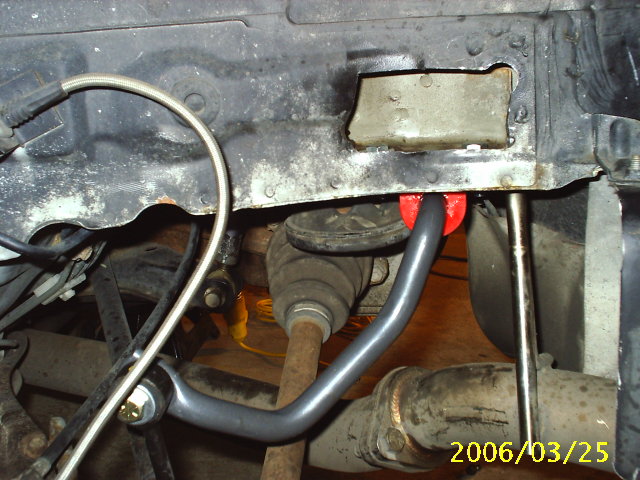

I'd suggest soaking up the areas for uninstall/installation of anti sway bars with WD40 or similar, or see pic --
(You can ask 95Nracer about that)
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/206405-sway-bars-stabilizers-swaybarinstall012.jpg)

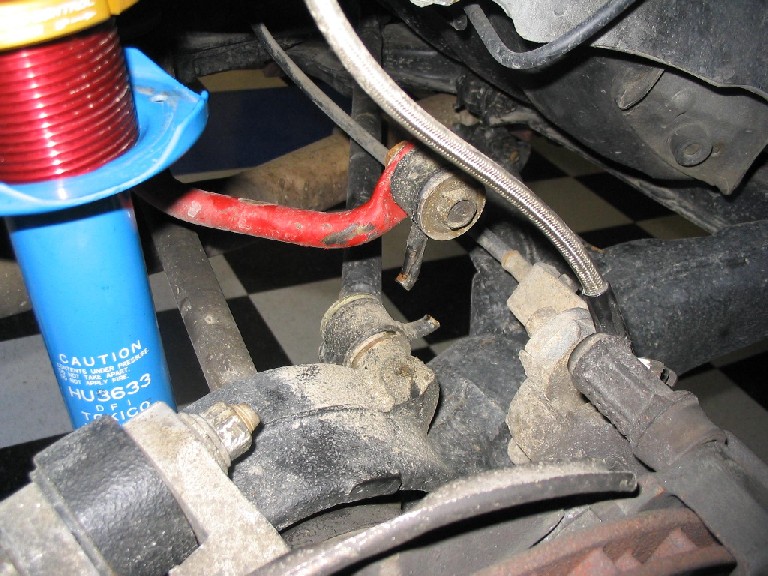

I'd also suggest using RB endlinks, or see pic --
(Using stock is like wiping your *** with your bare hand)
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/206404-sway-bars-stabilizers-brokenlink_dbgeek.jpg)
#4
Banned. I got OWNED!!!
Join Date: Aug 2006
Location: Comstock Park, MI 49321
Posts: 3,717
Likes: 0
Received 0 Likes
on
0 Posts
I plan to use the racing beat sway bars, but I was curious to get some info on how u guys like the bigger bars.
now my question is can u use the adjustable racing beat end links on both the front and rear?
now my question is can u use the adjustable racing beat end links on both the front and rear?
#5
Rotary Enthusiast
![](/images/misc/20_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CKDezines
How do you like everything? I need Swaybars for the vert and was looking at Tanabes stuff.
I definitely feel it dude, it's not like I put something and like, WTF?
Definitely a difference for me.
ST is a bit bigger than all, I think, so you can have a look at that too., but I like my Tanabe
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
Originally Posted by SpooledupRacing
I plan to use the racing beat sway bars, but I was curious to get some info on how u guys like the bigger bars.
now my question is can u use the adjustable racing beat end links on both the front and rear?
now my question is can u use the adjustable racing beat end links on both the front and rear?
Check out my pictures, they are front and rear.
Last edited by LAN; 11-16-06 at 09:19 AM.
#6
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
I like my RB sways, but the car understeers more than I would like. If I had to do it again I'd get the Eibach bars, because the rear bar is a little thicker and it's adjustable, which is a nice feature, as it gives you some choice to how the balance is.
#7
Banned. I got OWNED!!!
Join Date: Aug 2006
Location: Comstock Park, MI 49321
Posts: 3,717
Likes: 0
Received 0 Likes
on
0 Posts
I am gonna do the racing beat suspension kit (sway bars and coil springs) along with kyb gr2 or agx frt and rear struts, rb adjustabable end links, racing beat solid frt strut tower bar, some sort of rear bar, then hopefully get the bbs vert rims with some Falken Azenia tires.
anywho thx for the info on the links
anywho thx for the info on the links
Trending Topics
#8
Rotary Enthusiast
![](/images/misc/20_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Black91n/a
I like my RB sways, but the car understeers more than I would like. If I had to do it again I'd get the Eibach bars, because the rear bar is a little thicker and it's adjustable, which is a nice feature, as it gives you some choice to how the balance is.
Maybe you can adjust your dampening? idk.
I don't think rear sway bars is the only solution for understeer..
#9
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Well I've still got stock springs and shocks. According to the available information, the RB sways increase the stiffness in front a bunch more than in the rear (100% stiffer in front, 65% stiffer rear), which should increase understeer all else being equal. It's nice and safe, predictable and all that, but it just understeers more than I'd like. I'll be getting coilovers next year and I'll play around with different combinations of stock and RB sways, and maybe even ditch the rear alltogether all in search of perfect balance.
#12
Originally Posted by Black91n/a
I like my RB sways, but the car understeers more than I would like. If I had to do it again I'd get the Eibach bars, because the rear bar is a little thicker and it's adjustable, which is a nice feature, as it gives you some choice to how the balance is.
#13
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
A stiffer bar on one end will cause that end to slide first. So a larger front bar = more understeer, a larger rear bar = more oversteer.
I don't know why, but with race cars, they just seem to work best that way with the kind of spring rates they use. You can use stiff bars all around, but you need to adjust the spring rates to compensate. Having no rear bar will help with traction (accel) out of the corners, as the sways aren't transferring load away from the inside to the outside.
I don't know why, but with race cars, they just seem to work best that way with the kind of spring rates they use. You can use stiff bars all around, but you need to adjust the spring rates to compensate. Having no rear bar will help with traction (accel) out of the corners, as the sways aren't transferring load away from the inside to the outside.
#14
Senior Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Nice pictures of the install too.
Especially like the broken endlink.
A friend of mine just put new bars and links on his s14 240sx and his old links fell apart in his hands while he was taking them off.
Especially like the broken endlink.
A friend of mine just put new bars and links on his s14 240sx and his old links fell apart in his hands while he was taking them off.
#16
Rotary Enthusiast
![](/images/misc/20_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by gregk
Any reason why you went tanabe in the front and racing beat in back? Just curious. I am waiting on my racing beat sways right now. Should be here any day.
The reason is because that's all I've got
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
Yes, RB anti sway bars will be great. You might like 'em. RB endlinks too?
#17
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2003
Location: San Jose, CA
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
I think I am going to have to order some of those...although I don't have any idea the condition of my current endlinks. Probably wasted. But a guy owed me some money and the part I originally ordered was taking forever, so I decided to get some sways instead.
#19
TIME ATTACK FD
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (8)
Join Date: Feb 2006
Location: Silicon Valley, CA
Posts: 624
Likes: 0
Received 0 Likes
on
0 Posts
Sorry for bringing this back from the dead, but i just recently installed the Front Tanabe sway bar and the bar is hitting one of the bolts on the power steering rack. Also the metal couplings that came with it are kind of too big so the bar is loose when you jack up the car. Is this normal or am i doing somethnig wrong... Thanks.
#22
Just ordinary street use.I heard that using the harder bushings on the sway bar make the car act as if the car had larger sway bars but minus the cost of buying larger sway bars.I do not plan on using polyurethane for any other place such as the control arms.I think Dragon automotive also sells the rubber sway bar bushings in normal and hard if the polyurethane ones are not the way to go.And thanks for the reply.
