Sureshot wiper fix
02-08-08, 10:51 PM
#26
Former Moderator. RIP Icemark.
OK, guys don't flame me for this but I think I might have ruined another trace. I feel like such a noob because I have decent experience with soldering but for some reason I messed up a bit with this project. Once again the zero is where I think I messed up. It might be safer to show me where all the points go that way I can stop bothering you guys with my mistakes lol.
/ /
0 /
/ 0
/ /
0 /
/ 0
02-09-08, 01:57 PM
#28
I fix mine
I drill a small hole in the plastic and put an external relay with wires , 3 inches of wires and it hangs in the cluster with no problems ,plus I put a stronger relay (contacts) I try a 12 v relay didnt work and a 6 volts low consumtion did the Job.
02-09-08, 02:11 PM
#29
Yes this bored is
Doble sided with feed trhue contacs is very easy to destroy them so check with meter if has continuity if not pull the sorder and put a small bare wire on the hole and resorder.
02-09-08, 02:52 PM
#30
Full Member
Thread Starter
iTrader: (1)
Join Date: Sep 2007
Location: Enhaut, PA
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Hey Icemark would you be able to show me where the other 3 pins go just so I can find out what's going on. Now the wipers dont even move. If this doesn't fix it it I'm just gonna have to buy a remanufactured switch.
02-09-08, 10:10 PM
#31
Former Moderator. RIP Icemark.
02-10-08, 10:25 AM
#32
Full Member
Thread Starter
iTrader: (1)
Join Date: Sep 2007
Location: Enhaut, PA
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Ok, I soldered up all the leads for the relay and the wipers don't even move at all. Would the other relay for the front wipers be doing this? I'm thinkin I messed something else up and am just gonna have to get a new switch.
02-10-08, 05:20 PM
#33
Senior Member
iTrader: (1)
Join Date: Oct 2007
Location: Nova Scotia, Canada
Posts: 568
Likes: 0
Received 0 Likes
on
0 Posts

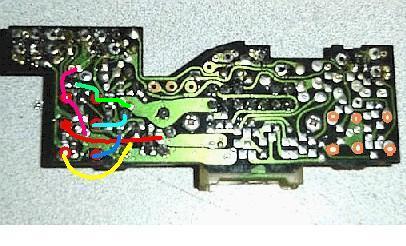

I think you missed a trace Mark. It's on that is on the component side of the board. If i'm wrong let me know and i'll take the pic down.
Here is the adjusted pic but i'd wait for Icemark to confirm before making the jumper.
Here is the adjusted pic but i'd wait for Icemark to confirm before making the jumper.
02-10-08, 05:27 PM
#34
Senior Member
iTrader: (1)
Join Date: Oct 2007
Location: Nova Scotia, Canada
Posts: 568
Likes: 0
Received 0 Likes
on
0 Posts
Just had a light bulb go on in my head so I checked what I put in my last post and there is supposed to be a connection there. if you have no continuity between thoes points jumper it.
