Stuck plugs, any tips?
Hey guys,
I'm trying to change my plugs but the hexagon part is pretty much stuck inside my engine bay. I can't reach it with any tools at all! Any ideas how I can force them out?
I'm trying to change my plugs but the hexagon part is pretty much stuck inside my engine bay. I can't reach it with any tools at all! Any ideas how I can force them out?
#4
This is my social media.
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (22)
Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes
on
0 Posts
^ DON'T DO THAT.
I think I know what you may be talking about. The round outside edge on the spark plug socket needs to ground down flat with each of the inner flat sections in the socket.
I don't have a picture to show you, so that may be a bit confusing. Other people have done this, too.
I think I know what you may be talking about. The round outside edge on the spark plug socket needs to ground down flat with each of the inner flat sections in the socket.
I don't have a picture to show you, so that may be a bit confusing. Other people have done this, too.
#5
What's the point??
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (6)
Join Date: Oct 2005
Location: Omaha, NE
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts
^ DON'T DO THAT.
I think I know what you may be talking about. The round outside edge on the spark plug socket needs to ground down flat with each of the inner flat sections in the socket.
I don't have a picture to show you, so that may be a bit confusing. Other people have done this, too.
I think I know what you may be talking about. The round outside edge on the spark plug socket needs to ground down flat with each of the inner flat sections in the socket.
I don't have a picture to show you, so that may be a bit confusing. Other people have done this, too.
#7
My local Mazda tech had a special socket that fit perfect for the plug.
If you look at the block there is a small circle that can block some plug sockets from seating completely. BEFORE you do any more damage it might be cheaper to just source this socket.
If you look at the block there is a small circle that can block some plug sockets from seating completely. BEFORE you do any more damage it might be cheaper to just source this socket.
Trending Topics
#8
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Aug 2005
Location: Onanole, Manitoba Canada
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
I use a deep socket. 3/8" drive, some cheap spark plug wrenches are too big in diameter to get into the recess, Jeep plug or RX 7 plug, same size across the flats
#9
Retired Moderator, RIP
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
http://www.racingbeat.com/RX7-1986-1...ion/11529.html
this is what the guys are talking about.See how the wall of the socket is thin?.so it will get around the Hex of the plug,past that little lip on the housing.
No,I wouldn't pay 81 bucks for a freakin socket,I would make a Thick one THINNER!(grinder time..woohoo!)
this is what the guys are talking about.See how the wall of the socket is thin?.so it will get around the Hex of the plug,past that little lip on the housing.
No,I wouldn't pay 81 bucks for a freakin socket,I would make a Thick one THINNER!(grinder time..woohoo!)
#10

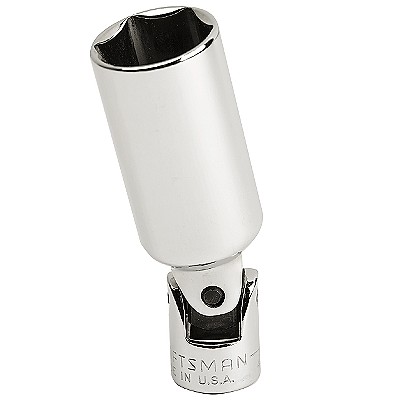

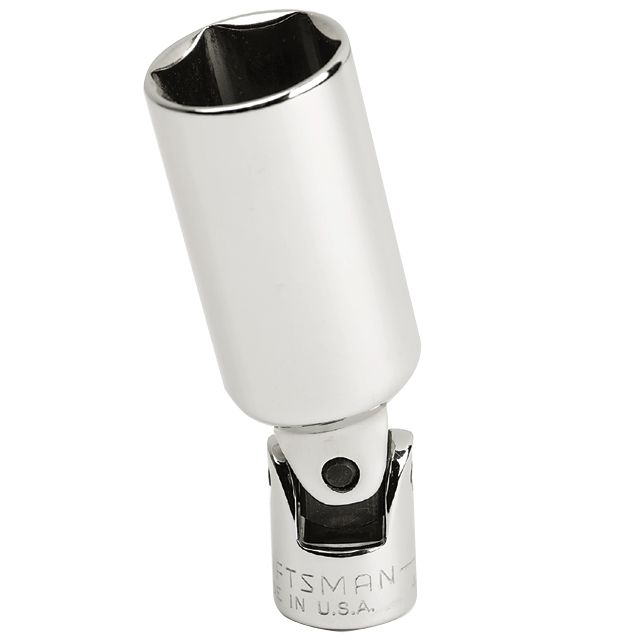

Hmm... I've never had an issue pulling spark plugs out of any rotary. I use a craftsman 13/16" swivel spark plug socket:
![](http://s.shld.net/is/image/Sears/00943323000-1?hei=400&wid=400&op_sharpen=1&qlt=90,0&resMode=sharp&op_usm=0.9,0.5,0,0)
http://www.craftsman.com/craftsman-1...&blockType=L10
http://www.craftsman.com/craftsman-1...&blockType=L10
#11
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Jan 2009
Location: cooper city, fl
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the responses guys!
I went around looking for a thin walled 13/16 deep socket but couldnt find any. I may just end up grinding one down like you suggested. Thanks a lot! I'll let you all know how it works out
http://www.racingbeat.com/RX7-1986-1...ion/11529.html
this is what the guys are talking about.See how the wall of the socket is thin?.so it will get around the Hex of the plug,past that little lip on the housing.
No,I wouldn't pay 81 bucks for a freakin socket,I would make a Thick one THINNER!(grinder time..woohoo!)
this is what the guys are talking about.See how the wall of the socket is thin?.so it will get around the Hex of the plug,past that little lip on the housing.
No,I wouldn't pay 81 bucks for a freakin socket,I would make a Thick one THINNER!(grinder time..woohoo!)
#12
Take a socket into a machine shop and have them turn down the end on a lathe.
Do you know what kind of plugs are installed currently? They're not standard NGK ones if you're having this problem.
Per Mazdatrix:
They also sell a small diameter socket, but it's $100
Do you know what kind of plugs are installed currently? They're not standard NGK ones if you're having this problem.
Per Mazdatrix:
The '81 and later rotor housings have an external ridge around the spark plug hole that prevents a conventional plug socket from being able to screw a short body plug all the way in. (The "normal" NGK plugs have a long body and do not require this tool.)
![Lol](https://www.rx7club.com/images/smilies/lol.gif)
#17
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Jan 2009
Location: cooper city, fl
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
Okay i got the old ones out and the car ran great with the new ones. but i think theres something fouling my plugs because the car is starting to misfire and run like **** again. any ideas?
#19
pull the engine out and drop it off on the previous owner's doorstep with a note attached that reads: "please use the proper spark plugs next time!"
check the old plugs to see if they have any scratch marks on the tips... i have pulled out a few where the apex seals tapped the tip of the non specific **** plugs, then do a compression test.
check the old plugs to see if they have any scratch marks on the tips... i have pulled out a few where the apex seals tapped the tip of the non specific **** plugs, then do a compression test.
#20
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Jan 2009
Location: cooper city, fl
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
My last full maintenance was a few months ago but my car has been sitting for a few months because I was at school.
I have the RB road race exhaust and the exhaust pulses on the rear rotor (I think it's the rear) are uneven and sound harsh as hell. Compression test coming up tomorrow
*keeping my fingers crossed
okay just did a poor man's compression test and got even pulses from each rotor. My new plugs were blackened when I pulled them out though. The car was running a bit rich so I'll get a new O2 sensor too.
Oh and my last plugs didn't have any scratches on them either.
I have the RB road race exhaust and the exhaust pulses on the rear rotor (I think it's the rear) are uneven and sound harsh as hell. Compression test coming up tomorrow
*keeping my fingers crossed
okay just did a poor man's compression test and got even pulses from each rotor. My new plugs were blackened when I pulled them out though. The car was running a bit rich so I'll get a new O2 sensor too.
Oh and my last plugs didn't have any scratches on them either.
Last edited by soulrider; 05-24-12 at 06:07 PM.
#21
As far as running rich, it could be a number of things. First, check fuel pressure. If you have a bad fuel pressure regulator, it could be forcing more fuel through the injectors than the ECU thinks. A bad O2 sensor is possible, but I wouldn't go throwing parts at it just yet. I've also seen people do this stupid "mod" to their airflow meters where they take off the black plastic top part and loosen the clockspring. What that does is allows the flapper door to move more freely. Their thought is that it is less restrictive. Reality kicks in and then they realize that with it being so free, it flies open at ease, causing a stupid-rich condition at all times.
Other possible causes could be, but not limited to: stuck injectors, oversized injectors, bad coolant temp sensor, or an open/short in wiring somewhere.
Other possible causes could be, but not limited to: stuck injectors, oversized injectors, bad coolant temp sensor, or an open/short in wiring somewhere.
#22
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Jan 2009
Location: cooper city, fl
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
How do I diagnose if the injectors are bad?
I unplugged both connectors for the secondary injectors and the car ran the same. Would both injectors be stuck? Although only one of my rotors seems to be running harsh...
I unplugged both connectors for the secondary injectors and the car ran the same. Would both injectors be stuck? Although only one of my rotors seems to be running harsh...
Last edited by soulrider; 05-25-12 at 06:41 PM.
#23
Secondaries don't work until after 3800 rpm. To figure out if the injectors are leaky, you'll need to pull them, zip tie them to the fuel rail, then turn the key on, and jumper the yellow connector near the AFM. That will supply full fuel pressure to the injectors, and you just watch for drip drips.
Yes, you'll have to pull the upper and middle intake manifolds off.
Yes, you'll have to pull the upper and middle intake manifolds off.
#25
This is my social media.
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (22)
Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes
on
0 Posts
^ +1 for Witch Hunter Performance
Just to add a little bit...
Strap/secure the injectors to the fuel rails. Unbolt and remove the fuel rails. (There's an illustration of this in the 88' FSM. "Fuel and Emission Control Systems" 4A-70) - Obviously you do not remove the injectors or any of the fuel lines. Be sure to set some rags or something under the injector's fuel outlet nozzle, to absorb fuel in case they are stuck open. Jumper the yellow fuel pump test connector at the passenger side strut tower, near the AFM. Turn the key to "ON"... Not to "START". You'll hear the fuel pump running... Now go check the injectors to see if they are spewing/leaking.
If you do not have a Factory Service Manual, here is a link to the 1988 FSM "Fuel and Emission Control Systems": http://foxed.ca/rx7manual/manuals/19...SYSTEMS_NA.pdf
Secondaries don't work until after 3800 rpm. To figure out if the injectors are leaky, you'll need to pull them, zip tie them to the fuel rail, then turn the key on, and jumper the yellow connector near the AFM. That will supply full fuel pressure to the injectors, and you just watch for drip drips.
Yes, you'll have to pull the upper and middle intake manifolds off.
Yes, you'll have to pull the upper and middle intake manifolds off.
Strap/secure the injectors to the fuel rails. Unbolt and remove the fuel rails. (There's an illustration of this in the 88' FSM. "Fuel and Emission Control Systems" 4A-70) - Obviously you do not remove the injectors or any of the fuel lines. Be sure to set some rags or something under the injector's fuel outlet nozzle, to absorb fuel in case they are stuck open. Jumper the yellow fuel pump test connector at the passenger side strut tower, near the AFM. Turn the key to "ON"... Not to "START". You'll hear the fuel pump running... Now go check the injectors to see if they are spewing/leaking.
If you do not have a Factory Service Manual, here is a link to the 1988 FSM "Fuel and Emission Control Systems": http://foxed.ca/rx7manual/manuals/19...SYSTEMS_NA.pdf
