Show me your n/a intake!
#26
Rotary Freak
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
I was looking at the Prelude intakes and all the ones I find are 3" in diameter which is small for almost 400CFM. According to a graph I have been using for airflow restriction, that would cause .32in H20 of restriction per foot. How restricted is this really?
From doing the math, the TB bores equal out ot be 3.076" ID without the shafts. With the shaft it would be around 2.616" ID. 2.75" is around .40in H20 of restriction per foot.
The intake tubing im going with is 3.25 ID, 3.50 OD which is the same ID as the elbow. Which would have about .18in H20 per foot
Once I can eliminate the AFM the largest restriction will be eliminated. Im just wondering how small is to small.
From doing the math, the TB bores equal out ot be 3.076" ID without the shafts. With the shaft it would be around 2.616" ID. 2.75" is around .40in H20 of restriction per foot.
The intake tubing im going with is 3.25 ID, 3.50 OD which is the same ID as the elbow. Which would have about .18in H20 per foot
Once I can eliminate the AFM the largest restriction will be eliminated. Im just wondering how small is to small.
#27
well, smaller than stock is too small. If you go with the same diameter as the elbow you should be ok but this is now beyond my scope of knowledge ( this is the reason I have not replaced my NA intake with the 3" pipes I used for My turbo TID.)
#30
Rotary Freak
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
Im making a CAI. Moving te AFM closer to the TB and putting the filter behind the front bumper. It would be better to have the filter closer to the TB. Unfortunatly I can't do that unless I found a way to seal the filter some how and have it ducted to outside.

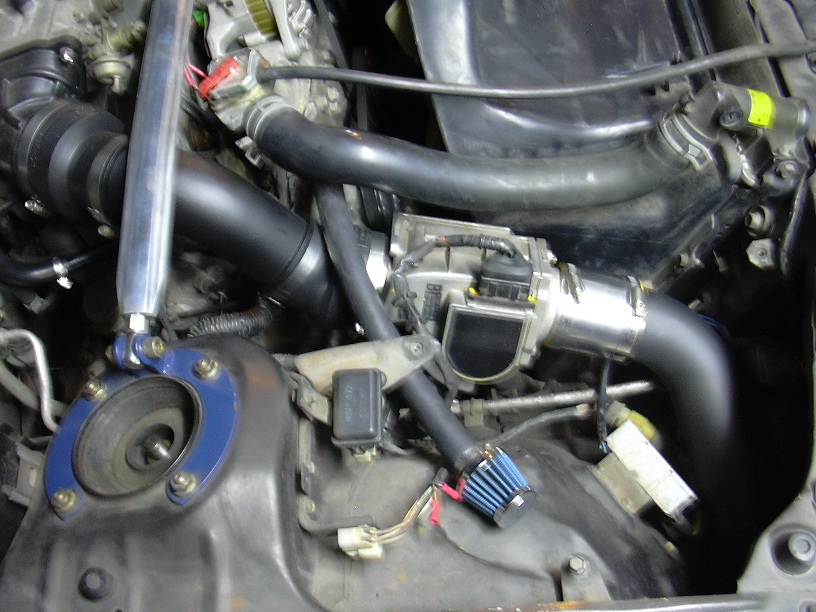

I looked at that last pic and it actually looks like 2.5" OD piping since the output side of the AFM is a little less then 3" OD.
I looked at that last pic and it actually looks like 2.5" OD piping since the output side of the AFM is a little less then 3" OD.
#40
Rotary Freak
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts

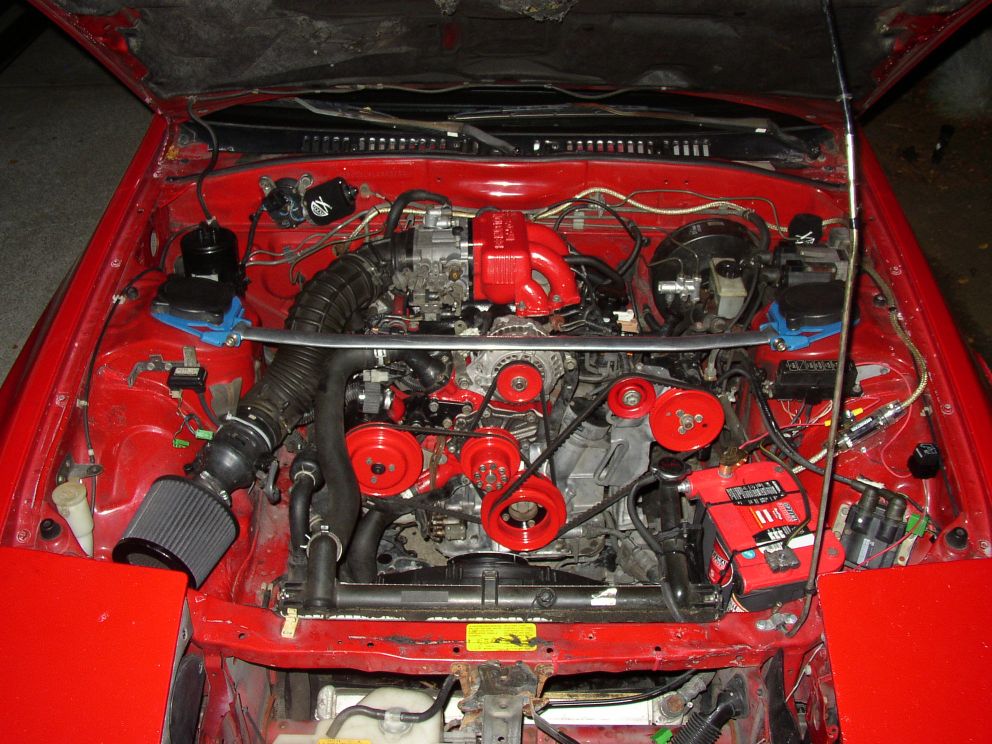

This thread has a lot of examples of how NOT to build an intake. Placing a cone filter in the engine bay with no shielding will make you LOOSE power. Do it right or keep the stock intake system.
I read some where that every 10 degrees of IAT is about 10hp loose?
I read some where that every 10 degrees of IAT is about 10hp loose?
#41
sounds right. If you make a nice box you will see the hp increase. Or you can route the pipes to a fresh air area like the guy who JUST posted (mali FC).
My question is: will the restrictions of the bends nullify the gains made by the cold air intake ?
My question is: will the restrictions of the bends nullify the gains made by the cold air intake ?
#42
oops......speed bump....
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Oct 2003
Location: los angeles
Posts: 390
Likes: 0
Received 0 Likes
on
0 Posts

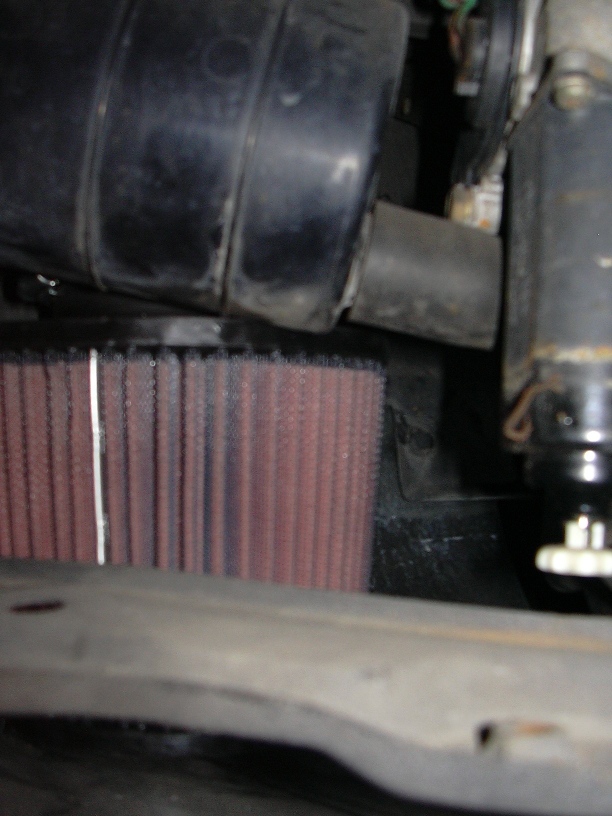

....but if you install your air filter to be under the right front panel (away from the heat from the engine) it will be the same as having the heat shield installed.
#43
oops......speed bump....
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Oct 2003
Location: los angeles
Posts: 390
Likes: 0
Received 0 Likes
on
0 Posts
#45
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (2)
Join Date: May 2003
Location: Ohio
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
why is it all non turbo custom intakes are using home depot couplers looks retarded. when i do this in the winter time i am taking my sweet old time making it. All that custom work and the filter exposed to the heat equals no gain. I did that on my gxl for a while and felt like crap.
#46
Rotary Freak
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
....but if you install your air filter to be under the right front panel (away from the heat from the engine) it will be the same as having the heat shield installed.
Run a filter in the corner of the bay for a year, then put the filter out of the engine bay. Notice I didn't say make a cold air box because its hard to get them to seal 100% so the still leak hot engine bay air.
If you are talking about where you have the filter, then yes you are right.
My question is: will the restrictions of the bends nullify the gains made by the cold air intake ?
why is it all non turbo custom intakes are using home depot couplers looks retarded. when i do this in the winter time i am taking my sweet old time making it. All that custom work and the filter exposed to the heat equals no gain. I did that on my gxl for a while and felt like crap.
#47
oops......speed bump....
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Oct 2003
Location: los angeles
Posts: 390
Likes: 0
Received 0 Likes
on
0 Posts
why is it all non turbo custom intakes are using home depot couplers looks retarded. when i do this in the winter time i am taking my sweet old time making it. All that custom work and the filter exposed to the heat equals no gain. I did that on my gxl for a while and felt like crap.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#49
oops......speed bump....
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Oct 2003
Location: los angeles
Posts: 390
Likes: 0
Received 0 Likes
on
0 Posts
...Run a filter in the corner of the bay for a year, then put the filter out of the engine bay. Notice I didn't say make a cold air box because its hard to get them to seal 100% so the still leak hot engine bay air.
If you are talking about where you have the filter, then yes you are right.
If you are talking about where you have the filter, then yes you are right.
There was a thread a while back about this set-up. I don't remember who has posted it ....
![Frown](https://www.rx7club.com/images/smilies/frown.gif)
not much, unless you've changed your exhaust including your headers -
