S5 TII Throttle Body Question
Does anyone have a pic of the vacuum lines on the throttle body and where they go. I have forgotten over the last 7 months my car has been apart and I guessed. Thinking I guessed wrong. Plus, I have a very high idle after my Turbo Upgrade. Anyone, Please help. Idles at 3K. Check my pics for my mods.

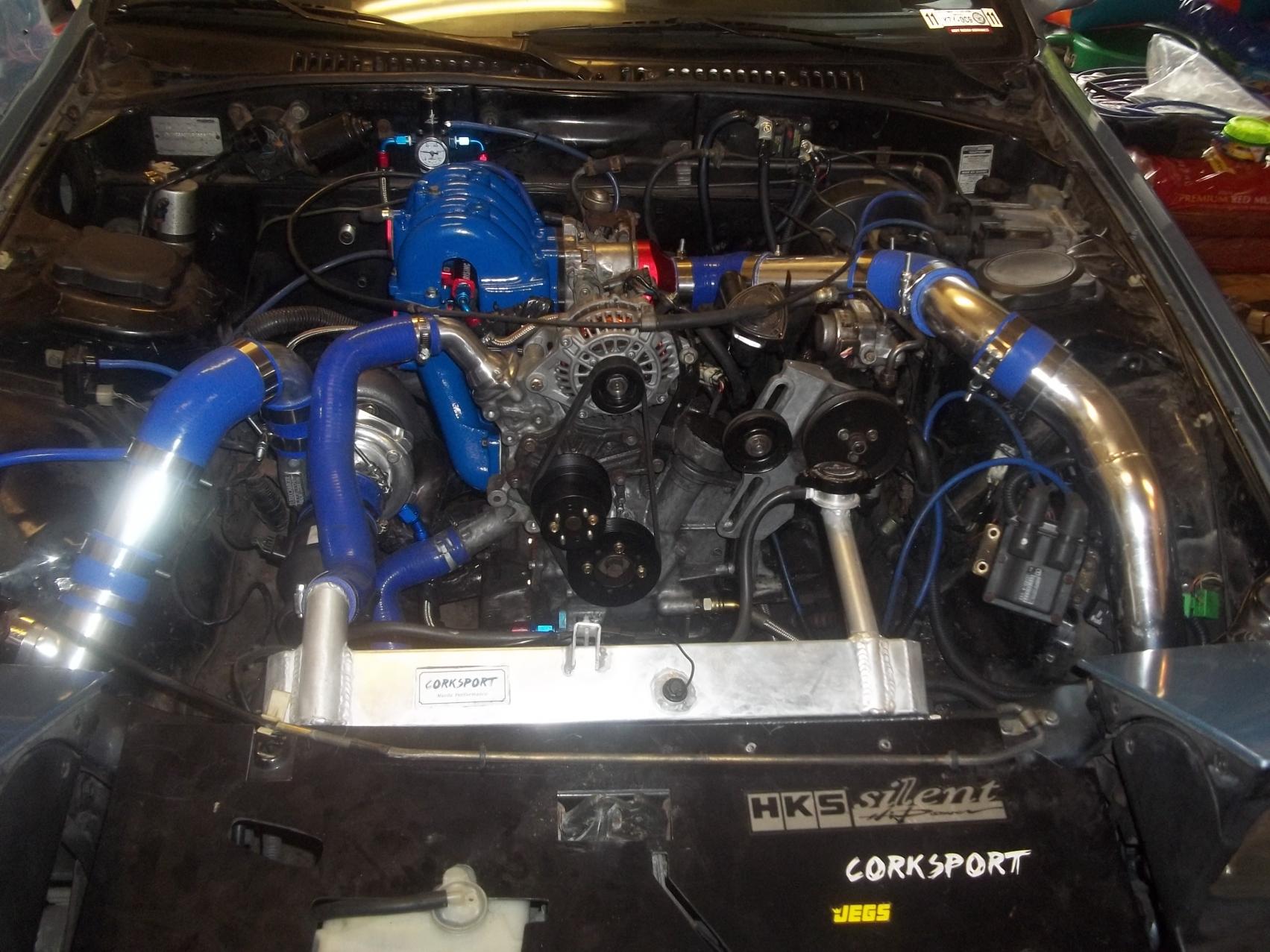

Here is a pic of the engine bay and Turbo.

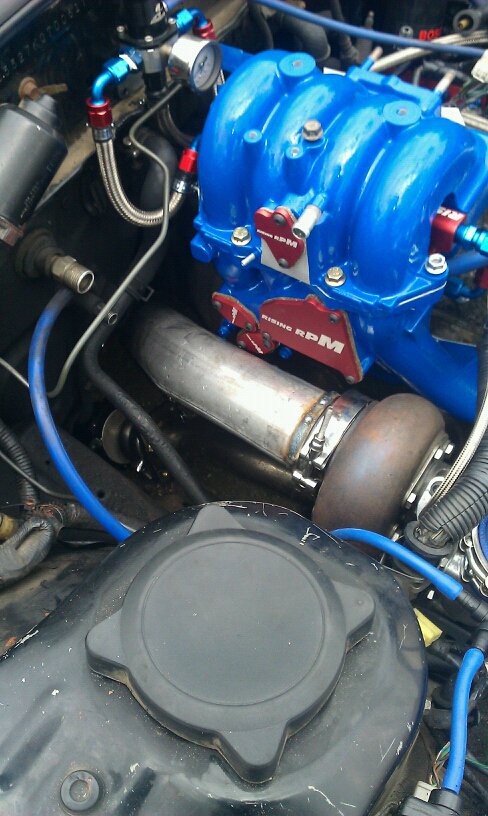

Here is a pic of the engine bay and Turbo.
#2
RX7Racer46
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Mar 2006
Location: Bremerton, WA
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Its ok not to help with the high idle. I really just need to figure out vacuum lines. Please, if anyone has a pic of the throttle body, send it to me.
#4
RX7Racer46
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Mar 2006
Location: Bremerton, WA
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts

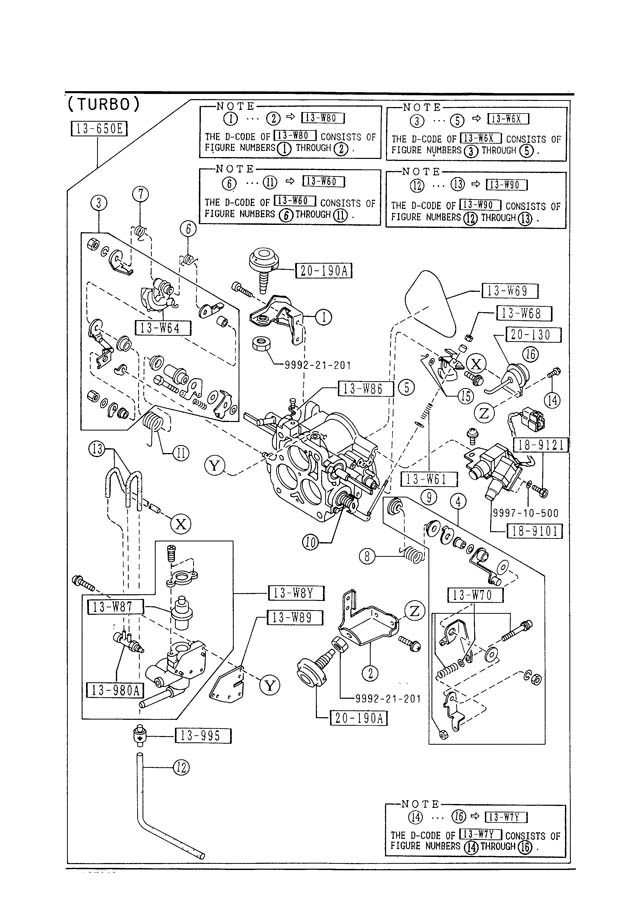

Hey, got the answer. Just kept searching the web for the answer and eventually found it. Thanks me, and the web. Lol. But just in case anyone has a problem with their TB in the future here is the diagram for the 89-91 T2 TB
#5
Retired Moderator, RIP
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
The Throttle body spacer actually connects the vacuum nipples of the Upper manifold so it can get the hose their vacuum.
So just for future reference,Do not get rid of the TB spacer!..you will have Zero vacuum at the Vac nipples.
