S5 dash harness
#1
S5 dash harness
Hello,
I am doing a S5 swap into a S4 rx7 and I need the S5 dash harness. I have been looking all over for a complete S5 dash harness and can`t find one. And I have looked on here. Does any body have one or know were I can get one.
Thanks
I am doing a S5 swap into a S4 rx7 and I need the S5 dash harness. I have been looking all over for a complete S5 dash harness and can`t find one. And I have looked on here. Does any body have one or know were I can get one.
Thanks
#4
The EM or emissions harness has the fuel injector plugs etc and fits on the engine. It comes into the cabin and attaches to the Front harness and ECU.
The Front harness(red) runs from the passengers side to the drivers side........enters the engine bay and runs fwd to the radiator area and over to the right side of the engine bay. It also connects to the Instrument harness (yellow)and the engine harness (blue) on the left side of the engine bay.
Engine harness runs on the left side of the engine bay and connects to the Front harness.

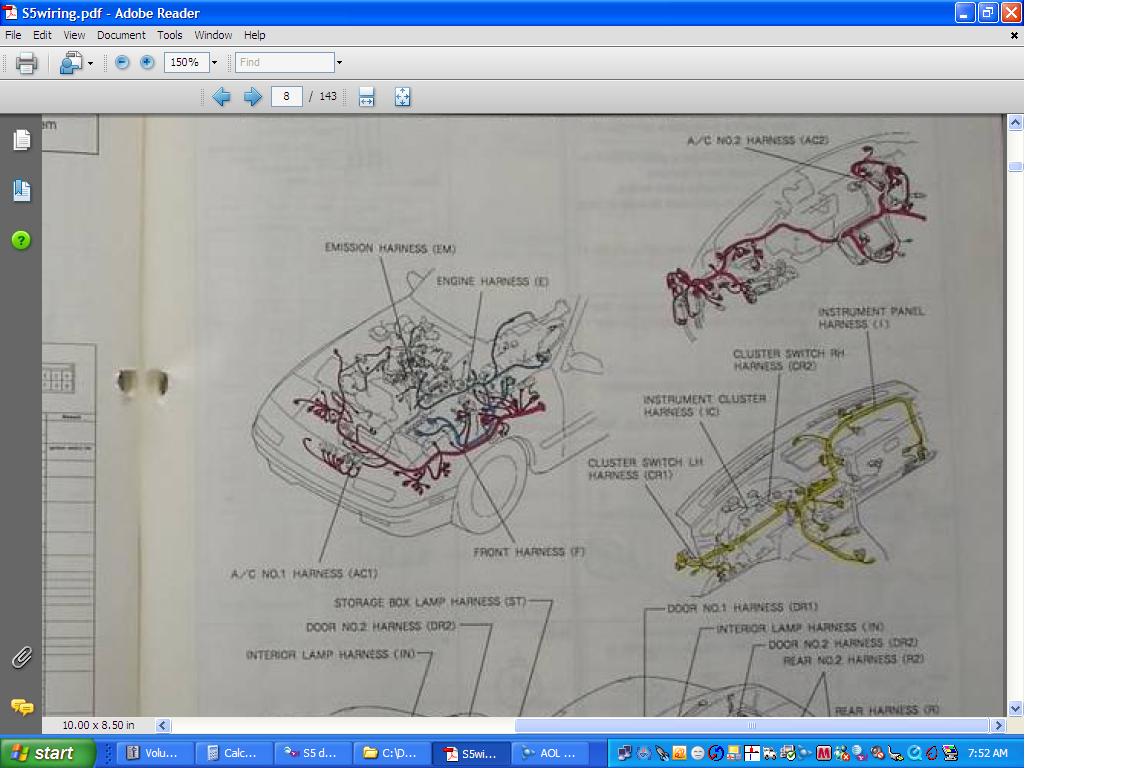

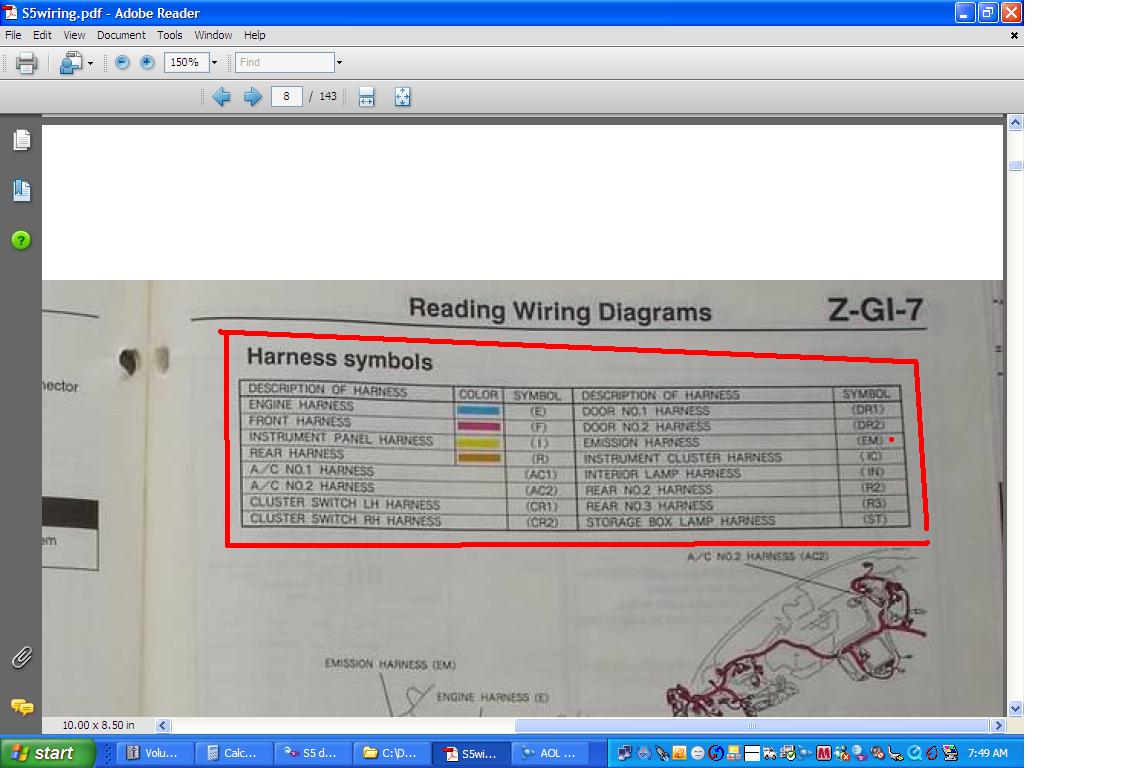

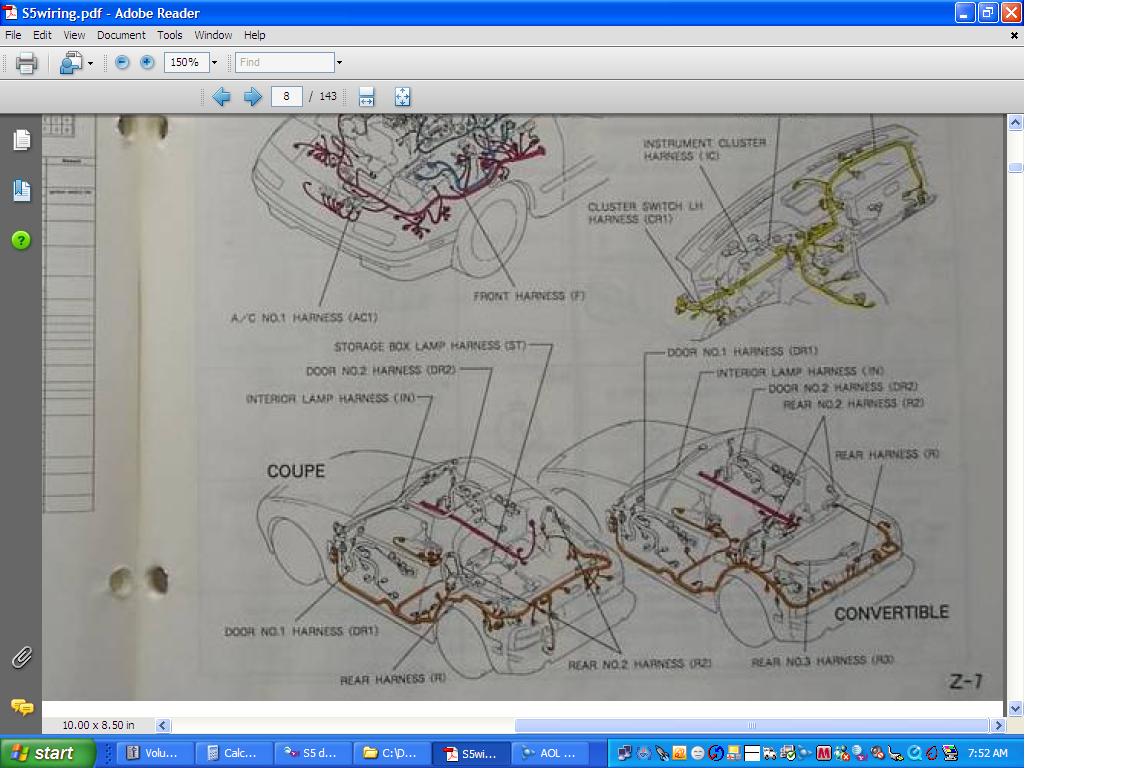

Look at the jpg and select a harness that your interested in. The harness are color coded as shown in the first jpg.
The Front harness(red) runs from the passengers side to the drivers side........enters the engine bay and runs fwd to the radiator area and over to the right side of the engine bay. It also connects to the Instrument harness (yellow)and the engine harness (blue) on the left side of the engine bay.
Engine harness runs on the left side of the engine bay and connects to the Front harness.
Look at the jpg and select a harness that your interested in. The harness are color coded as shown in the first jpg.
