s4 or s5 Radiator ?
#1
Backyard Mechanic
Thread Starter
s4 or s5 Radiator ?
Which should I purchase a s4 or s5 Radiator ?
I have a s4 body with a s5 engine. I'm not 100% sure if the holes are the same to mount the radiator or not or if the temp sensor is the same.
I'm looking at Koyo radiator if I have to get a s4 one or a GodSpeed if I need a s5.
Thanks for any feedback
I have a s4 body with a s5 engine. I'm not 100% sure if the holes are the same to mount the radiator or not or if the temp sensor is the same.
I'm looking at Koyo radiator if I have to get a s4 one or a GodSpeed if I need a s5.
Thanks for any feedback
#2
Cake or Death?
iTrader: (2)
The chassis mounts for the radiator are the same between S4 and S5, so either rad will fit your car.
The Godspeed part requires that you reuse your OEM rad mount brackets and it will only accept the S5 ones.
If you have an S4 rad in there now, those brackets wouldn't work...although I suspect they could be modded to suit, I haven't done it personally.
The Godspeed allows for use of the water level sensor but has no provision for a temp sensor (if you need one).
The Godspeed part requires that you reuse your OEM rad mount brackets and it will only accept the S5 ones.
If you have an S4 rad in there now, those brackets wouldn't work...although I suspect they could be modded to suit, I haven't done it personally.
The Godspeed allows for use of the water level sensor but has no provision for a temp sensor (if you need one).
#3
Backyard Mechanic
Thread Starter
I'll just go with a s4 Koyo then, as long as it's not bad for the engine or anything to cross the series of radiators with the engines.
I do notice that the dimensions of the Koyo aluminum radiators are slightly different between s4 and s5.
I do notice that the dimensions of the Koyo aluminum radiators are slightly different between s4 and s5.
#5
S5 T2
iTrader: (6)
Avoid the godspeed ones at all costs. All the ones being sold on Ebay now are complete garbage. Welds look like thumbless children ran them in the dark, bent cores, wrong sized fitting holes, terrible water line connections, etc.. I ordered (4), all from different vendors, and they were all junk.
I finally sprang for a koyo. There's certainly better out there than koyo as well, but you'll spend more cash on them.
I finally sprang for a koyo. There's certainly better out there than koyo as well, but you'll spend more cash on them.
#6
Sharp Claws
iTrader: (30)
The chassis mounts for the radiator are the same between S4 and S5, so either rad will fit your car.
The Godspeed part requires that you reuse your OEM rad mount brackets and it will only accept the S5 ones.
If you have an S4 rad in there now, those brackets wouldn't work...although I suspect they could be modded to suit, I haven't done it personally.
The Godspeed allows for use of the water level sensor but has no provision for a temp sensor (if you need one).
The Godspeed part requires that you reuse your OEM rad mount brackets and it will only accept the S5 ones.
If you have an S4 rad in there now, those brackets wouldn't work...although I suspect they could be modded to suit, I haven't done it personally.
The Godspeed allows for use of the water level sensor but has no provision for a temp sensor (if you need one).
i prefer the series 4 radiators even in series 5 cars, the S5 filler neck is a horrible design and can stress crack if you lean on it accidentally. had one car come in that had a bad connection at the radiator with a S5 aftermarket brass radiator and it was brand new.
Trending Topics
#8
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
The stock radiator is one of the few pieces of junk that Mazda put on these cars. While the stock radiator in good shape may cool a stock engine just fine, the cheap plastic end tanks crack with age and stress.
#11
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
I have never heard of a Koyo radiator only lasting a year. However, if it did develop a leak, you could at least weld it. If you race your car in a severe manner that would tend to cause cracks, then you would be better off with a radiator specifically designed for off-road use, such as those by Ron Davis or Griffin. The popular Koyo and Fluidyne drop-in radiators are designed more for steet cars.
#12
Sharp Claws
iTrader: (30)
I have never heard of a Koyo radiator only lasting a year. However, if it did develop a leak, you could at least weld it. If you race your car in a severe manner that would tend to cause cracks, then you would be better off with a radiator specifically designed for off-road use, such as those by Ron Davis or Griffin. The popular Koyo and Fluidyne drop-in radiators are designed more for steet cars.
most shops won't attempt to weld them, they're far too thin.
Last edited by RotaryEvolution; 11-28-11 at 01:38 PM.
#13
Senior Member
iTrader: (7)
Join Date: Dec 2008
Location: WNC
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
very simple/cheap to do
I have had a godspeed radiator for a little over 3 years now,
Never any issues with it, quality welds, no bent finds, just a nice oversized aluminum radiator. Has kept my turbo vert cool (highest the car has ever seen is 190) during many Florida summer drift/track days
I actually decided to buy it because my factory s5 radiator filler neck broke off, twice.
I suspect whichever you buy will serve the needs of your car just fine.
#14
S5 T2
iTrader: (6)
^^ I should have pointed out that it seems to me that the older Godspeeds were better (hence why I tried four times). But order one now, and trust me, it's a complete pile of pooey. I'm assuming the manufacturer changed, or the Godspeed label became more "laxed". But none of the rads I ordered EVER looked like the photos that were posted.
#15
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 9 Likes
on
9 Posts
Been running Koyo's in all three of my Verts for 6+ years, never an issue. Conversley, they were installed to replace stock units that were weaping at the seams of the tanks.
One more point.
It's been advised in a BUNCH of other threads, so perhaps redundant to repeat. But to avoid a bunch of grinding modification to compensate, you need the stock radiator brackets from an S5 to mount an S5 Koyo, and stock S4 brackets to mount a S4 Koyo.
#16
Senior Member
iTrader: (7)
Join Date: Dec 2008
Location: WNC
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
^^ I should have pointed out that it seems to me that the older Godspeeds were better (hence why I tried four times). But order one now, and trust me, it's a complete pile of pooey. I'm assuming the manufacturer changed, or the Godspeed label became more "laxed". But none of the rads I ordered EVER looked like the photos that were posted.
I've found ebay/online vendors often sell products they claim are godspeed products, but you end up with a non-branded quality control nightmare ntercooler or radiator when you end up getting them. Has happened to me a few times with intercoolers.
#17
S5 T2
iTrader: (6)
^^ A good point. Every single one was an Ebay purchase. I had debated on trying the website on the fifth try, but was so angry and frustrated that I just went Koyo.
The ebay auctions used photos from Godspeed's website with the godspeed water mark and everything. Even used Godspeed part numbers. Looked pretty legit, and the sellers had good ratings. Long story short, they all took the garbage rads back no problem, and refunded shipping both ways, so no money lost on my part. Just time and irritation.
The ebay auctions used photos from Godspeed's website with the godspeed water mark and everything. Even used Godspeed part numbers. Looked pretty legit, and the sellers had good ratings. Long story short, they all took the garbage rads back no problem, and refunded shipping both ways, so no money lost on my part. Just time and irritation.
#18
Sharp Claws
iTrader: (30)
^^ A good point. Every single one was an Ebay purchase. I had debated on trying the website on the fifth try, but was so angry and frustrated that I just went Koyo.
The ebay auctions used photos from Godspeed's website with the godspeed water mark and everything. Even used Godspeed part numbers. Looked pretty legit, and the sellers had good ratings. Long story short, they all took the garbage rads back no problem, and refunded shipping both ways, so no money lost on my part. Just time and irritation.
The ebay auctions used photos from Godspeed's website with the godspeed water mark and everything. Even used Godspeed part numbers. Looked pretty legit, and the sellers had good ratings. Long story short, they all took the garbage rads back no problem, and refunded shipping both ways, so no money lost on my part. Just time and irritation.
#19
S5 T2
iTrader: (6)
Who knows. I assumed/hoped out of the (4) transactions I made that I'd get something usable. I should find the photos of the crap I got... laughable. I would have been surprised if they even held water, let alone under pressure.

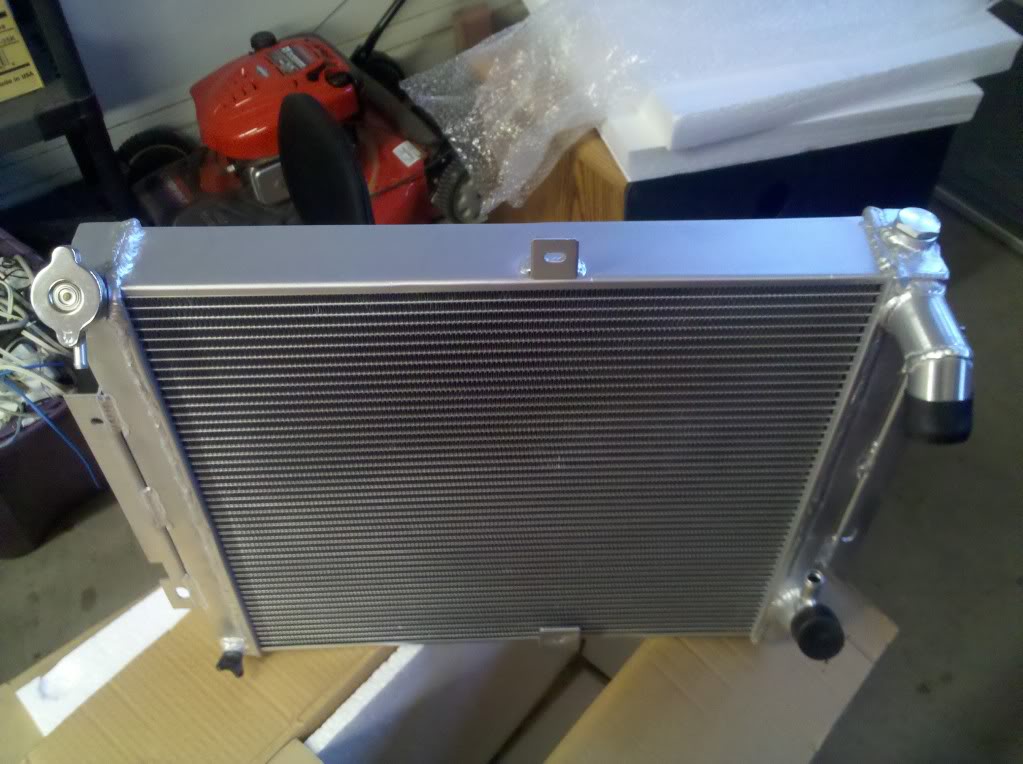

Aha, found them...

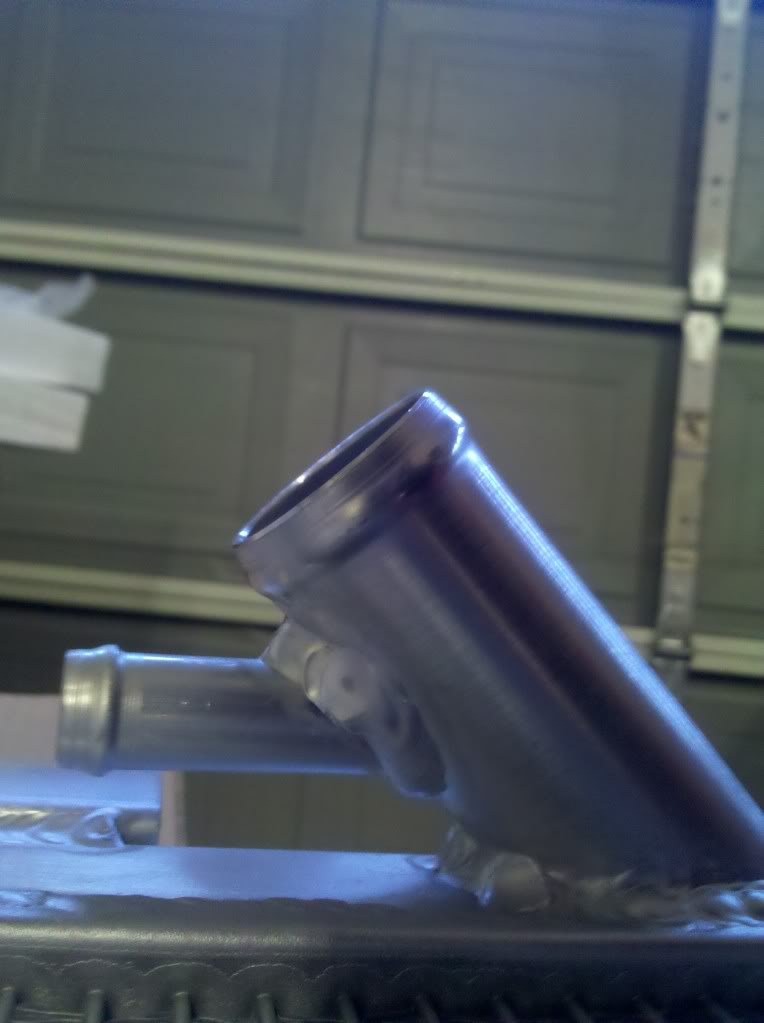

Think this would have held a hose on?

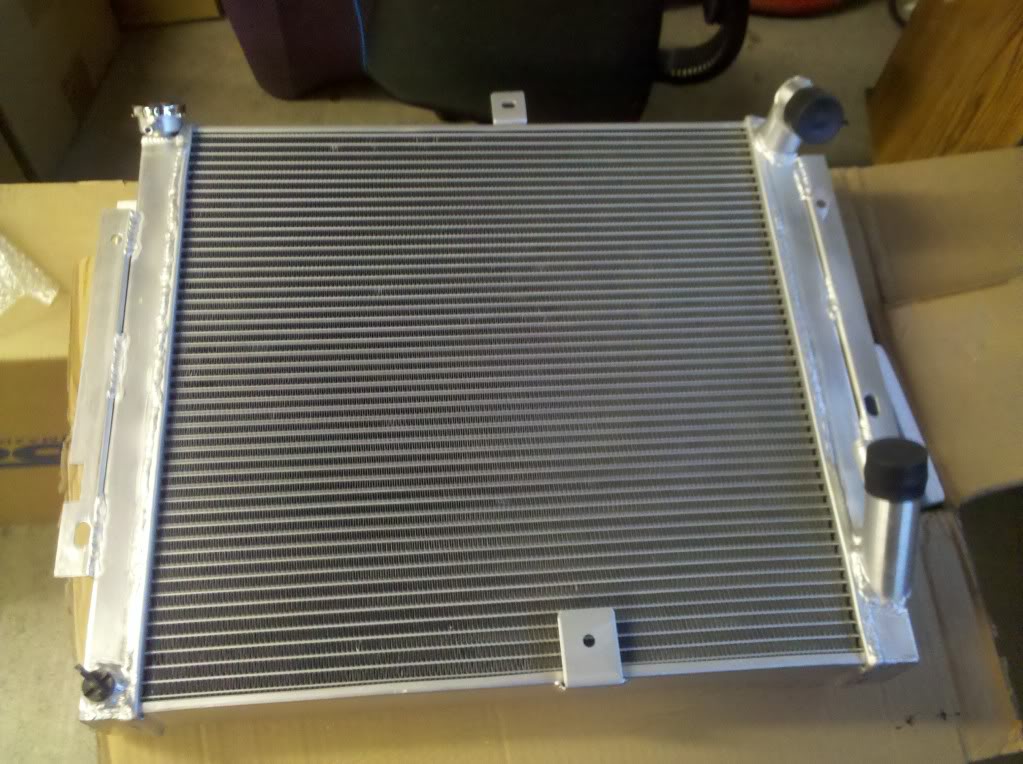

It's hard to tell in the image, but even at this size you can tell the welds are poo poo..
You can't tell in the photo, but the top is crooked, and sags. And the bung for the temp sensor is the wrong thread, which leads me to believe it's a bleeder instead (meaning you have no temp sensor)
Aha, found them...
Think this would have held a hose on?
It's hard to tell in the image, but even at this size you can tell the welds are poo poo..
You can't tell in the photo, but the top is crooked, and sags. And the bung for the temp sensor is the wrong thread, which leads me to believe it's a bleeder instead (meaning you have no temp sensor)
Last edited by Bamato; 11-28-11 at 03:30 PM.
#20
Sharp Claws
iTrader: (30)
there's the old saying "you get what you pay for", lol. which most of these chinese knockoff parts are just slapped together with no regard to quality.
they have no idea what a jig is, they just grab a pipe or bracket and weld it on wherever they feel like.
at least the cores are mass produced and seem to somewhat work for the radiators and intercoolers, the welds and geometry though, uhh no. modify the car to fit or take a hacksaw to the part.
look at the bracket on the bottom, what purpose is that supposed to serve? and what i meant by just weld **** on anywhere they feel like. you can't get a bolt through it or even a push lock plastic retainer... it will hit the core and fins.
they have no idea what a jig is, they just grab a pipe or bracket and weld it on wherever they feel like.
at least the cores are mass produced and seem to somewhat work for the radiators and intercoolers, the welds and geometry though, uhh no. modify the car to fit or take a hacksaw to the part.
look at the bracket on the bottom, what purpose is that supposed to serve? and what i meant by just weld **** on anywhere they feel like. you can't get a bolt through it or even a push lock plastic retainer... it will hit the core and fins.
Last edited by RotaryEvolution; 11-28-11 at 04:04 PM.
#23
Turbo power, activate!
iTrader: (7)
Who knows. I assumed/hoped out of the (4) transactions I made that I'd get something usable. I should find the photos of the crap I got... laughable. I would have been surprised if they even held water, let alone under pressure.
Aha, found them...
Think this would have held a hose on?
Aha, found them...
Think this would have held a hose on?
#25
Senior Member
iTrader: (7)
Join Date: Dec 2008
Location: WNC
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
That isn't even a half attempt at a Godspeed, too many parts are completely different. Filler, Heater Hose outlet, are totally different, drain is on the back instead of bottom of the radiator. The Bleeder isn't on the top of the inlet pipe, and the radiator coolant level sensor bung looks off. Not to mention those welds. Even if we could blame it on quality control, I'd say that these parts aren't from the same bin.
It does look like one a local guy ordered a godspeed after seeing mine and then was smug about saving 50-60 bucks on ebay compared to what I paid.
I've noticed that what seems to happen is that "vendors" on ebay will buy even cheaper parts and label them as Godspeed, and sell them 30-100 bucks cheaper than anyone else. (for example their "fmic kit" ranges between 389 to 450. both min/maximum prices are with free shipping)
The only consistent thing with the knockoffs are that they don't have the Godspeed embossing on the tanks.
wouldn't be surprised if someone is actually taking advantage of Godspeed's hit-miss reputation, or if they're the reason for even causing it (at least exacerbating it).
Either way, whichever you decide, search through the Vendor classifieds forum, there may be a few sales/coupons that could bring your prices down.
I'm not trying to champion the brand. Just sharing my experiences (3 intercooler cores (plus a few returned) and a few radiators.)
It does look like one a local guy ordered a godspeed after seeing mine and then was smug about saving 50-60 bucks on ebay compared to what I paid.
I've noticed that what seems to happen is that "vendors" on ebay will buy even cheaper parts and label them as Godspeed, and sell them 30-100 bucks cheaper than anyone else. (for example their "fmic kit" ranges between 389 to 450. both min/maximum prices are with free shipping)
The only consistent thing with the knockoffs are that they don't have the Godspeed embossing on the tanks.
wouldn't be surprised if someone is actually taking advantage of Godspeed's hit-miss reputation, or if they're the reason for even causing it (at least exacerbating it).
Either way, whichever you decide, search through the Vendor classifieds forum, there may be a few sales/coupons that could bring your prices down.
I'm not trying to champion the brand. Just sharing my experiences (3 intercooler cores (plus a few returned) and a few radiators.)
