Which rotor housing is this?

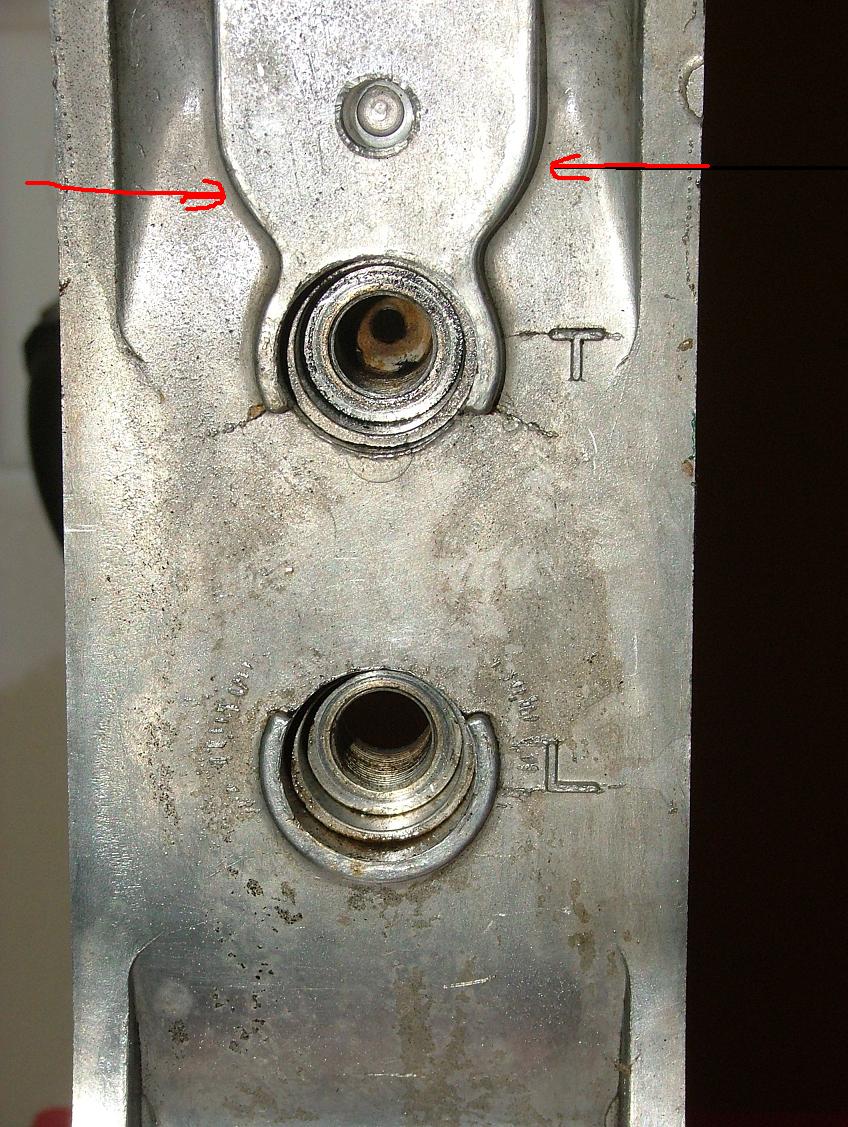

Anybody knows which housing is this from the picture? The one on left is a S5 turbo. The one on the right is a turbo also but what series is this. I have never seen this before. Look at the difference by looking at the arrows. There is a different shape above the trailing spark plug.
Maybe some of you engine builders can tell me.
Maybe some of you engine builders can tell me.
06-09-10, 12:09 PM
#7
Senior Member
Thread Starter
iTrader: (7)
Join Date: Dec 2007
Location: Illinois
Posts: 346
Likes: 0
Received 0 Likes
on
0 Posts
It's definately a turbo housing. All the S5 housings I have seen look like the one on the left in the original pictures.

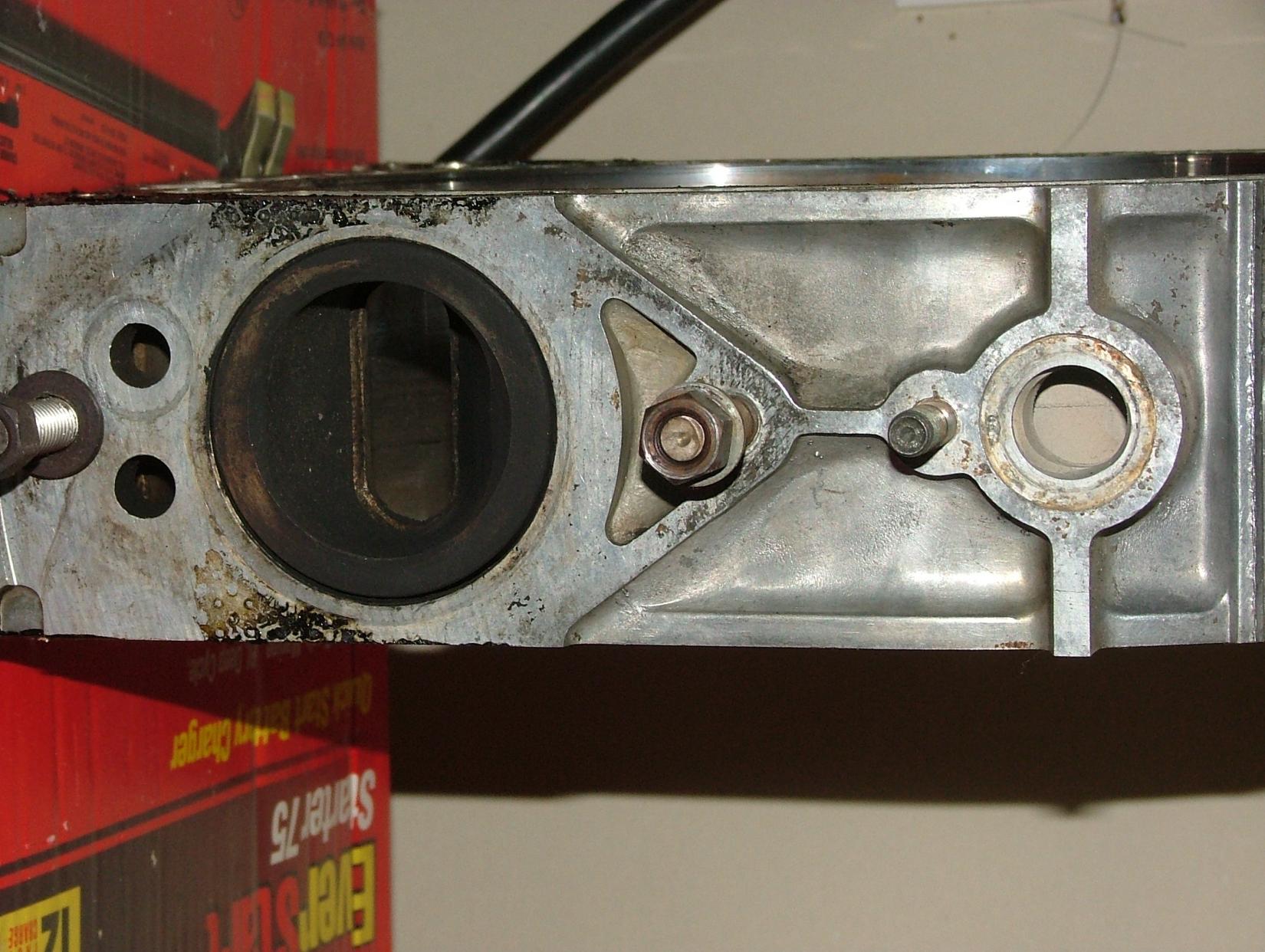

Here is a pic from the exhaust side.
I am lost with this one..
Here is a pic from the exhaust side.
I am lost with this one..
