Hi all,

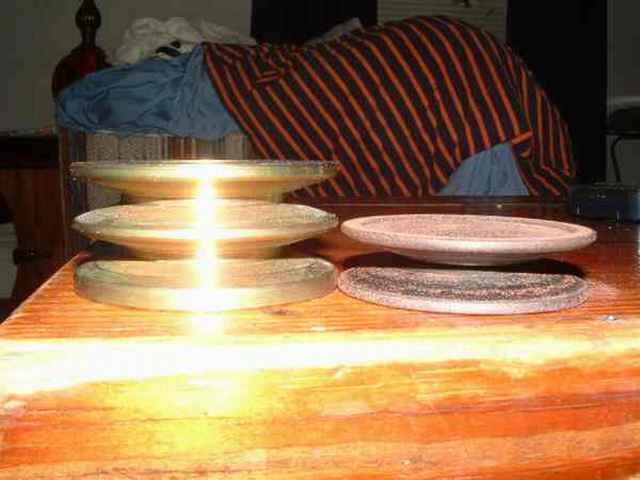

I had recently purchased a Dual-belt Alternator Pulley from Rotary Innovation. I just recieved it in the mail today (prompt shipping, btw) and when comparing it to the stock pulley I noticed right away that one of the 'humps' was almost twice as thick as the rest.
This didn't worry me much untill installation. It seems this extra thick hump in the pulley is at the back of it, so when its bolted down to the alternator, it binds up against the alt cage/bolts.
Am I doing something wrong, or did I just get a defective pulley? I'm waiting to hear back from R.I. on the matter..
edit, can't attach the pic, won't let me post it in img tags... so here's link:
http://www.turboforum.net/forums/alb...hp?pic_id=1752
I had recently purchased a Dual-belt Alternator Pulley from Rotary Innovation. I just recieved it in the mail today (prompt shipping, btw) and when comparing it to the stock pulley I noticed right away that one of the 'humps' was almost twice as thick as the rest.
This didn't worry me much untill installation. It seems this extra thick hump in the pulley is at the back of it, so when its bolted down to the alternator, it binds up against the alt cage/bolts.
Am I doing something wrong, or did I just get a defective pulley? I'm waiting to hear back from R.I. on the matter..
edit, can't attach the pic, won't let me post it in img tags... so here's link:
http://www.turboforum.net/forums/alb...hp?pic_id=1752
#2
What Subscription?
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
Sounds like you forgot to install the spacer on the shaft. Or another potential source of problem is a remanned alternator slightly out of spec on the rear case depth.

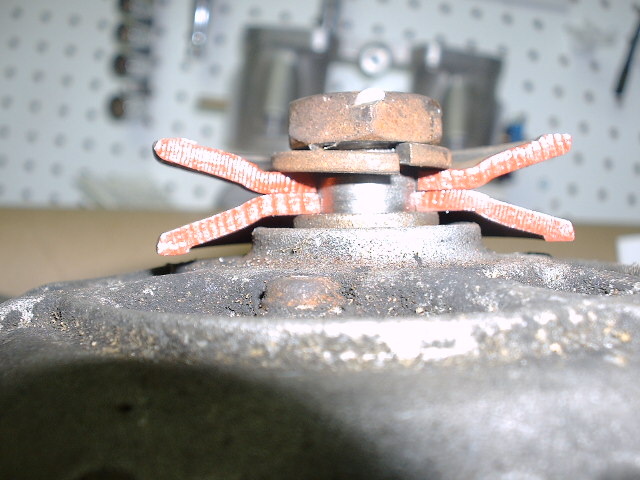

First pic shows a stock pulley, with stock spacer

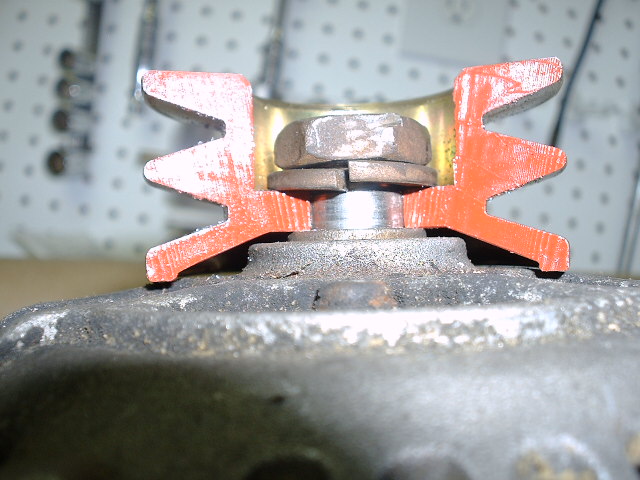

Second pic shows the ROTARY INNOVATION Dual Belt pulley on the same Alternator with the same stock spacer
I have sold over 1 thousand pullies and this is only the second report of a problem, the first one was solved with a thin shim (.003") between the spacer and the pulley.
First pic shows a stock pulley, with stock spacer
Second pic shows the ROTARY INNOVATION Dual Belt pulley on the same Alternator with the same stock spacer
I have sold over 1 thousand pullies and this is only the second report of a problem, the first one was solved with a thin shim (.003") between the spacer and the pulley.
Last edited by banzaitoyota; 07-18-05 at 07:32 PM.
#5
![Smile](https://www.rx7club.com/images/icons/icon7.gif)
i have this same pulley on my car and i believe it works fine i forget how i put the washer or whatever on there but it seems like it is fine now i know there was a really big spacer on it but i dont think i put that one on , just the washer but im not 100% as it was a few months ago, but it is working fine now at least from what i can see
Trending Topics
#8
NorCal 7's Co-founder
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Is that something you could take care of for me prior to shipping? At an additional cost of course.
Zach
P.S. Is there anything left of my FD shell at your place?
Zach
P.S. Is there anything left of my FD shell at your place?
#9
What Subscription?
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts

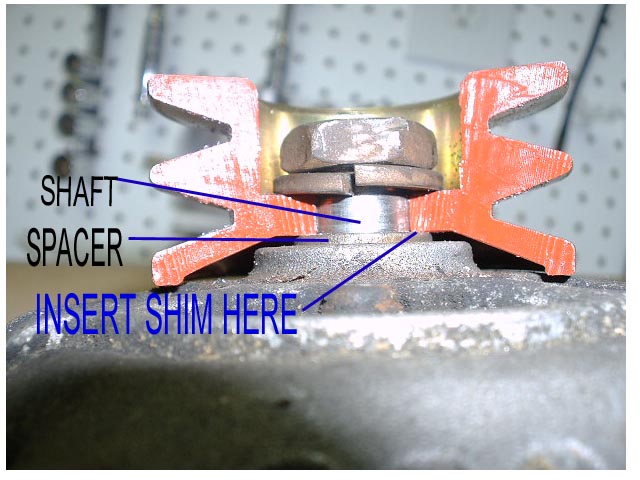

Here is a shot of where you would place a shim (IF NEEDED) in order to compensate for manufacturing variences.
Zach, the only thing left is the passenger side carcass. Drivers side is being mounted above the shop door
Zach, the only thing left is the passenger side carcass. Drivers side is being mounted above the shop door
#10
NorCal 7's Co-founder
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Banzai, that's good to hear bro. Sounds like things are going good for you. You never said if you could bore the pulley out for me so it will fit on an FD alt. If you could bore it out for me and then ship it I would greatly appreciate it. Just let me know how much extra it will cost. I'll send pix of the TII when I get home from the desert in November. She's coming along nicely now.
Zach
Zach
#11
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Mar 2002
Location: PA
Posts: 202
Likes: 0
Received 0 Likes
on
0 Posts
Thank you bansai.
I was just worried at first. I will try a thin washer in the morning and I'm sure that will take care of it.
Thanks again for prompt shipment, and this thread just goes to show everyone that Rotary Innovation has sweet Customer Support.
I was just worried at first. I will try a thin washer in the morning and I'm sure that will take care of it.
Thanks again for prompt shipment, and this thread just goes to show everyone that Rotary Innovation has sweet Customer Support.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#12
NorCal 7's Co-founder
![](https://www.rx7club.com/images/misc/10_year_icon.png)
I know Banzai very well and if there is one thing about him that can NEVER be questioned, it's the fact that he will break his own back making sure that all of his customers get exactly what they need. That's why I check with him first whenever I need something.
Zach
Zach
#14
What Subscription?
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
Wow, those are some cool cut-away pics! ![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
-Ted
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
-Ted
Thanks Ted!. I did those on the metal bandsaw last nite to illustrate where to put the shims at
