Rear wheel bearing looking for a part number
Hey all,

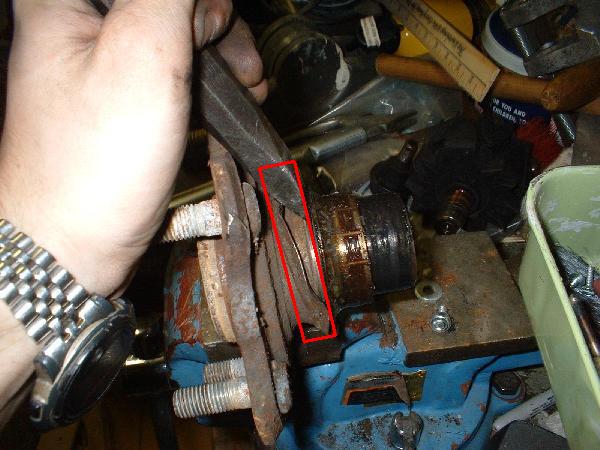

I recently started on replacing the rear wheel bearings on my 86 base. However, I destroyed a type of seal or cover, shown in the picture below (courtesy of nillahcaz from an old thread) outlined in red. Searching the forums on this was futile. It appears as it functions as a dust cover for the bearing race side of the rear wheel bearing. I'm not entirely sure of its importance, but figured I would be better off safe than sorry.
Does anyone have a part number for this part, or know where I would find a replacement? I'll get in touch with my local auto parts center, but from what I've seen at online parts stores I may be SOL. Any help is appreciated!
I recently started on replacing the rear wheel bearings on my 86 base. However, I destroyed a type of seal or cover, shown in the picture below (courtesy of nillahcaz from an old thread) outlined in red. Searching the forums on this was futile. It appears as it functions as a dust cover for the bearing race side of the rear wheel bearing. I'm not entirely sure of its importance, but figured I would be better off safe than sorry.
Does anyone have a part number for this part, or know where I would find a replacement? I'll get in touch with my local auto parts center, but from what I've seen at online parts stores I may be SOL. Any help is appreciated!
10-13-08, 11:32 PM
#2
You can try www.mazdatrix.com
I take it you are not talking about the metal dust cover that goes over the rotors, that you can probably find 100 of them by putting a want to buy on the for sale section.
I take it you are not talking about the metal dust cover that goes over the rotors, that you can probably find 100 of them by putting a want to buy on the for sale section.
10-13-08, 11:35 PM
#3
Full Member
Thread Starter
iTrader: (1)
Join Date: Jun 2006
Location: Calgary
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
Mazdatrix only lists the bearing, seal, and axle nut under the appropriate section. It's also not the dust cover that I'm looking for. Looks like it's made of similar material, though.
10-13-08, 11:44 PM
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
try this. FB-01-26-065A. Rear oil seal .(according to the Fishe).it is located after the bearing..so say Rear Seal on the bearing hub assembly.
10-13-08, 11:55 PM
#5
Full Member
Thread Starter
iTrader: (1)
Join Date: Jun 2006
Location: Calgary
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
The piece I'm looking for is on the other side of the hub. Neither the FSM not the manual on Mazdaspeed Motorsports even shows this part in the manual
10-14-08, 10:54 AM
#7
Full Member
Thread Starter
iTrader: (1)
Join Date: Jun 2006
Location: Calgary
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
I looked for a part number in the fiche, but it only shows as close as the rear axle flange. The part I need is ON the rear axle flange, and looks like it serves as a small dust cover. It is kept on the rear axle flange by the bearing race. I have a feeling a Mazda rep won't have a clue what I'm talking about either, but I'll give it a try.
Trending Topics
10-14-08, 10:13 PM
#8
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

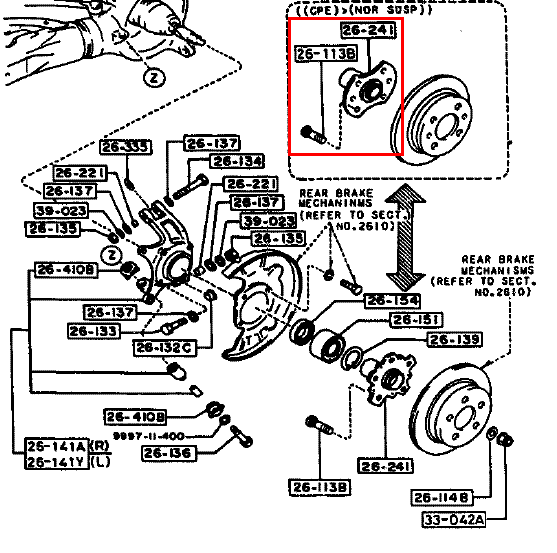

look at the part that the Arrow is pointing Down to..26-154(no glasses on sorry)..it looks like That part IS the Seal you need,as is is located past the bearing..it should be like a DUST type Oil seal..I got the Mazda Part # for that par,.From the Fishe...and OH,the Mazda dealer should Have the Exact SAME parts Fishe.
10-15-08, 05:58 PM
#9
Full Member
Thread Starter
iTrader: (1)
Join Date: Jun 2006
Location: Calgary
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
26-139? That looks like a retaining clip to me. Come to think of it - the bearing race part number doesn't look like it's listed in that picture either.
