slow_2ed_gen

i have an 89 non-turbo and it puffs oil like no ones business at full throttle at high rpms. someone told me it was a side oil seal? and it seems to be loosing power as well. how hard is it to do a rebuild on my own?

would it be better just to sell it and take the loss, i have no real connection with the car, this oil things has really been getting to me.

Syonyk

They're fun to rebuild if you're moderately mechanically inclined. If you're not, find someone to help, and you'll probably be mechanically inclined afterwards.

-=Russ=-

Dark-Rx7

re-built it Get a rebuilt video!

slow_2ed_gen

i was looking at rebuild kits, and they say 'this kit is for a stock rebuild' i always hear people talking about street port/ bridge port, are there other ways to rebuild it stronger or where i can get more power from the engine?

slpin

iTrader: (9)

you dont need the rebuild video...
take it apart, and common sense is enough to put it back....

Dark-Rx7

Street porting is a great way to get more power !
CORRECT me if I'm wrong but you grind your Intake and exhaust holes in your Rotor Housings Larger - obviously leading to a noticable power gain

BUT I wouldnt recommended you do that on your own - IF you dont have practice!

Aaron Cake

iTrader: (1)

Take a look at my rebuild thread in the archives. Should give you an idea of what's involved.

Regardless of what some other's say, get the video. It goes through the entire process and offers many helpful hints and tips.

jn2k108

so where do you get a video?

slow_2ed_gen

the only one i've ever seen is on atkinsrotary.com is this the best one to get?

can someone give me a link to this rebuild thread in the archives i cant find where it is?

-dan

Dark-Rx7

He actually has 3 rebuild forums

In newest to oldest order:

https://www.rx7club.com/showthread.p...hreadid=144198
https://www.rx7club.com/forum/showthread.php?t=328090
https://www.rx7club.com/2nd-gen-archive-72/pics-status-my-turbo-na-bridgeport-engine-build-374810/


but he also puts a TURBO on his N/A BUT he has alot of great rebuilt pics

RotaryEvolution

iTrader: (30)

aaron's garage reminds me of a prison...


i think he needs to chuck his ****, damn packrat!

GoodfellaFD3S

iTrader: (213)

Intake ports are in the irons housings (oriented vertically) and exhaust ports are in the rotor housings (oriented horizontally). porting alone with all else stock isnt going to do much, you would need to uncork your exhaust system and intake as well. It also isn't as easy to do correctly as people on this forum think, and is very time consuming for a beginner.

gxlbiscuit

get the video there are maybe three of them outthere...... if you have never built an engine its helpful. common sense will get you in trouble with a rotary..... swapped sideseals, backwards oil control ring springs all kind of lil **** that will mess you up. i have built two .. they are very easy. the common sense comment? :-P ...be realistic ... my first engines i have kept simple no porting.. last but not least rotaryresources.com or rotaryaviation.com sells very nice rebuild kits. there apex seals are pretty stout 700% harder than stock you can detonate the hell out of them.. been there done that

ddub

Rebuilding a rotary is about as hard as making a sandwich (humor)

Anyways, its easy if you can follow directions in the FSM and check seals/surfaces with the proper tools.

theagavejazz

iTrader: (4)

good links, I'm rebuilding my first rotary in a couple of weeks and need all the info I can get.

fcdrifter13

A good micromiter is always a good tool to have. and the digital ones are even better, snap-on is my friend.

SureShot

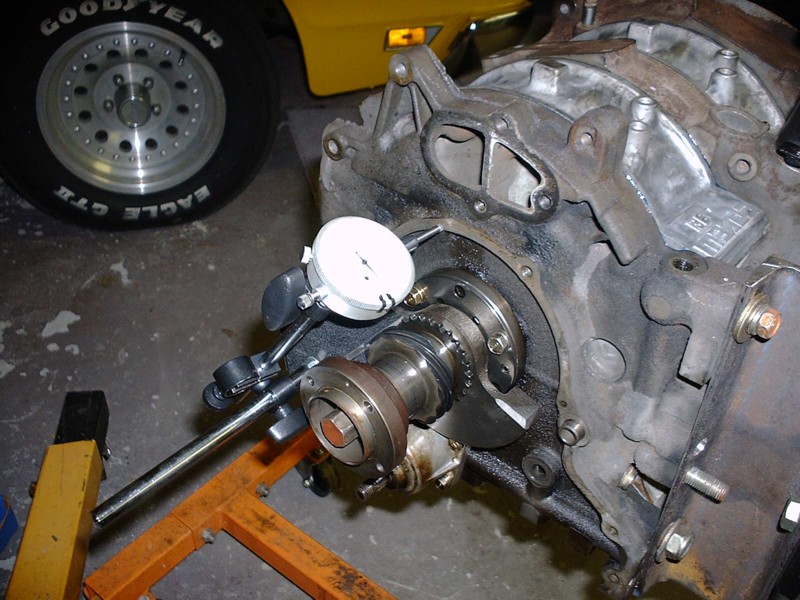

The only advanced issue I ecountered was adjusting the e-shaft end play.
I could have left it at .008", but I went ahead & cut it back to .003".

TitosToy

there are a few videos but the one i'd recommend is the bruce t. video and rotary aviation sells it. the atkins video is also a good generalized rebuild vid but bruce's vid is more indepth. aaron's thread is also a good reference on rebuilding.

Valkyrie

Rebuilding is easy... But putting the engine block back together is a total pain in the *** (at least the first time...)

Compared to that, pulling the engine and dissasembling it (besides the flywheel) is cake. Although I haven't put mine back in yet...

I'd get a video if I was you... reading the FSM over and over again is one thing, having someone show you is another thing.

But if you haven't read the FSM rebuild section over and over again, do it!

JesterJess

I just got my Adkins video last night, I couldn't wait, I ripped into it and threw it into the DVD player.

This is the best $25 you can spend. It is really a good video.
