Quick Question regarding P/S Removal (/w Diagram)
#1
Drivin without Pistons
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Wilmington, NC USA
Posts: 120
Likes: 0
Received 0 Likes
on
0 Posts
Quick Question regarding P/S Removal (/w Diagram)

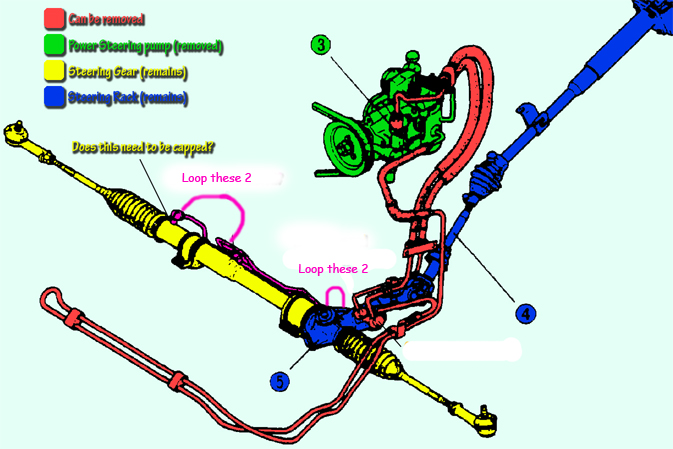

I've read through the multiple threads regarding the power steering removal but I wanted to post this diagram to make sure I'm doing this correctly. Maybe it will help out others as well. Please see diagram below. Car is a 1986 GXL.
<a href="http://people.uncw.edu/farverk/p-s.jpg"><img width=600 height=401 src ="http://people.uncw.edu/farverk/p-s.jpg"></a>
Picture is shrunk down to not mess up the margins for the thread. Please click the link below to see full size diagram
http://people.uncw.edu/farverk/p-s.jpg
The orange text is questioning the re-routing of the lines. I was reading you can loop them.
<a href="http://people.uncw.edu/farverk/p-s.jpg"><img width=600 height=401 src ="http://people.uncw.edu/farverk/p-s.jpg"></a>
Picture is shrunk down to not mess up the margins for the thread. Please click the link below to see full size diagram
http://people.uncw.edu/farverk/p-s.jpg
The orange text is questioning the re-routing of the lines. I was reading you can loop them.
Last edited by RX7_RaVeN; 06-13-08 at 10:26 PM. Reason: Add info
#2
Rotary Enthusiast
Join Date: Feb 2008
Location: tennessee
Posts: 900
Likes: 0
Received 0 Likes
on
0 Posts
yes u can loop the lines but u get even better repsonse by taking the time and removing all the seals inside it as well. if u loop them all u are doing is working harder pushing left over fluid from 1 end to the other
#4
Drivin without Pistons
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Wilmington, NC USA
Posts: 120
Likes: 0
Received 0 Likes
on
0 Posts
I know and have read up on de-powering the rack via the Flying Miata website. I do not have the time to pull the rack out of the car and complete the seal removal. This is really a temaporary fix until I get a manual rack.
If you look at the diagram can the lines in purple be removed?
Can the yellow text be capped?
Thanks for the replies/clarification.
If you look at the diagram can the lines in purple be removed?
Can the yellow text be capped?
Thanks for the replies/clarification.
Last edited by RX7_RaVeN; 06-13-08 at 11:34 PM. Reason: ?
#7
Drivin without Pistons
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Wilmington, NC USA
Posts: 120
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#8
The first time I did it I had no idea the lines looped all the way across the engine bay and back (why is that?) so I looped the rubber hose with the fitting. I removed both the lines tonight and I'll probably find a drain plug to plug the hole tomorrow, or find a way to loop them. I'll probably rig up something
Yeah and the 20:1 school bus ratio will make the car hard to drive (fast).
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
Yeah and the 20:1 school bus ratio will make the car hard to drive (fast).
#9
Drivin without Pistons
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Wilmington, NC USA
Posts: 120
Likes: 0
Received 0 Likes
on
0 Posts
Ok I need some assistance. Right now we are trying to re-route the lines. Please refer to the picture below. A buddy and I looked at the diagram above <a href=http://people.uncw.edu/farverk/p-s2.jpg>click here</a> and felt that we could plug the line that goes up to the radiator as it is just an input line for cooled oil from the pump.
<img src=http://people.uncw.edu/farverk/p-s2.jpg>
<img src=http://people.uncw.edu/farverk/p-s2.jpg>
#10
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
i just removed my PS the cheap, quick, dirty, ghetto rigging style that your trying to accomplish...
plug all three of the holes in the picture right above my post.
then, loop lines according to this photo...
(theres 2 that you cant see in the photo, by the 3 holes that you should plug)
plug all three of the holes in the picture right above my post.
then, loop lines according to this photo...
(theres 2 that you cant see in the photo, by the 3 holes that you should plug)
#12
Drivin without Pistons
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Wilmington, NC USA
Posts: 120
Likes: 0
Received 0 Likes
on
0 Posts
Yea, we got everything together and it doesn't leak so we are gonna go with it. I'll take a picture of our awesome handy work when I get off work today.
