Quick Q on 5/6 port sleeve install

Thread Tools

Search this Thread

Old 02-20-12, 04:11 PM
  #1
Rotary Enthusiast

Thread Starter
iTrader: (1)

jdonnell's Avatar

Join Date: Nov 2001
Location: Cape Canaveral FL
Posts: 940
Likes: 0
Received 3 Likes on 3 Posts
Quick Q on 5/6 port sleeve install
Just a sanity check here. Are these installed correctly (90 NA Rx7)?? FSM says the large portion of the dowel pin down, and I assume 'large portion' is the the largest diameter of the pin?

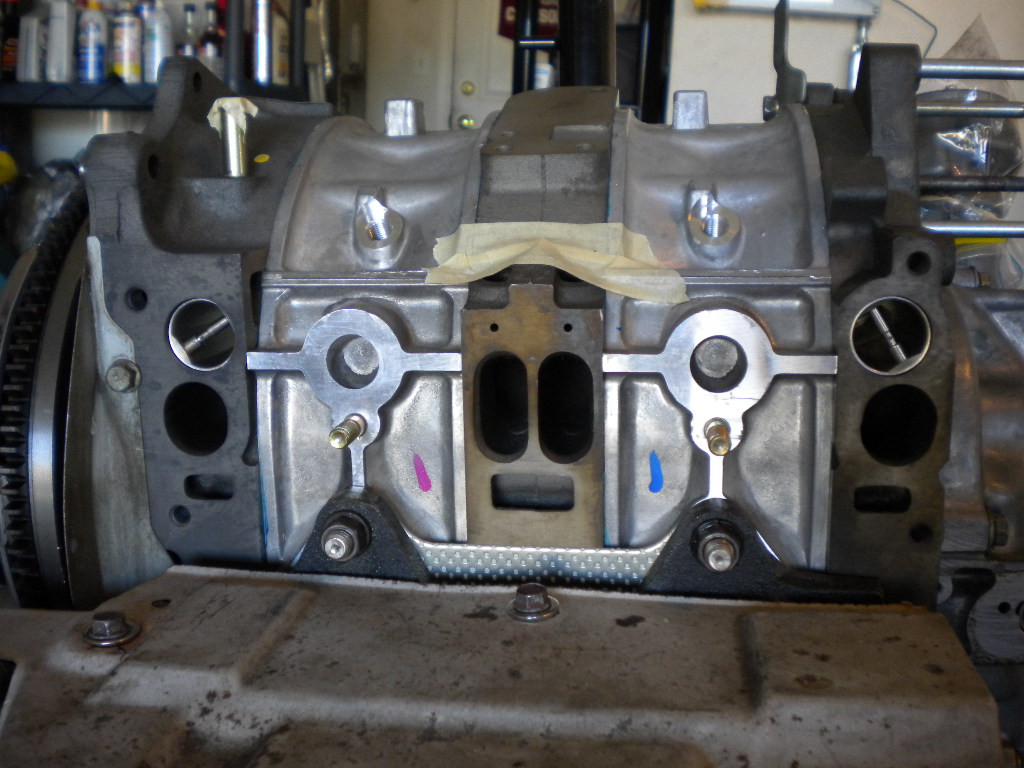

Attached Thumbnails Quick Q on 5/6 port sleeve install-dscn1438.jpg
jdonnell is offline
Reply Like
Old 02-20-12, 05:05 PM
  #2
Rotary Freak

iTrader: (16)

PvillKnight7's Avatar

Join Date: May 2002
Location: Maryland
Posts: 2,597
Likes: 0
Received 2 Likes on 2 Posts
Put the LIM in place with the actuators. The actuator arms are slotted in such a way that they only fit with the sleeves in the correct holes at the correct angles.
PvillKnight7 is offline
Reply Like
Old 02-20-12, 05:52 PM
  #3
Rotary Enthusiast

Thread Starter
iTrader: (1)

jdonnell's Avatar

Join Date: Nov 2001
Location: Cape Canaveral FL
Posts: 940
Likes: 0
Received 3 Likes on 3 Posts
Im up to speed with that, but was wondering about the pin in the sleeve itself. Larger diameter portion of pin down or up.
jdonnell is offline
Reply Like
Old 02-20-12, 07:11 PM
  #4
Full Member

iTrader: (2)

ace626's Avatar

Join Date: Nov 2007
Location: Rhode Island
Posts: 97
Likes: 0
Received 0 Likes on 0 Posts
When i installed atkins sleeves in my 91 i installed them so the opening was down. My thinking was that the rear actuator spins the sleeve counter clockwise to open and the front spins clockwise
ace626 is offline
Reply Like
Old 02-20-12, 07:21 PM
  #5
Rotary Freak

iTrader: (16)

PvillKnight7's Avatar

Join Date: May 2002
Location: Maryland
Posts: 2,597
Likes: 0
Received 2 Likes on 2 Posts
Use an air gun to put a few psi into the actuator vacuum lines and see which way they spin open.
PvillKnight7 is offline
Reply Like
Old 02-21-12, 05:52 PM
  #6
Rotary Enthusiast

Thread Starter
iTrader: (1)

jdonnell's Avatar

Join Date: Nov 2001
Location: Cape Canaveral FL
Posts: 940
Likes: 0
Received 3 Likes on 3 Posts
Well, I have the lower intake on and can't see them rotate--that's an old picture. I can use vacuum hose and hear them move, but now I'm second guessing if I installed them correctly.
jdonnell is offline
Reply Like
Old 02-21-12, 07:00 PM
  #7
Full Member

iTrader: (2)

ace626's Avatar

Join Date: Nov 2007
Location: Rhode Island
Posts: 97
Likes: 0
Received 0 Likes on 0 Posts
So you don't know whether you put the port sleeve opening facing up or down?
ace626 is offline
Reply Like

Trending Topics

Old 02-21-12, 07:41 PM
  #8
Red Pill Dealer

iTrader: (10)

TonyD89's Avatar

Join Date: Aug 2005
Location: O Fallon MO
Posts: 2,232
Received 3,759 Likes on 2,575 Posts
Originally Posted by ace626
When i installed atkins sleeves in my 91 i installed them so the opening was down. My thinking was that the rear actuator spins the sleeve counter clockwise to open and the front spins clockwise
Yep. Opening facing down.
TonyD89 is offline
Reply Like
Old 02-22-12, 04:00 AM
  #9
Rotary Enthusiast

Thread Starter
iTrader: (1)

jdonnell's Avatar

Join Date: Nov 2001
Location: Cape Canaveral FL
Posts: 940
Likes: 0
Received 3 Likes on 3 Posts
Yep, not sure. All I need to know is does the large diameter portion of the pin go down or up. Picture shows down. Is that correct? I cant see the sleeve now with the lower intake installed.
jdonnell is offline
Reply Like
