porting
#1
Senior Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Wilmington, NC
Posts: 579
Likes: 0
Received 0 Likes
on
0 Posts
porting
nothing on the engine is reusable, so I'm gunna port it. I was wondering what I should do? I know I need a template, but I have no clue how to make one. Any help would be nice
#3
Senior Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
its just a waste of time porting a plate that is screwed, it takes 2-3 hours for the middle houseing to do it right. get some good houseings and build a motor ![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
-Daniel
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
-Daniel
#5
Are you porting the plates for practice or is it that nothing on the engine besides the side plates is useable?
Either way, it is a good idea in my book.
I personally would start w/ buying porting templates from Racing Beat as a starting point and do A LOT of reading on the subject before even touching the die grinder to the iron.

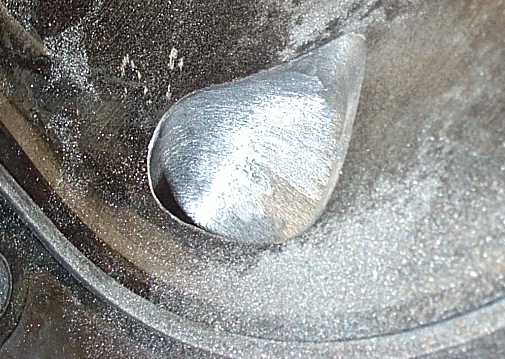

The porting templates will show the "recommended" face of the port that will dictate actual port timing (opening/closing), but it is up to you to decide how the face of the port interfaces w/ the port runner.
For example on the top closing section of the intake port can that face can be brought straight down into the runner or must you round it from the face of the port to the runner in order to avoid breaking into the water jacket? On the outer opening section of the port should you just clean up the short radius the air must take to enter the engine or reduce the thickness of the plate here and make the radius more gradual?
There are many other areas on each port to make decisions about and then you have to look at the interaction of the primary and secondary ports as well.
I haven't done any rotary engine porting yet (although I have ported a head, turbos, manifolds, etc). I am still in the "reading up" stage of rotary porting myself!
Either way, it is a good idea in my book.
I personally would start w/ buying porting templates from Racing Beat as a starting point and do A LOT of reading on the subject before even touching the die grinder to the iron.
The porting templates will show the "recommended" face of the port that will dictate actual port timing (opening/closing), but it is up to you to decide how the face of the port interfaces w/ the port runner.
For example on the top closing section of the intake port can that face can be brought straight down into the runner or must you round it from the face of the port to the runner in order to avoid breaking into the water jacket? On the outer opening section of the port should you just clean up the short radius the air must take to enter the engine or reduce the thickness of the plate here and make the radius more gradual?
There are many other areas on each port to make decisions about and then you have to look at the interaction of the primary and secondary ports as well.
I haven't done any rotary engine porting yet (although I have ported a head, turbos, manifolds, etc). I am still in the "reading up" stage of rotary porting myself!
#6
Rotary Freak
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Dec 2001
Location: chandler, AZ
Posts: 2,402
Likes: 0
Received 0 Likes
on
0 Posts
I agree with blue TII, great info. If you wanna learn a lot more about the topic, I highly reccommend checking out the porting/rotary building forum over at nopistons.com. They have a great thread covering it.
#7
Senior Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Wilmington, NC
Posts: 579
Likes: 0
Received 0 Likes
on
0 Posts
thanks blue tII. YES, nothing on the whole engine is reusable except the e-shaft, which was in great condition. I knew I needed to buy templates, but wasnt sure where. thanks. ( and yes , it is a good idea to practice on a blown engine, it's not a waste of time) if you screw up new stuff, then how are ya gunna feel????? thats why you learn from your mistakes on the blown things, and then do the new stuff!
Trending Topics
#9
Displacement > Boost
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by bejbis
its just a waste of time porting a plate that is screwed, it takes 2-3 hours for the middle houseing to do it right.
its just a waste of time porting a plate that is screwed, it takes 2-3 hours for the middle houseing to do it right.
#10
Full Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Aug 2002
Location: Baton Rouge, La.
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
Racing Beat will have everything you need! From templates to grinding tools. That’s where I got all of my templates. Here is the link for a street port, browse the site they got allot of templates.
http://racingbeat.com/FRmazda2.htm
http://racingbeat.com/FRmazda2.htm
