Polished my UIM...Pics (56K Okay)
11-16-06, 03:16 PM
#1
The Cause of Death
Thread Starter
Polished my UIM...Pics (56K Okay)

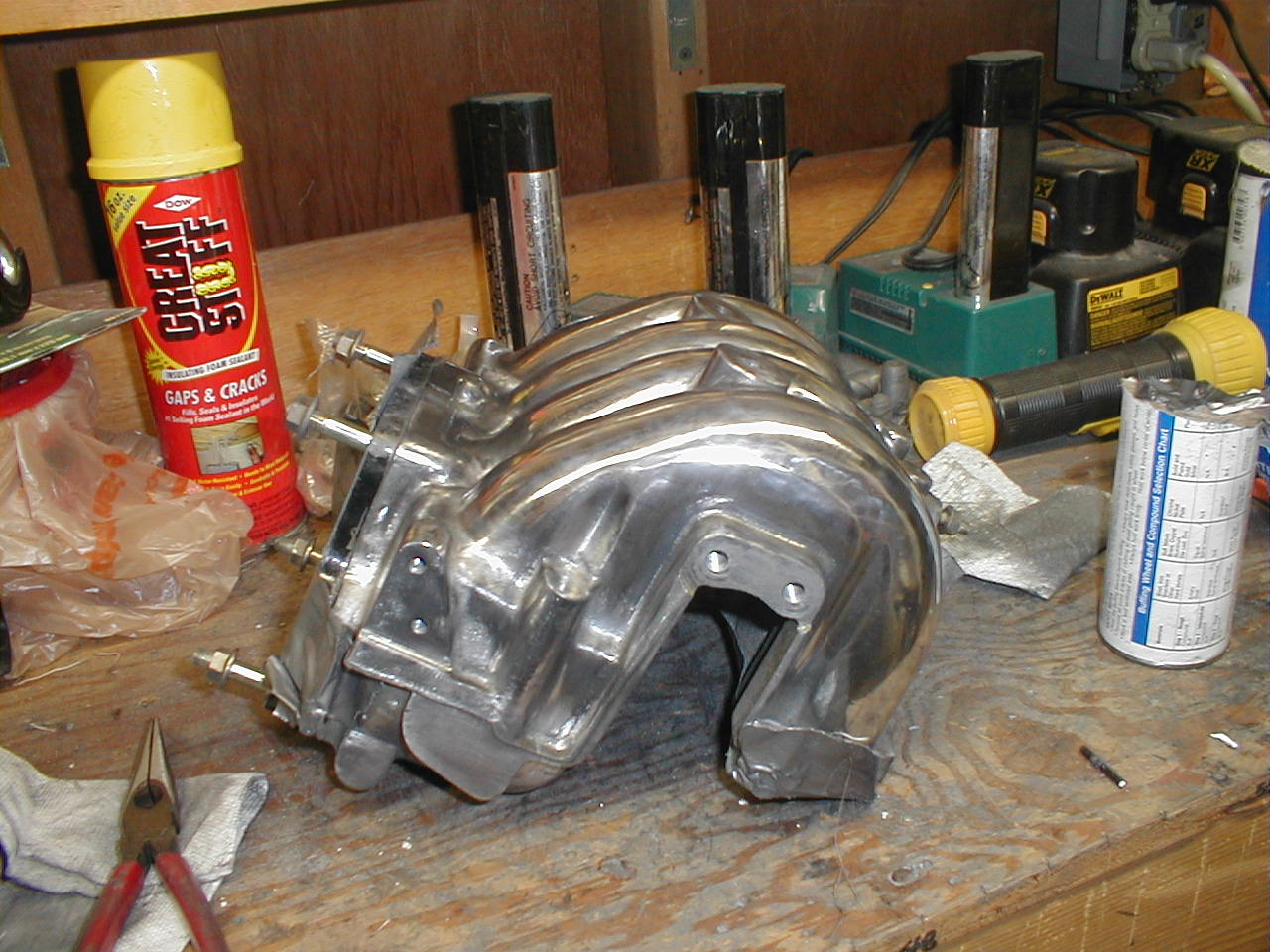

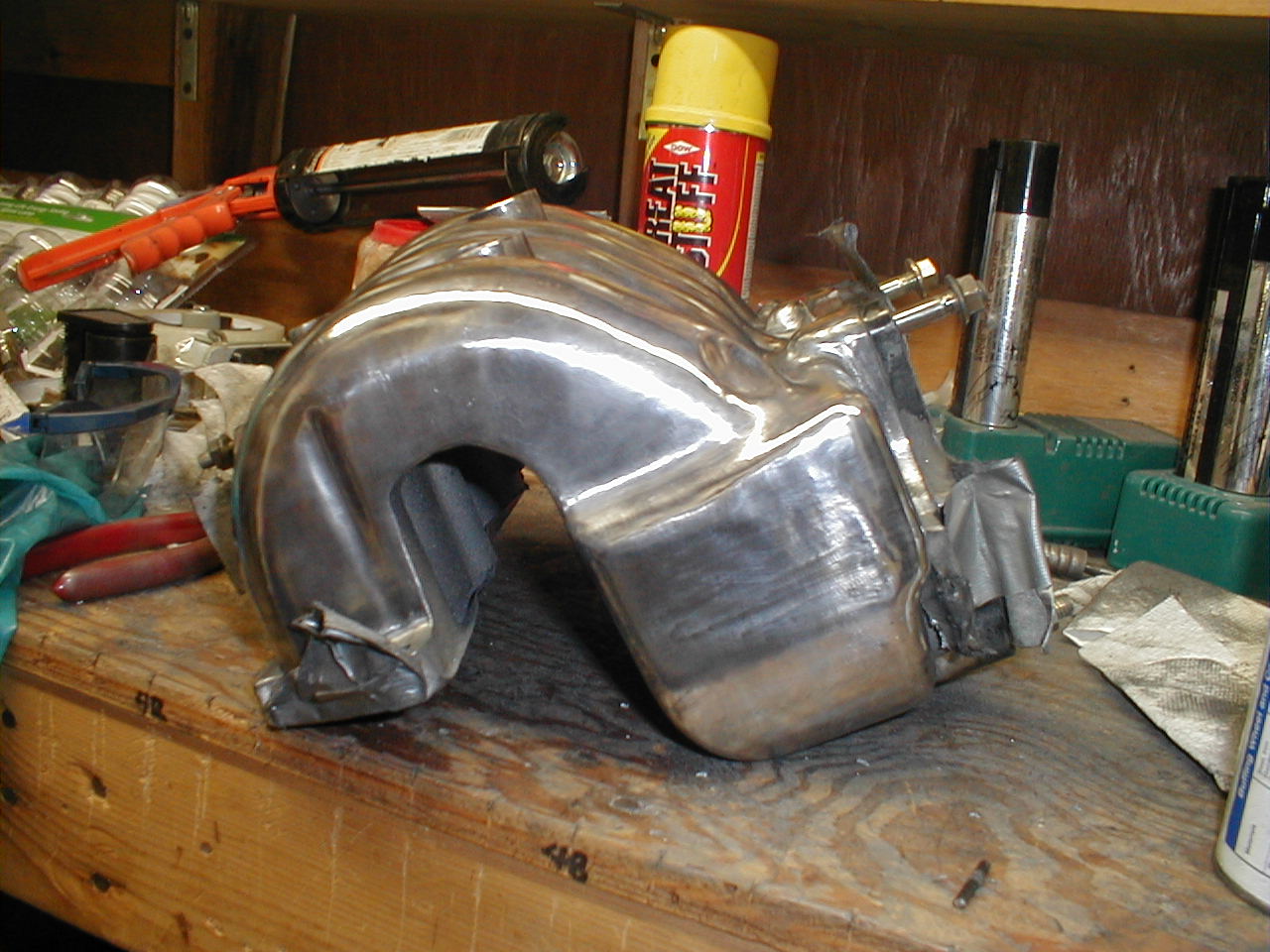

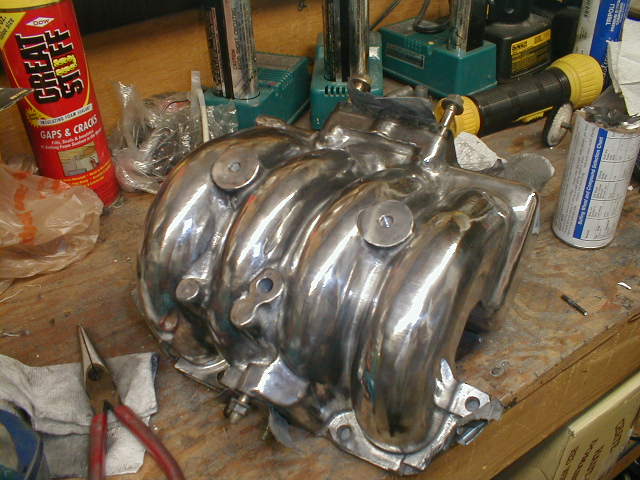

So I'm pretty close to being done polishing my UIM. Total time spent so far is about eight hours. I got a little bit lazy on the plenum, so I'm probably going to wind up going back over it.
What do you guys think? Don't be too harsh...
What do you guys think? Don't be too harsh...
Trending Topics
11-16-06, 04:06 PM
#8
Originally Posted by Noel Caraballo
how does one get a polish like that, do you just get some metal polish, rags and start buffin
Sand.....then sand with a finer grit.......then with a finer grit.......then again with a finer grit....then polish.......then rub........then rub........then curse.......then drink a beer and stare.......then rub........then clean it up!
11-16-06, 04:36 PM
#12
Cosmo 13B-RE
Join Date: Apr 2006
Location: Florida
Posts: 163
Likes: 0
Received 0 Likes
on
0 Posts
I'm assuming this is your first attempt at polishing? Well anyways your doing a pretty good job. The smoother you get it the better it'll come out after buffering.

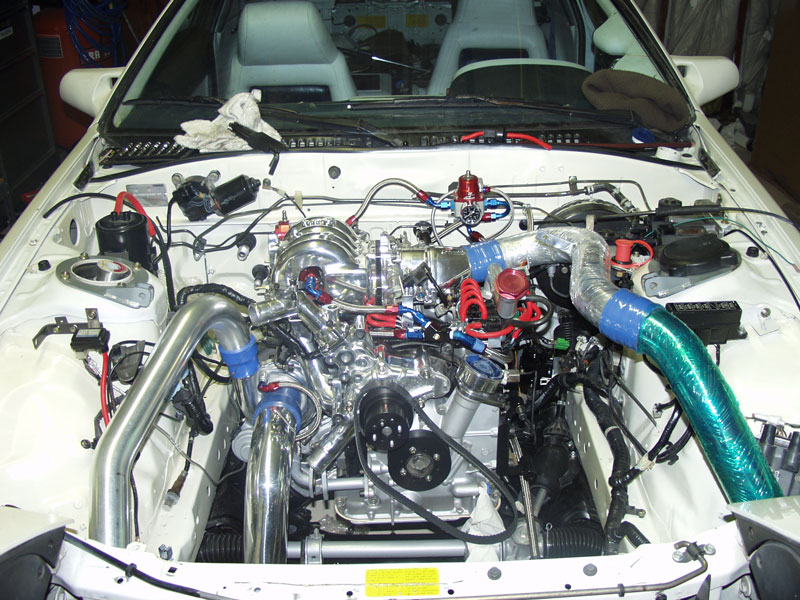

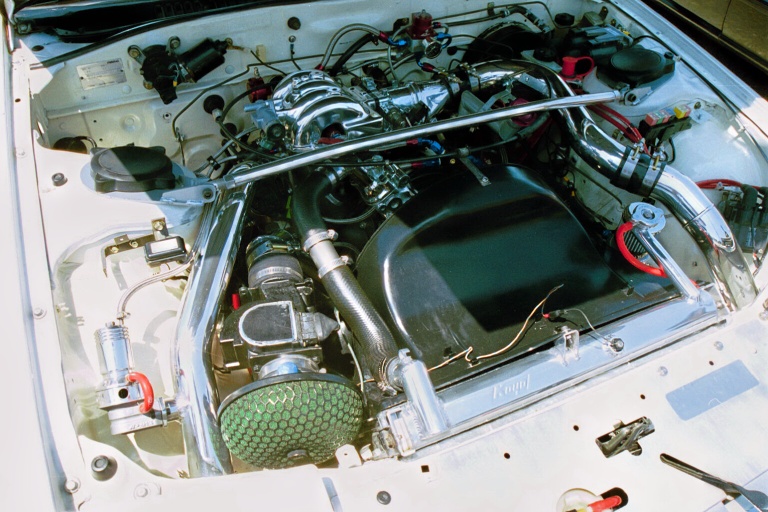

Hopefully you don't get hooked on polishing pieces for your car and lose half you highschool senior year & social life like I did, but then again to think about it......it was soooo worth the time to have a car that is "show and go." Here's a couple pictures of my work maybe it'll motivate you or someone:
Sorry if some of the pictures are really crappy
Hopefully you don't get hooked on polishing pieces for your car and lose half you highschool senior year & social life like I did, but then again to think about it......it was soooo worth the time to have a car that is "show and go." Here's a couple pictures of my work maybe it'll motivate you or someone:
Sorry if some of the pictures are really crappy
11-16-06, 04:45 PM
#13
The Cause of Death
Thread Starter
Yes, I do have a lot of extra time on my hands, lol. Just moved to a new area, work nights, started my TII swap project and I figured while all of this **** is off might as well make it pretty.
And I didn't do much, if any of this, by hand. I busted out my trusty Black & Decker Wizard (dremel-style, but cheaper).
A buddy of mine with an FD recommended Eastwood's metal polishing kit (www.eastwood.com). $75 and two days later, it was at my door.
Process is basically like Classic Auto said... This is how I did it though.
Sanded everything down with an 80 grit abrasive roller on my dremel, with a bit of grinder's grease. This got the nasty cast grayish **** off. Used a small cone shaped grinder to get the tight spaces. Then I used another 80 grit cone-shaped abrasive "roller."
Do that again with a 240 grit, and then a 320 grit. Wipe it all down/clean it up with some prep-sol/acetone.
Then I changed attachments and went with a small (2") buffing wheel and some tripoli polish. After that I cleaned it up again with some prep-sol, and buffed it with some polishing compound, and a smaller buffer. Last night as I was doing the last bit of sanding (buffed/polished today) I forgot to wear a respirator/dust mask. I was hacking up black **** for a good while...
I know I could have shipped it somewhere and gotten it done, but the same could be said about the rest of my car. I'd rather have everything inside, and under the hood done by me. Just going to be a nice feeling if someone asks "where'd you get the work done?" and I can respond with "my house and garage."
All that aside from paint and body-work of course. Next up is the LIM, after I clean up the plenum, of course. :angry: In the mean time I've gotta clean up my engine bay then drop in my TII motor (it's just about stripped now). After that it's haltech time...
Thanks for the kind words.
James
And I didn't do much, if any of this, by hand. I busted out my trusty Black & Decker Wizard (dremel-style, but cheaper).
A buddy of mine with an FD recommended Eastwood's metal polishing kit (www.eastwood.com). $75 and two days later, it was at my door.
Process is basically like Classic Auto said... This is how I did it though.
Sanded everything down with an 80 grit abrasive roller on my dremel, with a bit of grinder's grease. This got the nasty cast grayish **** off. Used a small cone shaped grinder to get the tight spaces. Then I used another 80 grit cone-shaped abrasive "roller."
Do that again with a 240 grit, and then a 320 grit. Wipe it all down/clean it up with some prep-sol/acetone.
Then I changed attachments and went with a small (2") buffing wheel and some tripoli polish. After that I cleaned it up again with some prep-sol, and buffed it with some polishing compound, and a smaller buffer. Last night as I was doing the last bit of sanding (buffed/polished today) I forgot to wear a respirator/dust mask. I was hacking up black **** for a good while...
I know I could have shipped it somewhere and gotten it done, but the same could be said about the rest of my car. I'd rather have everything inside, and under the hood done by me. Just going to be a nice feeling if someone asks "where'd you get the work done?" and I can respond with "my house and garage."
All that aside from paint and body-work of course. Next up is the LIM, after I clean up the plenum, of course. :angry: In the mean time I've gotta clean up my engine bay then drop in my TII motor (it's just about stripped now). After that it's haltech time...
Thanks for the kind words.
James
11-16-06, 04:47 PM
#14
The Cause of Death
Thread Starter
Originally Posted by RotorHead87
I'm assuming this is your first attempt at polishing? Well anyways your doing a pretty good job. The smoother you get it the better it'll come out after buffering.
Hopefully you don't get hooked on polishing pieces for your car and lose half you highschool senior year & social life like I did, but then again to think about it......it was soooo worth the time to have a car that is "show and go." Here's a couple pictures of my work maybe it'll motivate you or someone:
Sorry if some of the pictures are really crappy
Hopefully you don't get hooked on polishing pieces for your car and lose half you highschool senior year & social life like I did, but then again to think about it......it was soooo worth the time to have a car that is "show and go." Here's a couple pictures of my work maybe it'll motivate you or someone:
Sorry if some of the pictures are really crappy
And yes, this is my first attempt at polishing. I got kind of tired of the sanding after the 320 grit, and didn't really feel like going out and getting any 600 grit to do any more by hand, or with the tool.
11-16-06, 05:55 PM
#20
Senior Member
I saw a TII recently with manifolds that looked just as shiny and natural as any polished ones I'd ever seen...
and all he did was brush the dirt off them and spray them with this 1200 degree high temp paint that costs maybe $5 a can from Salvo auto parts.
It's called Bright Beauty, High Heat
Comes in a spray can with plain looking white label and black and orange letters.
I haven't found it in any other local stores (Autozone, Advance, Pepboys, Walmart) but those do sell another similarly named brand that is NOT the same thing.
Anyway.. it's an option for those of you who have neither time nor money to spend making things look pretty. Like I said, this costs less than $10 and takes one evening (a few minutes to clean and spray, a couple hours to dry..) and it looks great. I'll see if I can get pictures later.
and all he did was brush the dirt off them and spray them with this 1200 degree high temp paint that costs maybe $5 a can from Salvo auto parts.
It's called Bright Beauty, High Heat
Comes in a spray can with plain looking white label and black and orange letters.
I haven't found it in any other local stores (Autozone, Advance, Pepboys, Walmart) but those do sell another similarly named brand that is NOT the same thing.
Anyway.. it's an option for those of you who have neither time nor money to spend making things look pretty. Like I said, this costs less than $10 and takes one evening (a few minutes to clean and spray, a couple hours to dry..) and it looks great. I'll see if I can get pictures later.
11-16-06, 06:04 PM
#21
the first time I wanted to shine anything I did just that but the bad thing with paint is it WILL come off unless you use some sort of car paint or something. Now I have my manifold ceramic coated and it looks as good as if someone polished it and it's got the heat protection of the ceramic coating
11-16-06, 06:50 PM
#22
tom port.. AKA streetport
iTrader: (6)
Join Date: Jan 2005
Location: ludlow, pa
Posts: 4,659
Likes: 0
Received 0 Likes
on
0 Posts
honestly!!! how the hell!?!?!?!
i try this and ill i do is either turn the buffer wheel black or when i used the dremel tool i would put goudges in the alluminum???
WTF am i doing wrong?
i try this and ill i do is either turn the buffer wheel black or when i used the dremel tool i would put goudges in the alluminum???
WTF am i doing wrong?
