Painting Rims?
07-22-04, 09:10 PM
#1
Full Member
Thread Starter
Join Date: Jul 2004
Location: CA
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
Painting Rims?
Hi people....i know...i post a lot
im not realli rich and i want dark rims...either black or gun metal...and i cant pay 1000 for new ones or even 500 for used rims...
i was wondering how much would it cost to paint all 4 of my stock 5 spoke rims gun metal or black?
can i do it myself? if so, how much?
Dnx a LOT PpL!!!!!
-Jim
im not realli rich and i want dark rims...either black or gun metal...and i cant pay 1000 for new ones or even 500 for used rims...
i was wondering how much would it cost to paint all 4 of my stock 5 spoke rims gun metal or black?
can i do it myself? if so, how much?
Dnx a LOT PpL!!!!!
-Jim
07-22-04, 11:46 PM
#5
Full Member
Join Date: May 2003
Location: fresno, ca
Posts: 230
Likes: 0
Received 0 Likes
on
0 Posts

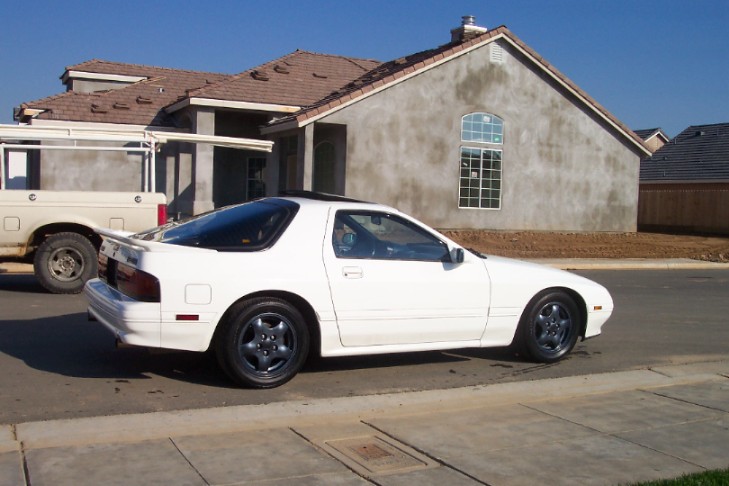

mine were done for 35$ each. included blasting and powder coating. you need the tires removed though.
https://www.rx7club.com/attachment.p...chmentid=66481
https://www.rx7club.com/attachment.p...chmentid=66481
Last edited by cjbechtel; 07-22-04 at 11:48 PM.
07-22-04, 11:57 PM
#6
ScrewD Rotary Division
Join Date: May 2004
Location: va beach/blacksburg 4 school
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
http://www.honda-tech.com/zerothread?id=316500
my friends did his HX (civic) rims and polished the lip....really cheap and really sweet
my friends did his HX (civic) rims and polished the lip....really cheap and really sweet
07-23-04, 12:04 AM
#7
ScrewD Rotary Division
Join Date: May 2004
Location: va beach/blacksburg 4 school
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
polishing write up http://sportbikeguy.com/garage/floor/rimstrip.html
Trending Topics
07-23-04, 12:15 AM
#10
Rattle can retard
Join Date: Jul 2001
Location: St. Peters, MO
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
I did mine with the Duplicolor wheel paint. And I put light clear coat over that. I used lacquer clear even though they say not to, but it didn't mess anything up. I did this about 2 months ago, so I'm not sure how well it will really last. But I squeezed out all four rims on one can of paint that costs $4. I would recommend 2 cans as I barely had enough. There is actually a mess up where the paint sputtered on the last wheel (not noticeable unless up close).
Anyway, if I wake up early enough before I have to go to work tommorow, I'll get a picture for you.
Powdercoating is definitely a better option if you can.
Of course, I didn't have to take my tires off or even mask them for that matter. I just used a stiff plastic brush to clean off the tires after the paint dried. Took a few hours all in all.
Anyway, if I wake up early enough before I have to go to work tommorow, I'll get a picture for you.
Powdercoating is definitely a better option if you can.
Of course, I didn't have to take my tires off or even mask them for that matter. I just used a stiff plastic brush to clean off the tires after the paint dried. Took a few hours all in all.
07-23-04, 10:07 AM
#12
Rattle can retard
Join Date: Jul 2001
Location: St. Peters, MO
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
I don't remember what all colors they had. I bought the paint at Walmart. You can get it at any parts store that has touch up paints. At least, all the ones I've been to had it.

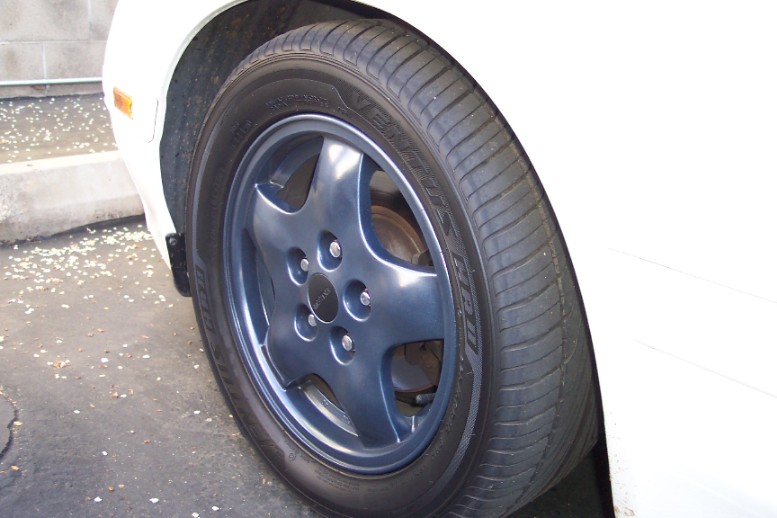

Anyhow, http://webpages.charter.net/a-melita/IMG_0126.jpg
Anyhow, http://webpages.charter.net/a-melita/IMG_0126.jpg
07-23-04, 10:12 AM
#13
Full Member
Join Date: Apr 2003
Location: SoCal
Posts: 208
Likes: 0
Received 0 Likes
on
0 Posts
if you're in SoCal, check out www.teamspugen.com for paint or powdercoating!
562.577.7247 tell him krist sent you w/ the redFC
562.577.7247 tell him krist sent you w/ the redFC
07-23-04, 10:30 AM
#15
Green Flameless
iTrader: (2)
Join Date: Feb 2002
Location: North Central PA
Posts: 2,242
Likes: 0
Received 0 Likes
on
0 Posts
I have used Duplicolor's Wheel Coating on three different vehicles now.. So far, so good.. I spent a little more than 4 dollars, though..
the EASIEST thing to do is drop 5 bucks on a can of "Aircraft Coating Remover". Spray it on the wheel, wait a few minutes, and then hose it off and rub it down with a rag.. It completely eats away the clearcoat. There was a few spots on my GXL rims that I needed to hit a second time with that.. One can was more than enough for all 4 of my wheels.
2nd step is the color step.. I used the gunmetal, It looks the same as 86GXL's car. two coats per rim, I got two cans, used about 1.5... 4 dollars per can, so i'm up to $13
Last step is the wheel clearcoat, also from duplicolor. I did two layers on each rim, used one can completely up. cost: $4.50..
Total cost of project: $17
Total time for all 4 wheels: ~2 hours or so (counting drying times in between washing and painting).
If you're interested, I can get some pics of it later today...
Just for reference, in my sig file, the wheels are only photoshopped to the same shade/color as they are now, I haven't had a chance to reshoot my car in a nice setting It really does look much nicer thant he sig file
the EASIEST thing to do is drop 5 bucks on a can of "Aircraft Coating Remover". Spray it on the wheel, wait a few minutes, and then hose it off and rub it down with a rag.. It completely eats away the clearcoat. There was a few spots on my GXL rims that I needed to hit a second time with that.. One can was more than enough for all 4 of my wheels.
2nd step is the color step.. I used the gunmetal, It looks the same as 86GXL's car. two coats per rim, I got two cans, used about 1.5... 4 dollars per can, so i'm up to $13
Last step is the wheel clearcoat, also from duplicolor. I did two layers on each rim, used one can completely up. cost: $4.50..
Total cost of project: $17
Total time for all 4 wheels: ~2 hours or so (counting drying times in between washing and painting).
If you're interested, I can get some pics of it later today...
Just for reference, in my sig file, the wheels are only photoshopped to the same shade/color as they are now, I haven't had a chance to reshoot my car in a nice setting
It really does look much nicer thant he sig file
07-23-04, 02:48 PM
#16
Full Member
Join Date: Jan 2004
Location: San Antonio
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts
The Duplicolor paint works well and will look good. The trick to making them look nice is how much time and effort you put into the prepwork. Like Wonko mentioned, stipping the old paint is a good idea. Make sure that the wheels are clean and free of any oils. It sounds basic but apply several thin layers of paint, not one or two heavy coats. Clearcoating will make the finish much more durable. We painted my freinds stock CRX wheels and they still look good a year later even after having new tires mounted.
07-23-04, 04:02 PM
#17
Senior Member
Join Date: Jun 2003
Location: ...
Posts: 579
Likes: 0
Received 0 Likes
on
0 Posts
I did the same thing yesterday but instead of removing the clearcoat, I sanded down the rims to get out the rough edges.
But I didnt know clear coat was for AFTER painting... I used a ground coat before then did 2-3 coats of paint on each wheel and the can is still about 1/6th full
But I didnt know clear coat was for AFTER painting... I used a ground coat before then did 2-3 coats of paint on each wheel and the can is still about 1/6th full
DNX GUYS!!!!
07-23-04, 09:49 PM
#21
Full Member
Join Date: Apr 2003
Location: virginia beach virginia
Posts: 107
Likes: 0
Received 0 Likes
on
0 Posts
i helped a friend and his wheels came out almost flawless. just one runny mark cuz it was 3 in the morning. but for my opinio i did a good job. we used it hink 5 or 6 cans and 3 layers of clearcoat on each rim.
08-04-04, 02:57 PM
#22
Banned. I got OWNED!!!
Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Look at the powder coating on my fenders, doors and rims.
My guy does it for NASA and Lockheed.
http://www.illstreet.com/gallery/batman
My guy does it for NASA and Lockheed.
http://www.illstreet.com/gallery/batman
