Overheating Like a ****
Just installed my gretty FMIC I overheat at cruise 60mph or +. Cooling fan light comes on even with heater on. Brand new thermostat flow tested the radiator and did a radiator flush. Keeps perfect temp at idle and light cruise. Obviously this has restricted my airflow to my radiator what should I do???
Thanks!
Thanks!
#3
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
boosting to the max of a stock turbo. all the regulator mods fcd Safc fmic 3" ehxaust stage one street port. i dont have to boost to over heat just crusing at 60 mph over heating
#5
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
i am running a perfict mix of coolant to water the ph is right on as well but i have not trimmed the bumbper and dont want to, but is that what what its going to come down to? how much should i trim?
#6
always modding
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Mar 2005
Location: on a tiny island in the middle of a sea
Posts: 1,667
Likes: 0
Received 3 Likes
on
3 Posts
pure distilled water cools better then premix... premix is to prevent corrosion...
u should consider adding water Wetter it will help..
are u using the stock mechanical fan, or did u "upgrade" to electric? do u still have the stock fan shroud? or did u remove it?
u could consider removing your A/C condensor if u don't "need" it... that will help air get to the radiator....
trimming the bumper will help get air to both the FMIC and the radiator... some ppl will make 'ducts' to help redirect air as well... just like many cars have for their brakes...
u should consider adding water Wetter it will help..
are u using the stock mechanical fan, or did u "upgrade" to electric? do u still have the stock fan shroud? or did u remove it?
u could consider removing your A/C condensor if u don't "need" it... that will help air get to the radiator....
trimming the bumper will help get air to both the FMIC and the radiator... some ppl will make 'ducts' to help redirect air as well... just like many cars have for their brakes...
Trending Topics
#8
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
i have the stock fan and shroud but the fans only purpose is cooling at idlle. the fan does not cot cool the engine at 60 mph cooling is done by air flow which i guess i will have to trim the bumper but i dont want to. is there no one out there who has an un trimmed bumper with out cooling problems. trimmed bumpers look like ****
#9
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
no under belly cover and no ac condensor or air pump
my intercooler is a greddy
this is obviously an air flow problem becaus e it only does it at cruse at 60 plus
my intercooler is a greddy
this is obviously an air flow problem becaus e it only does it at cruse at 60 plus
#10
always modding
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Mar 2005
Location: on a tiny island in the middle of a sea
Posts: 1,667
Likes: 0
Received 3 Likes
on
3 Posts
u can also try the "drifters hood"
basically u use big rubber "spacers" between the hood and the arm.. on the rear of the two bolts to "prop" the back end of the hood up... so all the hot air "drafts" up and out...
but our hoods are a little diff, but i'm sure u can improvise something...
i'm surprised it over heats at high speed.. u have all that air comin in from the hood scoop right down onto the engine itself...
are u sure u bled all the air out of the system after u flushed it?
if u don't wanna trim the bumper.. then u should consider buying a beefier radiator instead
u say it happens at "cruise" which means little engine load...imagine at wot
do u still have any cats? or straight exhaust?
basically u use big rubber "spacers" between the hood and the arm.. on the rear of the two bolts to "prop" the back end of the hood up... so all the hot air "drafts" up and out...
but our hoods are a little diff, but i'm sure u can improvise something...
i'm surprised it over heats at high speed.. u have all that air comin in from the hood scoop right down onto the engine itself...
are u sure u bled all the air out of the system after u flushed it?
if u don't wanna trim the bumper.. then u should consider buying a beefier radiator instead
u say it happens at "cruise" which means little engine load...imagine at wot
do u still have any cats? or straight exhaust?
#11
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
i will be getting a beefy rad later but i have a brand new one in there rite now
and supposadly the stock cooling in proper working order can handle up to 300 whp
and supposadly the stock cooling in proper working order can handle up to 300 whp
#12
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
straight exhaust. no cats
i may have to pull the w/p to see it the vains are rusted off but ther were ok 3 months when i did the rebuild. i guess i will have to trim
i was also thinking of fabing up a little scoop for the bottom of the radiator
i may have to pull the w/p to see it the vains are rusted off but ther were ok 3 months when i did the rebuild. i guess i will have to trim
i was also thinking of fabing up a little scoop for the bottom of the radiator
#17
Like Ghandi with a gun
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by turbine
why would not having an under belly cover cause me to over heat
that doesnt make sense to me
that doesnt make sense to me
Theres not really any reason to bump, you have the most logical and cheap answer. Sure... we can say somethign needs to be replaced... but wouldn't you rather it be something simple and easier to fix than "rebuild your engine"?
#18
Jesus is the Messiah
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Originally Posted by Ottoman
pure distilled water cools better then premix... premix is to prevent corrosion...
u should consider adding water Wetter it will help..
u should consider adding water Wetter it will help..
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
It also raises the boiling point! (Very importaint)
Water Wetter is a band-aid solution, and I doubt it will help if he is even overheating at 60mph.
are u using the stock mechanical fan, or did u "upgrade" to electric?
u could consider removing your A/C condensor if u don't "need" it... that will help air get to the radiator....
Originally Posted by Ottoman
u can also try the "drifters hood"
basically u use big rubber "spacers" between the hood and the arm.. on the rear of the two bolts to "prop" the back end of the hood up... so all the hot air "drafts" up and out...
basically u use big rubber "spacers" between the hood and the arm.. on the rear of the two bolts to "prop" the back end of the hood up... so all the hot air "drafts" up and out...
- - -
I reccomend looking into an underbelly pan, as mentioned. I also reccomend making sure your radiator is not clogged. As Ottoman said, if you dont 'need' it, go ahead and remove your A/C condensor. You might be looking at a need to upgrade your radiator!
#19
always modding
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Mar 2005
Location: on a tiny island in the middle of a sea
Posts: 1,667
Likes: 0
Received 3 Likes
on
3 Posts
Originally Posted by Tofuball
'premix' is also good to keep everything from freezing! ![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
It also raises the boiling point! (Very importaint)
Water Wetter is a band-aid solution, and I doubt it will help if he is even overheating at 60mph.
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
It also raises the boiling point! (Very importaint)
Water Wetter is a band-aid solution, and I doubt it will help if he is even overheating at 60mph.
I live in a desert so freezing isn't really a concern for me :P
Originally Posted by Tofuball
If installed correctly, it should be fine to use an e-fan, but if the car is overheating at 60, that obviously isnt the problem, it's the flow.
Originally Posted by Tofuball
Yeh, it would, but then you loose your A/C! :p
Originally Posted by Tofuball
Theres tons of threads on how much this mod sucks and doesnt work.
makes sense to me as well.. hot air rises.. hits the hood and flows up and back the out the gap in the hood... with the high velocity air rushing over.. i thought it would actually "draw" air as well.. cool air comes in the front.. displaces the hot air out the "gap"
maybe it's one of those things that works in theory and not in practice...
maybe I shouldn't bother popping my hood a couple km's before home to "aid" in cooling before shutting down either
#20
Jesus is the Messiah
![](https://www.rx7club.com/images/misc/15_year_icon.png)
I know what water wetter does, and you are certainly correct. However, to use that stuff to stop an existing overheating problem caused by a lack of flow is a band-aid solution to me :P
I think the best point against popping up the hood was made by Icemark, who mentioned that in an accident, the hood will go through the windsheild and streight for your neck :O
I think the best point against popping up the hood was made by Icemark, who mentioned that in an accident, the hood will go through the windsheild and streight for your neck :O
Last edited by Tofuball; 03-30-05 at 06:35 AM.
#24
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Jul 2001
Location: Northern California
Posts: 595
Likes: 0
Received 0 Likes
on
0 Posts
If your car is overheating, look to these components (many of which you may have already addressed)
Water Pump
Thermostat (dont take it out, put the CORRECT one in)
Belly pan (this is critical, ducting air properly makes a HUGE difference at speed)
Upgraded aluminum radiator (should be mandatory in my opinion)
Proper fan Function
Ive done LOTS of experimenting with ducting/belly pan stuff on my T2 with a FMIC and i found that sealing off all leaks and making sure air is traveling through the radiator and oil cooler was VERY IMPORTANT in keeping my cool temps. For reference, on an 80 degree day going 70 down the highway, water temp is 185 and oil temp is 185 in the pan.

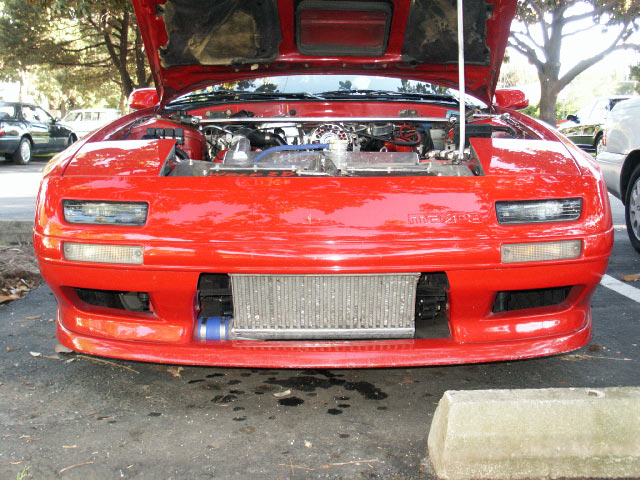

Cutting your front bumpet helps alot. It only looks like crap if you do it wrong. Take a look at mine, i cut 2" from the top, and 2" from the bottom of my bumper, but is spent a good amount of time drawing things out and making sure they would look right. Take a look......
Water Pump
Thermostat (dont take it out, put the CORRECT one in)
Belly pan (this is critical, ducting air properly makes a HUGE difference at speed)
Upgraded aluminum radiator (should be mandatory in my opinion)
Proper fan Function
Ive done LOTS of experimenting with ducting/belly pan stuff on my T2 with a FMIC and i found that sealing off all leaks and making sure air is traveling through the radiator and oil cooler was VERY IMPORTANT in keeping my cool temps. For reference, on an 80 degree day going 70 down the highway, water temp is 185 and oil temp is 185 in the pan.
Cutting your front bumpet helps alot. It only looks like crap if you do it wrong. Take a look at mine, i cut 2" from the top, and 2" from the bottom of my bumper, but is spent a good amount of time drawing things out and making sure they would look right. Take a look......
