O2 sensor wiring
Ok I searched and this question is not covered. I replaced my sensor with the universal one from autozone and when I plugged in the wire to the harness I noticed a copper braided ground wire in the harness side that was not hooked up to anything. Where does it go and what happens when it is not hooked up?
#2
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts

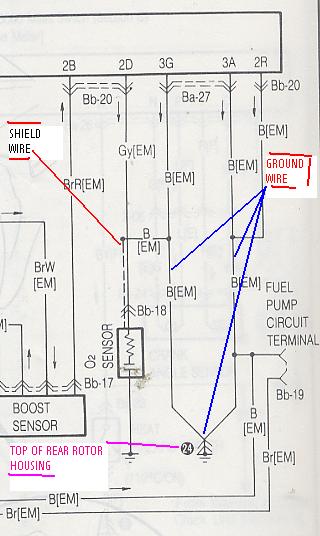

The shield terminates about six to ten inches from the ECU plug. It ties in with a black, pure black wire. That's the way I remember it. It does nothing for the 02 sensor reading except act as a rf shield. The 02 voltage is miniscule, as in milivolts being PRODUCED by the 02 sensor itself. Small voltgags like that are easily interferred with by outside sources. Like that heater/ac fan over there in the corner.
