Spraintz

iTrader: (1)

I just aquired a 91 Vert for $200...woohoo!!! All I need to do is bolt up a tranny to it.
I was wondering if anybody could get me the bolt thread size/pitch for all of the bell housing bolts, starter bolts, tranny crossmember bolst and the driveshaft bolts.

if i can get these suckers then this car is ready to run

Thanks

J-Rat

iTrader: (2)

Ive probably got all this crap just laying around in bags.. But I couldnt get you the sizes off the top of my head..

Spraintz

iTrader: (1)

thanks, I know it's a tough request i was just trying to avoid having to pull em off another car to size em up.

jhammons01

The is ONE......ONE Bolt that is DIFFERENT thread pitch from all the others. On the Passenger side or the Motor. That is all I remember from last year

Spraintz

iTrader: (1)

anybody got a copy of the Haynes manual? doesn't it list the bolt threads and lengths at the beginning of the chapters? or maybe it's just the torque #"s

jhammons01

It's in the FAQ

jhammons01

Here it is in the Archives

https://www.rx7club.com/2nd-gen-archive-72/master-list-thread-sizes-2nd-gen-nuts-bolts-367392/

Remember, Read the FAQ. Then read the Archives. Then go back and read the FAQ. Then Re-read the archives. Then post a Question if you still haven't found the answer.

This particular discussion is RX7 Qestion number 32. There are only 38 issues with RX7s, Learn the 37 other issues and then come bag on Noobs in the lounge...........

Spraintz

iTrader: (1)

i'm no noob, but don't I feel like the F'n A-hole

thanks

Spraintz

iTrader: (1)

ok, cool, i don't feel so stupid.

that is an awesome link but i didn't find the sizes for the tranny CROSSMEMBER bolts or the driveshaft bolts......

rotan20b

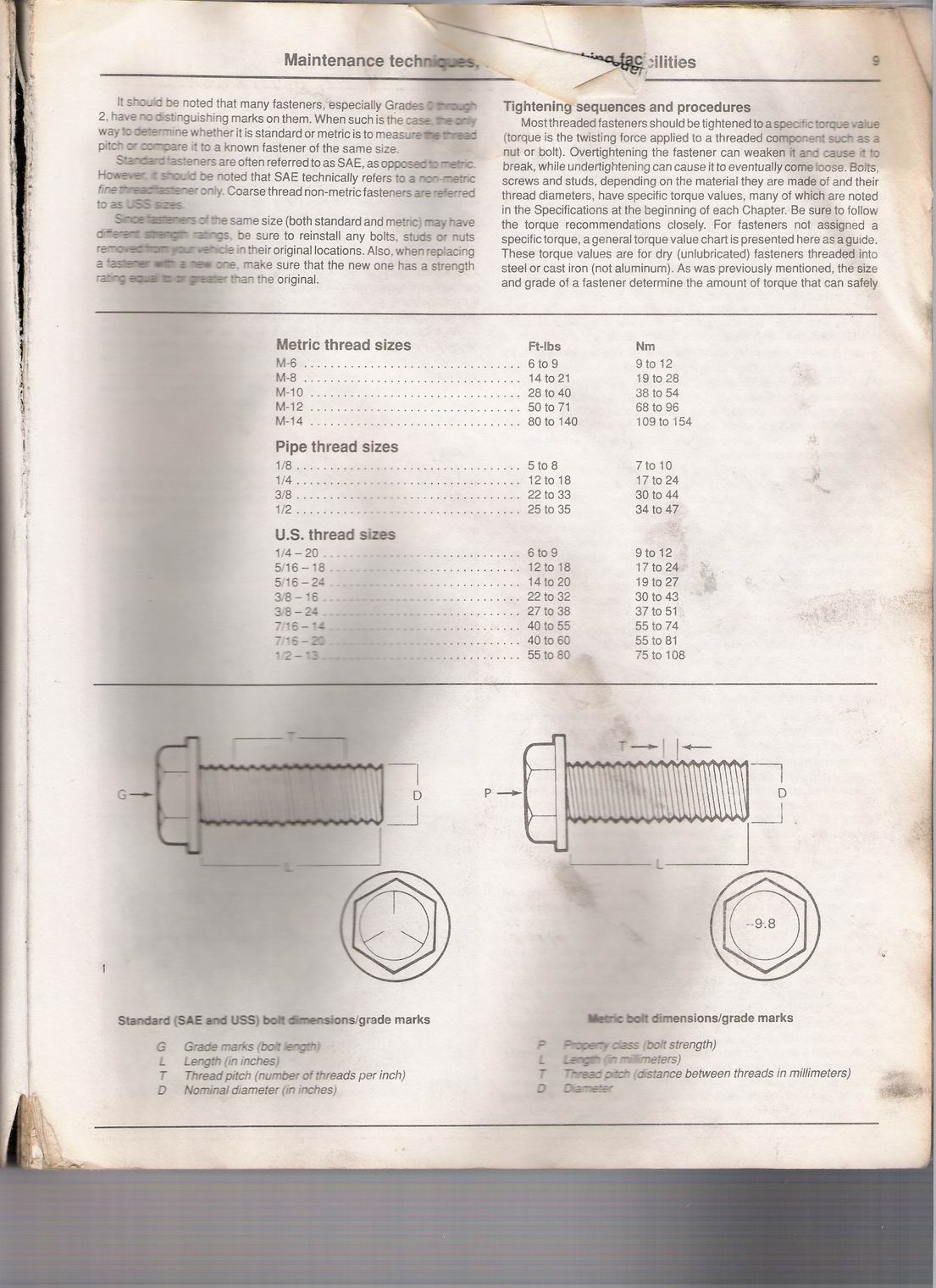

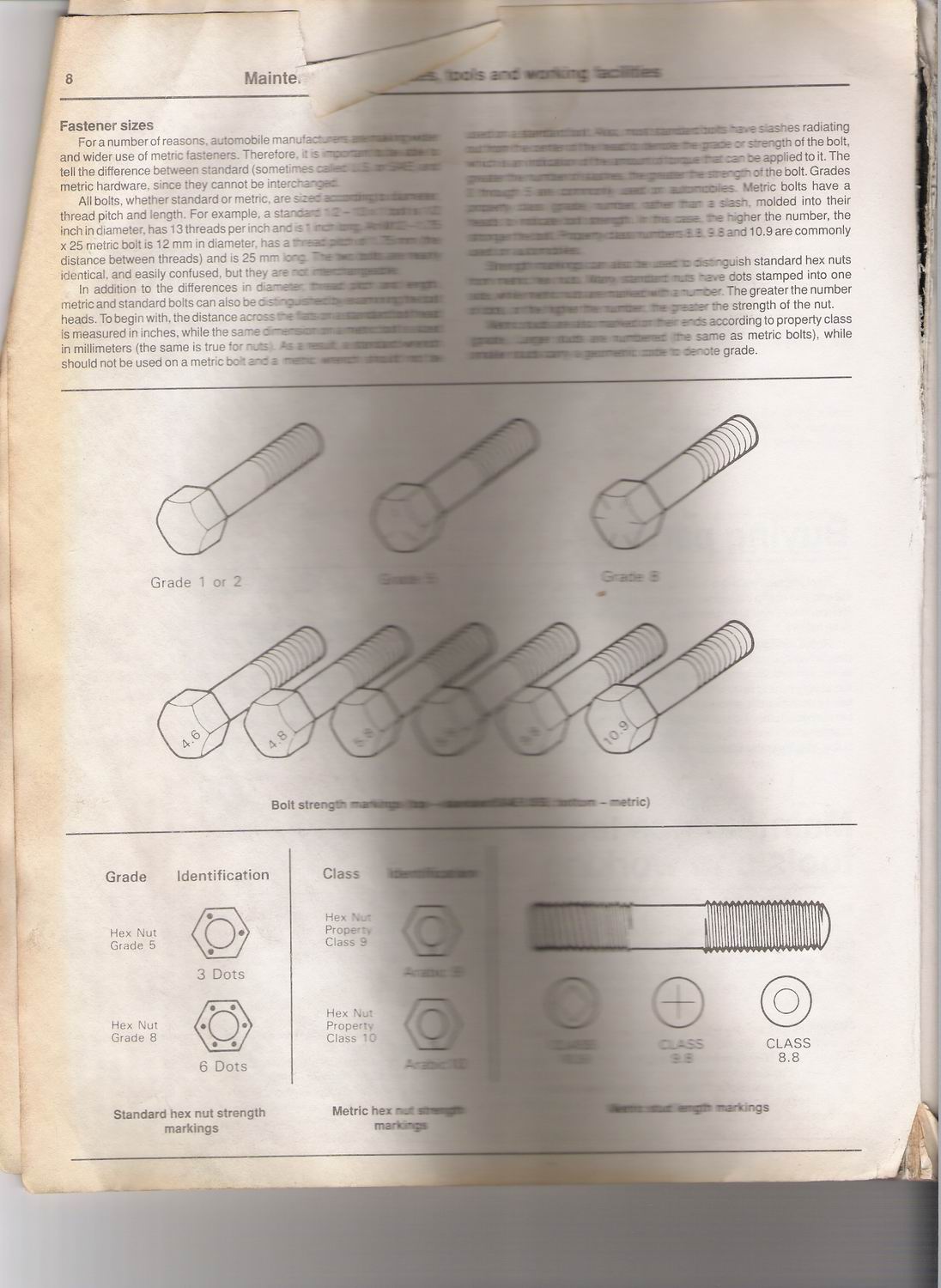

see scan page of manual, Ithink the bellhousing bolts are 10mm 1.25 pitch??

DerangedHermit

Yay for me actually doing something productive (first time ever).

Spraintz

iTrader: (1)

yeah, it's nice.

ever find out the sizes for the 4 bolts on the tranny crossmember and the 4 for the driveshaft?

powrdby13B

did u ever rtfm?

Spraintz

iTrader: (1)

why yes i did, i have both the NA and Turbo S5 FSM's and couldn't find a sizes anywhere for the tranny crossmember bolts. I have looked at the link above and although it is very nice could not find the sizes of the tranny crossmember bolts. i have searched using various terms only to find threads where others have asked the size of the tranny crossbember bolts but nobody had an answer. i have been around the forum awhile and don't usually post unless i absolutely can't find what i need. if i missed it somewhere and somebody could kindly point out the sizes for the tranny crossmember bolt i would be very grateful.

i was just trying to save myself the hassle of jacking up a car, pulling a bolt and taking it to get measured.

well, thanks anyway.
