Hi to all gurus of 7s!
I can't find the place where to connect a couple of plugs to...

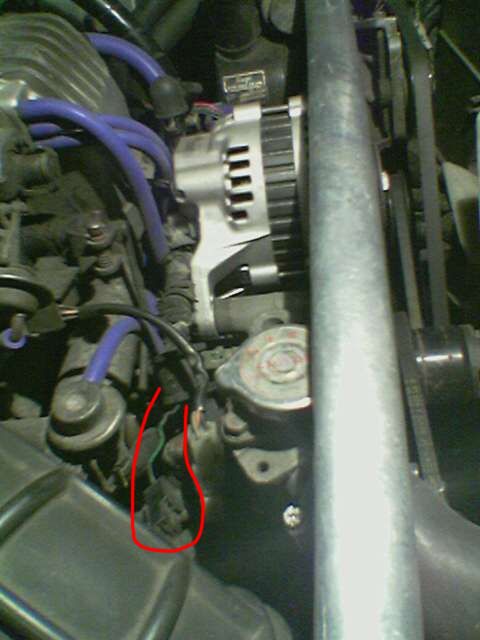

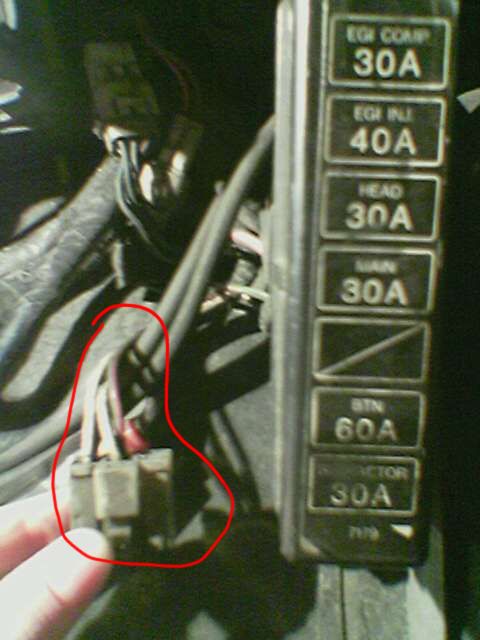

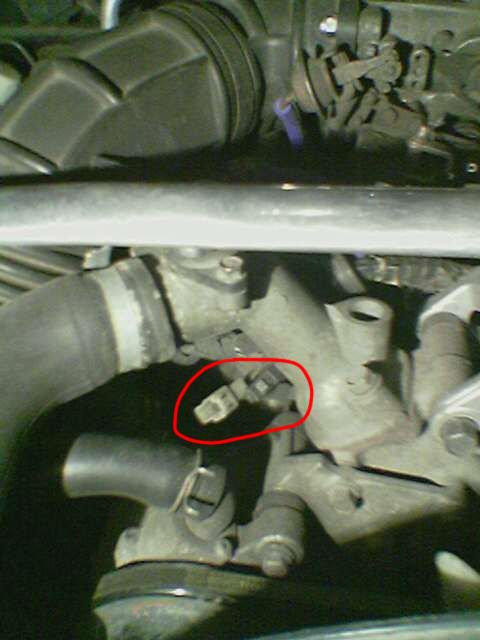

On first 3 pics there's a black mom-plug - black wire with green stripe... can't find where to connect it to...

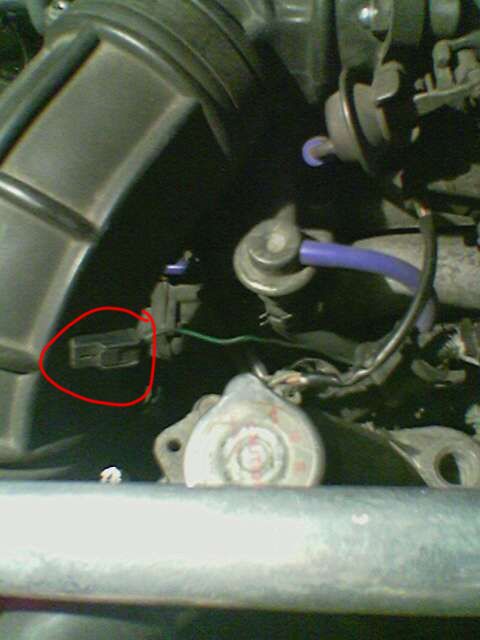

On the 4th pic there 2 plugs below the water pump which is unplugged and i don't know where are these suppose to be: one 2 pin white dad-plug and the second one is dirt, but looks like 1 pin black mom-plug...

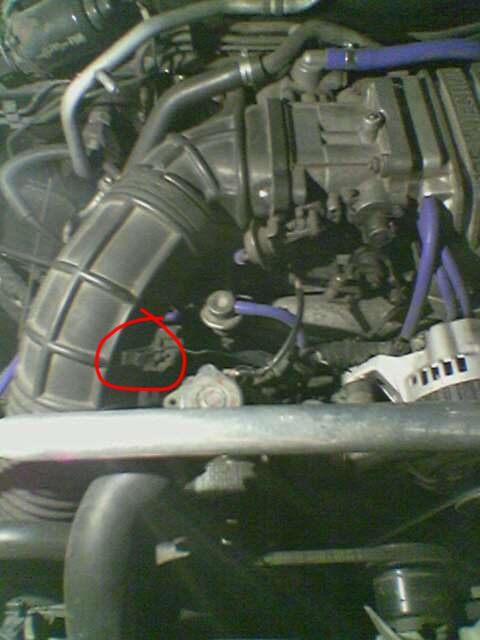

On the last pic there's a white mom-plug with 6 holes only 4 have contacts in them... it is located near the battery, right beside the green test-plug which looks quite like itself, but in green...
Thanks alot in advacne!
I can't find the place where to connect a couple of plugs to...
On first 3 pics there's a black mom-plug - black wire with green stripe... can't find where to connect it to...
On the 4th pic there 2 plugs below the water pump which is unplugged and i don't know where are these suppose to be: one 2 pin white dad-plug and the second one is dirt, but looks like 1 pin black mom-plug...
On the last pic there's a white mom-plug with 6 holes only 4 have contacts in them... it is located near the battery, right beside the green test-plug which looks quite like itself, but in green...
Thanks alot in advacne!
#2
What's the point??
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (6)
Join Date: Oct 2005
Location: Omaha, NE
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts
last one looks like the one for diagnostic use, it doesnt get plugged in, 4th pic white looks like it may be the alternator plug, and grn/blk wire on, im actually not sure, check TB- i currently dont have one for my car im rebuilding so i cant look
#3
I'm pretty sure that the green wire in the first three pics doesn't get plugged in, when i bought my car it was disconnected and i never found a place to connect it, but yours wasn't connected either and niether was my friends so i think you should be fine with leaving that unplugged. not too sure about the wire in the fourth pic, i can check my car and repost, and he's right about the wire in thefifth picture.
#7
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Aug 2003
Location: Kiev, UKRAINE
Posts: 255
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for your input guys!
Now i'm feeling better![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
White plug on the forth pic is not from Alternator... Alternator has it's own white plug and it's connected... So i'm still unsure what is it...
As for the last pic... It is not a diagnostic connector, because it's not green.. It is possibly a spare one for AAS which i don't have...
Thanks a lot once again!
Now i'm feeling better
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
White plug on the forth pic is not from Alternator... Alternator has it's own white plug and it's connected... So i'm still unsure what is it...
As for the last pic... It is not a diagnostic connector, because it's not green.. It is possibly a spare one for AAS which i don't have...
Thanks a lot once again!
