Question Need Help Immediately!!

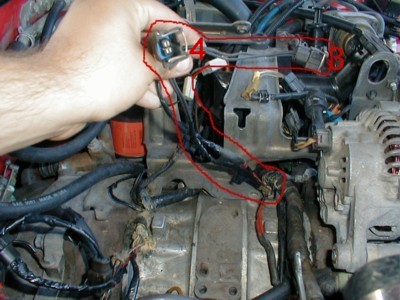

Ok I took out the injectors, rails and clips and now im trying to figure out which clips go to which injectors. I need to know where #1,#2,#3 and #4 injector clips go. the first pic is towards the firewall and the second pic is towards the drivebelts. Please help!
Old 09-26-02 | 06:57 PM
  #2
Turbo II FC's Avatar
Thread Starter
Total Balance is Key
iTrader: (14)

Joined: Jul 2002
Posts: 1,196
Likes: 6
From: Texas

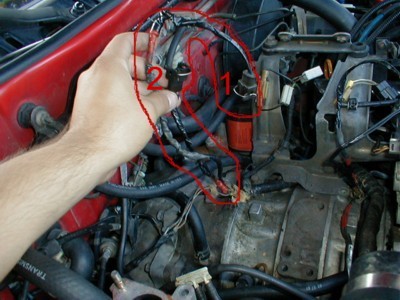

Heres the second pic.
Old 09-26-02 | 07:09 PM
  #3
Turbo II FC's Avatar
Thread Starter
Total Balance is Key
iTrader: (14)

Joined: Jul 2002
Posts: 1,196
Likes: 6
From: Texas
bump, I really need some help!
Old 09-26-02 | 07:34 PM
  #4
Turbo II FC's Avatar
Thread Starter
Total Balance is Key
iTrader: (14)

Joined: Jul 2002
Posts: 1,196
Likes: 6
From: Texas
Someone has to know. Pretty Please??
Old 09-27-02 | 04:20 AM
  #5
tweaked's Avatar
Rotary Enthusiast
iTrader: (4)

Joined: Jul 2001
Posts: 948
Likes: 1
From: Memphis, TN
ready??? I will refer to the clips by the numbers you have indicated.
#2 is the rear secondary injector and #1 is the front.
the secondary is the one that is easy to access. in the top of the intake.
#4 is the rear primary and #3 is the front. the primary injectors are the ones under the intake in the block.
good luck man
Old 09-27-02 | 04:24 AM
  #6
Turbo II FC's Avatar
Thread Starter
Total Balance is Key
iTrader: (14)

Joined: Jul 2002
Posts: 1,196
Likes: 6
From: Texas
Thanks alot man I really appreciate it. I knew someone had to know.
Old 09-27-02 | 07:31 AM
  #7
Josepi's Avatar
Despise Enmity

Joined: May 2001
Posts: 2,420
Likes: 0
From: Richmond, VA
Next time use masking tape to label everything you unplug .
