Need Help With Hoses

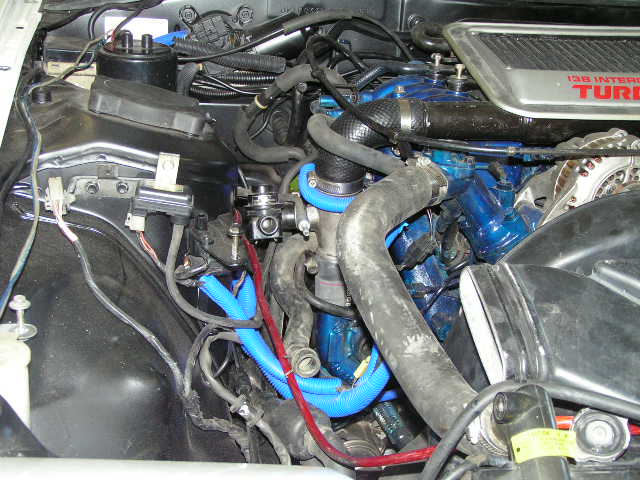

Just putting my motor back in my 88 t2 and cann't remember were these three hoses hock up to. Any help with this would be appraciated.
Last edited by jwelder; 06-28-06 at 01:37 PM.
#2
A - goes to the factory air box before the turbo (should be seeing the airflow into the turbo)
b - can't make out what you have in the pic
c - goes to the emissions device that was fed from the air pump,since you sans airpump I would rip the unit off the LIM and install a block off plate.
b - can't make out what you have in the pic
c - goes to the emissions device that was fed from the air pump,since you sans airpump I would rip the unit off the LIM and install a block off plate.
#3
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2005
Location: Medicine Hat, Alberta, Canada
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts

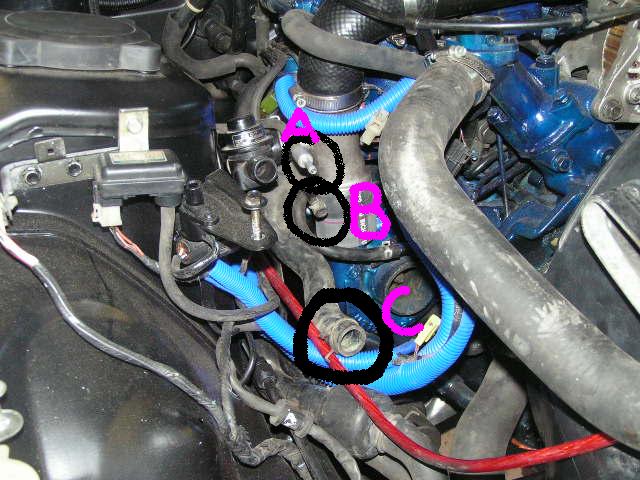

Thats what I tought about hose A & C. The hose that I marked B is the one that bothers me the most. It comes from the top of the motor and looks like it hooks up to the spider under the vacume swiches.
#5
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
A plugs into the back of the turbo inlet duct
C comes off the bottom of the ACV and attaches to the round plastci item just in front of it in the picture. From the round black plastic thing it goes into the right front fender where there is a muffler (silencer).
B is too hard to determine. You need to find it's other end and then we can figure it out. IF series five it MIGHT go to the turbo. Got me. Gotta know about it's other end.
C comes off the bottom of the ACV and attaches to the round plastci item just in front of it in the picture. From the round black plastic thing it goes into the right front fender where there is a muffler (silencer).
B is too hard to determine. You need to find it's other end and then we can figure it out. IF series five it MIGHT go to the turbo. Got me. Gotta know about it's other end.
