Need advice disassembling turbo - searched
#1
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: N Carolina
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Need advice disassembling turbo - searched
I'm new to turbo's, and I'm trying to port the wastegate on an s5 turbo. Problem is I can't get the hot side separated from the center section.
Things I've tried:
using the 2 captured bolts (under center oil ports) to push the two pieces apart.
liquid wrench on the seam of the two parts
fairly light tapping with a rubber mallet
light heating of the hot side with a propane torch and a then the rubber mallet
Any other advice or tricks for taking the turbo apart?
Thanks.
Things I've tried:
using the 2 captured bolts (under center oil ports) to push the two pieces apart.
liquid wrench on the seam of the two parts
fairly light tapping with a rubber mallet
light heating of the hot side with a propane torch and a then the rubber mallet
Any other advice or tricks for taking the turbo apart?
Thanks.
#3
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts

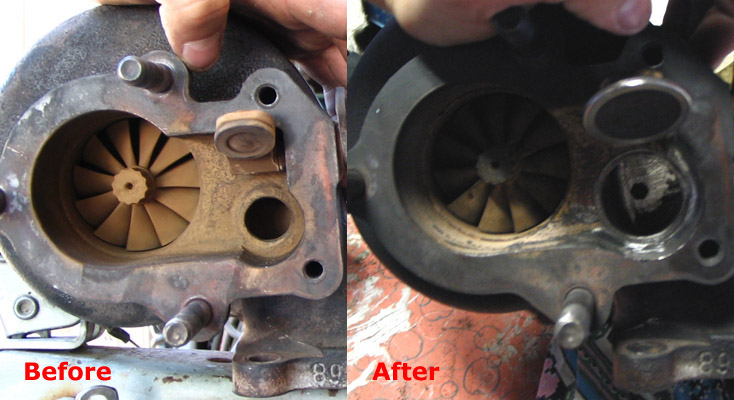

Actually that's not mine, mine looks way better...
Personally I would never port the wastegate with the housing on the turbo. There's too much risk of shavings getting into places they shouldn't and doing damage later on.
The two bolts under the oil ports have always worked for me. It can take quite a bit of effort but it should work. Onve they're pushing against the housing can you get them to turn at all?
Personally I would never port the wastegate with the housing on the turbo. There's too much risk of shavings getting into places they shouldn't and doing damage later on.
The two bolts under the oil ports have always worked for me. It can take quite a bit of effort but it should work. Onve they're pushing against the housing can you get them to turn at all?
#5
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: N Carolina
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
I torqued the bolts against the center section until I couldn't really turn the wrench any further - didn't want to trash the threads so I didn't try to put an extension on the wrench. It didn't budge.
I didn't want to go crazy with the hammer and break something.
I guess I'll give it another try tomorrow.
I didn't want to go crazy with the hammer and break something.
I guess I'll give it another try tomorrow.
#6
Lives on the Forum
Keep cranking - those bolts don't usually break.
They are special high-strength, high heat resistance bolts.
If you're really scared about the housing not coming apart, shoot some penetrant in the seam.
Be warned that all that stuff soaks into the housing, and it'll smoke and stink when you first get it up and running again!
-Ted
They are special high-strength, high heat resistance bolts.
If you're really scared about the housing not coming apart, shoot some penetrant in the seam.
Be warned that all that stuff soaks into the housing, and it'll smoke and stink when you first get it up and running again!
-Ted
#7
i couldnt get my housing off either...so i did the next best thing....stuffed enough paper towels in places u dont want shavings to go into....then when u remove the paper towels just make sure nothing falls in
Trending Topics
#8
Rotary Enthusiast
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by torean
i couldnt get my housing off either...so i did the next best thing....stuffed enough paper towels in places u dont want shavings to go into....then when u remove the paper towels just make sure nothing falls in
WORD
#10
Lives on the Forum
Originally Posted by lastphaseofthis
highjacket, need to swap my center shaft into a diffrent hot and cold side, with both cold side compressor, how do you get the shaft outta the center ?!?! :\
Swap the ENTIRE CHRA - they are all the same.
-Ted
#11
Becoming pure track...
iTrader: (1)
Join Date: Feb 2005
Location: Olympia, WA
Posts: 1,069
Likes: 0
Received 0 Likes
on
0 Posts
Sorry, question reguarding that turbo....
It looks a lot like the turbo I got off a first gen probe gt.
The turbo I got is an IHI RHB5 VJ-11 turbo. Are they similar? Just wondering. Thanks. Sorry for the hijack
It looks a lot like the turbo I got off a first gen probe gt.
The turbo I got is an IHI RHB5 VJ-11 turbo. Are they similar? Just wondering. Thanks. Sorry for the hijack
#13
Rotary Enthusiast
Join Date: May 2002
Location: Boston
Posts: 1,203
Likes: 0
Received 0 Likes
on
0 Posts
Hey yeah if you get that housing off and start porting dont go too crazy with that. I was told by numorous ppl that you can pretty much port all you want up untill that flapper door diameter and turns out that if you go to large (like i did) you can **** up that flapper door from sealing and have boost issues.
So dont go crazy with it.
So dont go crazy with it.
#14
So are you guys saying that the S4 center section and hot/cold side are the same as the S5? If i have a blown S5 turbo lying around and a perfect S4 can i take them apart and use the exhaust housing from the S5? this way i could use the manifold and turbine housing with the dual wastegate ports from the S5?
#15
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
I've always had success removing the hot-side by using the bolts to put some tension onto it, then wacking it with a hammer several times. PB Blaster makes the process go a lot easier. If you are REALLY stuck then you can heat the hotside with a torch.
#16
Resident autoglass pro
iTrader: (1)
Join Date: Jul 2003
Location: edinburg PA
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RylAssassin
Hey yeah if you get that housing off and start porting dont go too crazy with that. I was told by numorous ppl that you can pretty much port all you want up untill that flapper door diameter and turns out that if you go to large (like i did) you can **** up that flapper door from sealing and have boost issues.
So dont go crazy with it.
So dont go crazy with it.
#17
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: N Carolina
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the replies. I cranked down (er.. up?) on the two bolts further, and it came loose. Made a bunch of popping noises that had me a little worried. Usually when I resort to brute force I wind up breaking something - exhibit A would be one of the studs that bolts up the DP.
Used paint on the flapper door to figure out how much to port. Started grinding with a dremel, but I need to get a die grinder with a longer bit to finish it up.
Used paint on the flapper door to figure out how much to port. Started grinding with a dremel, but I need to get a die grinder with a longer bit to finish it up.
#18
Lives on the Forum
Originally Posted by Rx7TyreBurna
Sorry, question reguarding that turbo....
It looks a lot like the turbo I got off a first gen probe gt.
The turbo I got is an IHI RHB5 VJ-11 turbo. Are they similar?
It looks a lot like the turbo I got off a first gen probe gt.
The turbo I got is an IHI RHB5 VJ-11 turbo. Are they similar?
If you're talking similar because you can swap parts, then it's NO.
-Ted
#19
Lives on the Forum
Originally Posted by Spoolerr
So are you guys saying that the S4 center section and hot/cold side are the same as the S5? If i have a blown S5 turbo lying around and a perfect S4 can i take them apart and use the exhaust housing from the S5? this way i could use the manifold and turbine housing with the dual wastegate ports from the S5?
The only thing different is the turbine housing and the oil drain pipe.
Otherwise, the compressor housing, the compressor wheel, the center housing, the turbine wheel (and shaft) are all identical.
-Ted
#20
I was getting ready to port my s4 turbo wastegate. Didn't have any trouble using the 2 bolt method to seperate them but I noticed a crack in the turbine housing where it bolts to the centre housing. Also noticed a crack inside across the thin vein next to where the turbine wheel turns. Is this housing trash? Sorry, no way to post picks at this time.
