N374 CEL codes
#1
![AZ](https://www.rx7club.com/images/icons/az.jpg)
So, long story short, my N370 ECU bit the dust. I was able to get my hands on an N374 locally, and it works great so far. However, I noticed the CEL never comes on, and upon reading, it never will. So what do people do in Japan for a CEL? And is the CEL really necessary on this car? I suppose it would be nice to be able to pull codes on it...
#7
Exactly, the ECU is not smart enough to be of any use as far as I can see. I suppose if you were aiming for the best gas mileage it may be of some use. I personally don't care if my TPS or my IAT is bad because theres no way in hell I'm going to replace them. Theres no narrow band O2 so that doesn't matter. It won't be able to detect a bad injector, or plugs, fuel pump, etc.
The main sensors on the car almost never go bad (AFM, MAP). If the OMP goes bad the car will be in limp mode and you'll feel it. I'm pretty sure theres still a way to retrieve codes with that ECU though, I think you have to connect a test light to one of the diag plugs on the shock tower and retrieve the codes. I know there's a thread that explains how to do it as I remember coming across it in a search.
The main sensors on the car almost never go bad (AFM, MAP). If the OMP goes bad the car will be in limp mode and you'll feel it. I'm pretty sure theres still a way to retrieve codes with that ECU though, I think you have to connect a test light to one of the diag plugs on the shock tower and retrieve the codes. I know there's a thread that explains how to do it as I remember coming across it in a search.
Trending Topics
#8
Moderator
![](/images/misc/20_year_icon.png)
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,989
Received 2,688 Likes
on
1,903 Posts
if you look in the FSM there is a way to get the codes with a pair of lights or voltmeters, this will work on the N370 and N374....
or if you had the code reader that would work too
the JDM ecu has no light, but it does have the same diagnostic connector as the US spec
or if you had the code reader that would work too
the JDM ecu has no light, but it does have the same diagnostic connector as the US spec
#12
Exactly, the ECU is not smart enough to be of any use as far as I can see. I suppose if you were aiming for the best gas mileage it may be of some use. I personally don't care if my TPS or my IAT is bad because theres no way in hell I'm going to replace them. Theres no narrow band O2 so that doesn't matter. It won't be able to detect a bad injector, or plugs, fuel pump, etc.
The main sensors on the car almost never go bad (AFM, MAP).
The main sensors on the car almost never go bad (AFM, MAP).
#14
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts

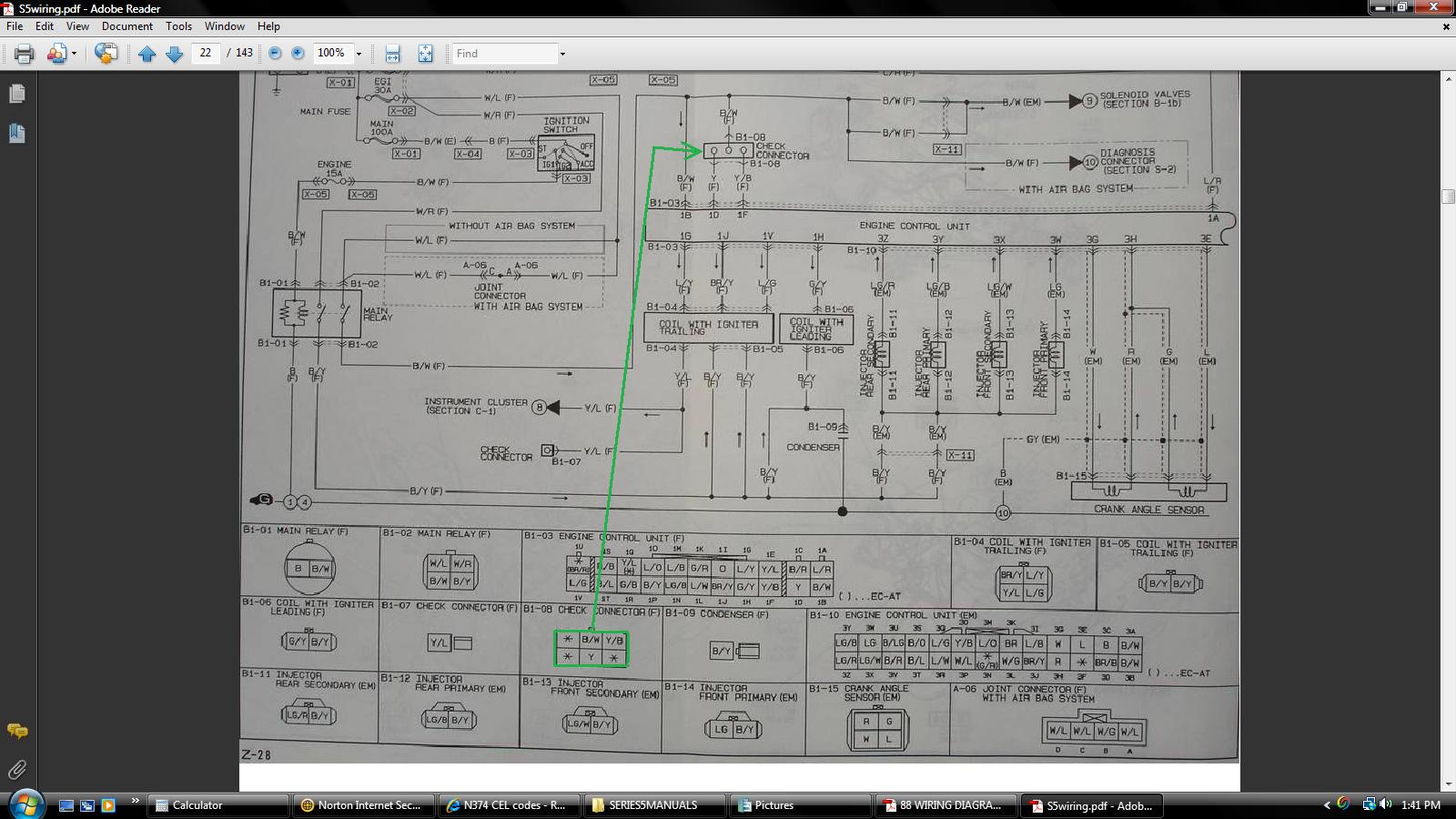

In the area of your LEAD coil assy there is a GREEN six scoket elect plug called a Check Connector and it's used for downloading fault codes.
It has three wires. One wire is black/white and if you use a couple of common LED's from Radio Shack, that black/white wire will power the LED's.
The other two wires in that connector are from the ECU and pulse a ground to the LED's when the ECU sees a fault.
So you buy two LEDs from Radio Shack. They have two wires each. One wire will be red and you will splice both red wires of the two LED's together and put a spade connector on the end. Then insert that single spade into the socket of the green check connector where the black/white wire is.
Now you have two wires left from the two LEDs. Put a spade connector on each of those two wires. Insert those two spades into the sockets of the green check connector where the other wires in the green connector are.
Then you ground the single wire that is the Initial Set Coupler. That is a green single wire connector near the LEAD coil assy.
Now with key to ON if a fault exists, the two LEDs will blink a code.
I've never done this on a series five car so I'm assuming it will work.
Someone else can explain the codes and which LED goes where in the green check connector. I'm tired right now and wanna do something else with my time.
Read this and see if it helps explain things a bit more: http://fc3spro.com/TECH/HOWTO/ERRORC...KI/kerror.html
EDIT: I meant to post this instead. It's how to make a LED check light assy for series four cars. You'd make yours the same way. http://www.teamfc3s.org/info/article...odes/main.html
It has three wires. One wire is black/white and if you use a couple of common LED's from Radio Shack, that black/white wire will power the LED's.
The other two wires in that connector are from the ECU and pulse a ground to the LED's when the ECU sees a fault.
So you buy two LEDs from Radio Shack. They have two wires each. One wire will be red and you will splice both red wires of the two LED's together and put a spade connector on the end. Then insert that single spade into the socket of the green check connector where the black/white wire is.
Now you have two wires left from the two LEDs. Put a spade connector on each of those two wires. Insert those two spades into the sockets of the green check connector where the other wires in the green connector are.
Then you ground the single wire that is the Initial Set Coupler. That is a green single wire connector near the LEAD coil assy.
Now with key to ON if a fault exists, the two LEDs will blink a code.
I've never done this on a series five car so I'm assuming it will work.
Someone else can explain the codes and which LED goes where in the green check connector. I'm tired right now and wanna do something else with my time.
Read this and see if it helps explain things a bit more: http://fc3spro.com/TECH/HOWTO/ERRORC...KI/kerror.html
EDIT: I meant to post this instead. It's how to make a LED check light assy for series four cars. You'd make yours the same way. http://www.teamfc3s.org/info/article...odes/main.html
#16
HAILERS
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
Remember, I said I'd never done this to a series five myself, but the last link shows how to make a checker out of two LED's from radio shack. Cost is very, very small.
So if it works, then look at the series five list of codes and not the series four list of codes. I assume the LED's will blink if you short the Initial Set Coupler and have the key to ON, engine OFF.
Let us know if the LED'S do blink a code on your N374
So if it works, then look at the series five list of codes and not the series four list of codes. I assume the LED's will blink if you short the Initial Set Coupler and have the key to ON, engine OFF.
Let us know if the LED'S do blink a code on your N374
#18
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (12)
Join Date: Jul 2007
Location: New Jersey
Posts: 511
Likes: 0
Received 0 Likes
on
0 Posts
Not sure if anyone is still wondering, But IT IS POSSIBLE to pull codes using the two-light method with a N374.
I've done it on my S5 TII running that ecu. Its the best $3 I've ever spent on the car. Use that writeup from Hailers, Thats what I used.
I've done it on my S5 TII running that ecu. Its the best $3 I've ever spent on the car. Use that writeup from Hailers, Thats what I used.
