Is this a N/a rotor i just bought?
#1
Rpm abuser
Thread Starter
Join Date: Oct 2003
Location: New Port Richey, FL
Posts: 780
Likes: 0
Received 0 Likes
on
0 Posts
Is this a N/a rotor i just bought?

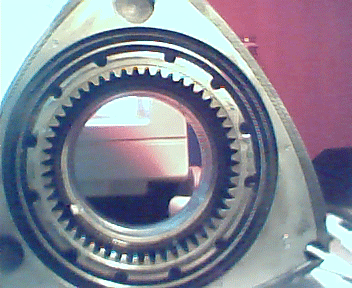

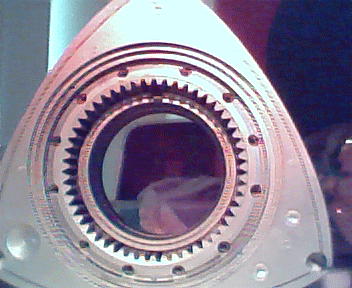

I just bought another rotor, i was wondering why it looks slightly diff from my old one that was messed up. See pics below. The left one is my new rotor that just came in. and the right one is the old one that was destroyed. Notice the new one has 2 black holes and the old one only has one black hole with 2 smaller ones. hmm... what do u guys think. there both stamped "C".
Last edited by Rx7MPGUY84; 03-03-05 at 04:37 PM.
#2
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
I don't think those have anything to do with the rotor at all man... if you want to know look at the impressions on the rotor faces... if theyre different sizes/shapes then it's a different compression rotor.
--Gary
--Gary
#3
The mystery of the prize.
those drilled spots are from balancing the rotor.

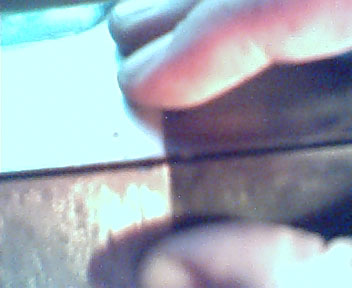

It looks to me like your new one has been machined for larger apex seals judging from the photo, are you aware of this?
It looks to me like your new one has been machined for larger apex seals judging from the photo, are you aware of this?
#5
Rpm abuser
Thread Starter
Join Date: Oct 2003
Location: New Port Richey, FL
Posts: 780
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by pengarufoo
those drilled spots are from balancing the rotor.
It looks to me like your new one has been machined for larger apex seals judging from the photo, are you aware of this?
It looks to me like your new one has been machined for larger apex seals judging from the photo, are you aware of this?
Last edited by Rx7MPGUY84; 03-03-05 at 05:00 PM.
#6
Sharp Claws
iTrader: (30)
the "c" is the wieght of the rotor, good that it matches your old one so you will have a matched set to the other rotor assuming it wasn't rebuilt with mismatched parts. the way to tell if it is correct is by measuring the depth of the relief casting in the rotor faces. if your new one matches the old ones then you are good to go.
the relief is a bit more shallow on an n/a, those both look like S4 turbo rotors, am i correct?
the relief is a bit more shallow on an n/a, those both look like S4 turbo rotors, am i correct?
#7
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
I can tell they're both S4 for sure... I say measure the depth... the new one looks shallower, as in an N/A and the old one looks deeper like a turbo... but the picture is an odd angle too.
--Gary
--Gary
Trending Topics
#10
Rpm abuser
Thread Starter
Join Date: Oct 2003
Location: New Port Richey, FL
Posts: 780
Likes: 0
Received 0 Likes
on
0 Posts
i think its diff. now that i look at it the new one does in fact look deeper but maybe its just me. im gogin to take it somewhere and see. sad part is, kevin landers sent it to me. from rotaryressurrection. i already emailed him about it earlier today. still no response
#11
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
He'll be cool about it man, just make sure it's not what you ordered by measuring... Kevin said he doesn't do the teardown on almost any of the parts he sells, he pays people sometimes to part down a car... in which case someone else might have shipped you the wrong one... so it doesn't reflect directly on HIS knowledge, I'm SURE he knows what an N/A vs Turbo rotor looks like! lol
--Gary
--Gary
#12
Rpm abuser
Thread Starter
Join Date: Oct 2003
Location: New Port Richey, FL
Posts: 780
Likes: 0
Received 0 Likes
on
0 Posts
i figured that much about him knowing. Any special way to measure depth?

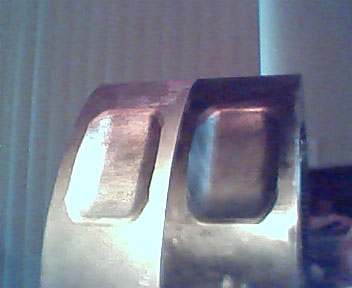

Just for letting people know. the silver one is the old one and the brownish one is the new one. I hope u knew that people. thanx
Just for letting people know. the silver one is the old one and the brownish one is the new one. I hope u knew that people. thanx
#13
Rpm abuser
Thread Starter
Join Date: Oct 2003
Location: New Port Richey, FL
Posts: 780
Likes: 0
Received 0 Likes
on
0 Posts
okay i checked and rechecked. i guess there both t2. god knows why the front looks somewhat diff. the impressions on the sides looks about the same. I took a peice of paper and cut it the size of the old one, then i made it fit the inside. I then put it in the new one and it seemed to be all lined up. kind of a ghetto way to chekc. but its the only way i could think of.
#14
Carter 2.0
Kevin Landers!!!! That thief!!!
Kevin know whats going on. There was a thread 2 weeks ago about this same thing by Wankel7 (search) The two rotors looked completly different yet were both for a S4.
You have the right part.
Kevin know whats going on. There was a thread 2 weeks ago about this same thing by Wankel7 (search) The two rotors looked completly different yet were both for a S4.
You have the right part.
#15
Rpm abuser
Thread Starter
Join Date: Oct 2003
Location: New Port Richey, FL
Posts: 780
Likes: 0
Received 0 Likes
on
0 Posts
sadly enough, i bought my upgraded turbo from wankel7. there for i blame him cuz he musta umm made me think that kevin landers messed up. or something. I never blamed kevin for anything, just for the record.
