N/a Harness,TII engine. Depin 1r.Color???
I tried finding the Pin out of the Engine Harness(EM,whatever you call it).
I got the TII ECU In on my N/A harness and would like to Know what color Wire PIN 1R is,so I can depin it.(cut it.).
This of course is so I don't Retard the timing when using the power steering ...TII engine on a N/a Harness.
Thanks Gents.There are about seven pages of Info,but I can't See crap on a laptop after 10 minutes!
I got the TII ECU In on my N/A harness and would like to Know what color Wire PIN 1R is,so I can depin it.(cut it.).
This of course is so I don't Retard the timing when using the power steering ...TII engine on a N/a Harness.
Thanks Gents.There are about seven pages of Info,but I can't See crap on a laptop after 10 minutes!
07-28-09, 06:13 PM
#4
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 133 Likes
on
114 Posts
Thanks Hailers2..(are you like MINI Hailers or did you just get Tired of Being the Original Hailers,and you are Incognito??..LOL!)
Let it Be known I have an S4 N/a Car with an S5 Keg TII(s4 electrical components) and an FD upper with TB.
RRTEC..I am gonna need a set of those Side lenses(Fr and rear)..you need any Parts?Trade?/.Lmk,Thanks.
Just out of Curiosity Hailers2..what color is LG?/is that Light green?( the car is 15 miles away.)
Thanks Gentlemen.STYX.
Let it Be known I have an S4 N/a Car with an S5 Keg TII(s4 electrical components) and an FD upper with TB.
RRTEC..I am gonna need a set of those Side lenses(Fr and rear)..you need any Parts?Trade?/.Lmk,Thanks.
Just out of Curiosity Hailers2..what color is LG?/is that Light green?( the car is 15 miles away.)
Thanks Gentlemen.STYX.
07-28-09, 06:58 PM
#5
Rotary Freak
Light Green.

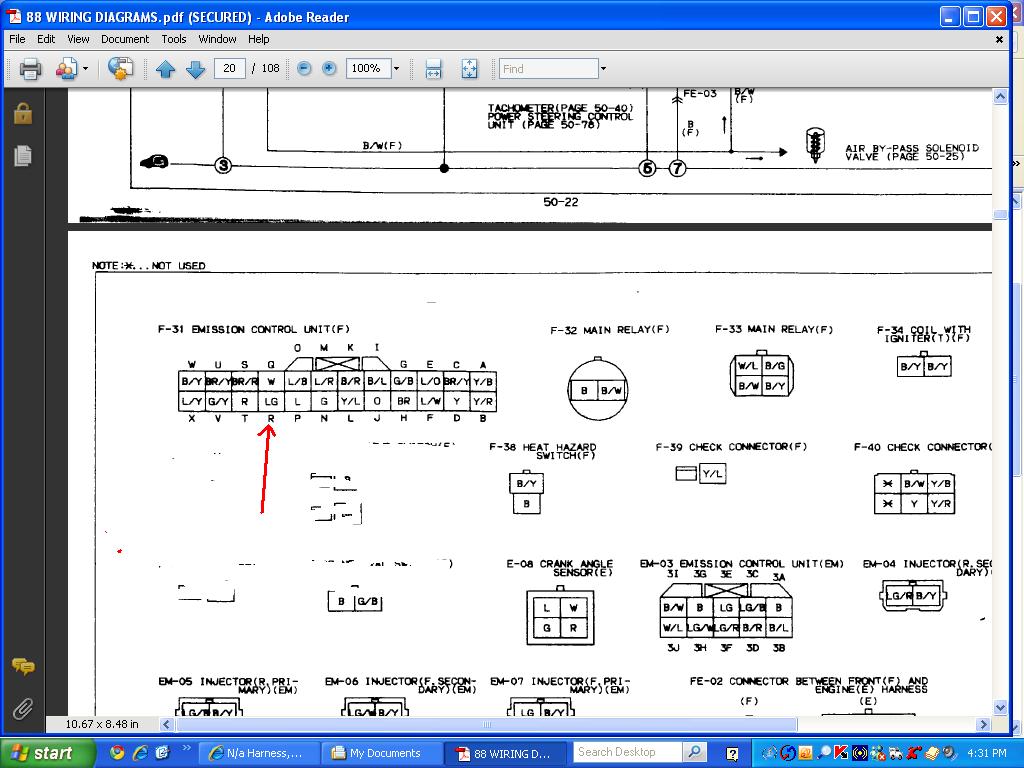

You look at the jpg I attached viewed from the WIRE side of the plug. Japs count from the right to the left in a up/down fashion.
Ah, man, you blew my cover. I didn't think anybody would figure out, HAILERS is HAILERS2 and HAILERS2 is HAILERS. This is due to losing my HAILERS password which I logged on using AOL and then changing my browser to ATT.NET. Matters not, I can log on as HAILERS2 and muddle things up just as good as HAILERS.
You look at the jpg I attached viewed from the WIRE side of the plug. Japs count from the right to the left in a up/down fashion.
Ah, man, you blew my cover. I didn't think anybody would figure out, HAILERS is HAILERS2 and HAILERS2 is HAILERS. This is due to losing my HAILERS password which I logged on using AOL and then changing my browser to ATT.NET. Matters not, I can log on as HAILERS2 and muddle things up just as good as HAILERS.
