BDoty311

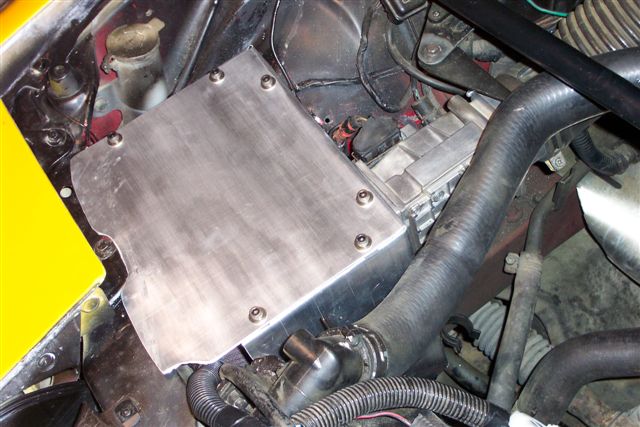

Ok finally got around to re-doing this one. Here are some pics of my new airbox that was made for around $30 or less. Cant take credit for it though, my dad made it, but enjoy the pics.

BlackRx7

that looks good more pics would be nice, I like how it has the afm completely level.....

BDoty311

BDoty311

BDoty311

ilike2eatricers

very nice. I like the rivets. Very clean!

DAN CARWIN

is their a BIG difference between that and stock?

ilike2eatricers

The difference is that you can fit a cone filter but I dont think there would be a performance gain unless you had cold air ducted into the air box.

BDoty311

Ya I took some pics of my hole, but the pic turned out way fuzzy. Look at my avatar, I have a hole behind the FTP lense hole. You can literally see the filter from the FTP hole, so its getting cold air too.

1987RX7guy

iTrader: (3)

nice work man. It looks CLEAN

How about we compare air temps? lol
j/k

BDoty311

Thanks, maybe later. The only thing Im concerned about is not getting enough air, so I might do alittle more cutting metal.

SpeedyRotary

Looks better in person, I want one now! Hook it up on a free one huh?

BDoty311

Thanks Richard, you should try and make one, its not too hard. Get some card board and cut it to fit, then trace the pattern onto the AL and cut it to shape. Then bend it so that it fits. Thats about it. Then get some bolts or something to hold the lid to the box for access.


BTW- A general rule of thumb on n/a motors is 1% hp for every 10*F. For turbos it should be more because the difference gets "boosted" and amplified.

steviep_

thats what i was going to do when i get my filter in the mail
i cant decide between a lid or sealing it to the hood though
whats easier and or more effective?

Kim

Looks nicer than mine but it would be a good idea to flip your AFM 90 degrees so that the ecu recieves correct numbers

BDoty311

Kim, Im not trying to be an ***. But does anybody have any proof that having it sideways affects the metering of the airflow? Whenever your holding it, gravity doesnt do anything to the door, so why would it matter when it is installed on your car?

jacobcartmill

iTrader: (6)

sorry i thought that was really funny.


dont mind me, just post whorring through.

1987RX7guy

iTrader: (3)

If you can't see how it would mess with the input to the ECU you need a little help. I have run the car like that for a while and nothing happened. But remember we have a safety margin from the stok ECU so even if we were running a tad lean or rich we couldn't tell. I would guess a dyno test with a wide band could show some proof. :-/

Santiago

Kim

You arent??? J/K
I dont really know, but im guessing that a "hanging" flapperdoor would need more vaccum to be pulled open than a horizontally one. I had mine like that for awhile but was told that it would give wrong numbers to the ECU so I changed the setup, because im a bit paranoid when it comes to my engine, I didnt feel any difference either, im just playing it safe

Relisys190

iTrader: (4)

Nice airbox man. very well made, similar one i've got done.

On the subject of the AFM being mounted, I've had mine mounted similar to Bdoty's and on several occasions noticed a slight hesitation in revrange -4500-5000- rpms. I than remounted the AFM with "black box" facing upwards and the hesitation quickly vanished.

-Markus

"I've not seen it since" the hesitation that is.

NZConvertible

I know this is an old post, but... Hold the AFM level (like stock) and shake it up and down like the car was going over bumps. Nothing happens. Not turn it sideways and repeat. The flap moves up and down a bit. An AFM that changes it's reading as the car moves on it's suspension is not a good idea...
