awddrift4

I'm making a thread to post pictures and maybe videos fixing my 1990 GXL.
i'm going to make my car drivable again [hopefully] and thinking about making vids and taking pics of the whole process.
starting off with the tranny... then the brakes.. then whatever comes next
please bare with me cause if i ask you guys some stupid questions

thanks for viewing, pics will be on tomorrow when it is light outside

katkaroto

is there any major issues that arent covered? first of all... dont post unless you've searched for an answer. but its always good to post if its something that hasnt been covered to an extent of better understanding. good luck

jjcobm

iTrader: (18)

looking forward to seeing the work being done.....

awddrift4

calm down
i've searched and haven't really found a thread involving someones transmission turning neutral into reverse and making 1st and 2nd engine killing gears and all other gears inaccessible.

but now i'm uploading the first video to both Youtube and Photobucket [don't know which will be better to do, but i don't really care lol] youtube just takes forever

here is the vid on youtube
-and-
here is my photobucket where i will post the rx7 stuff also

jake1191

iTrader: (1)

either way your going to need a new trans

awddrift4

well i got the car moved to the garage. now to take more pics and vids of everything

and before i go to agreeing i need a new trans, i need to find out what went wrong with this one.

awddrift4

well i got the Exhaust and the Driveshaft off
the exhaust was a pain in the ***, such a tight space lol [but not as tight as the subaru]
and then i pulled the driveshaft. and i learned that the previous owner didn't put in all the bolts [only 3 were on the driveshaft!!] and the Heatguard was torn to hell and back

from the photos..

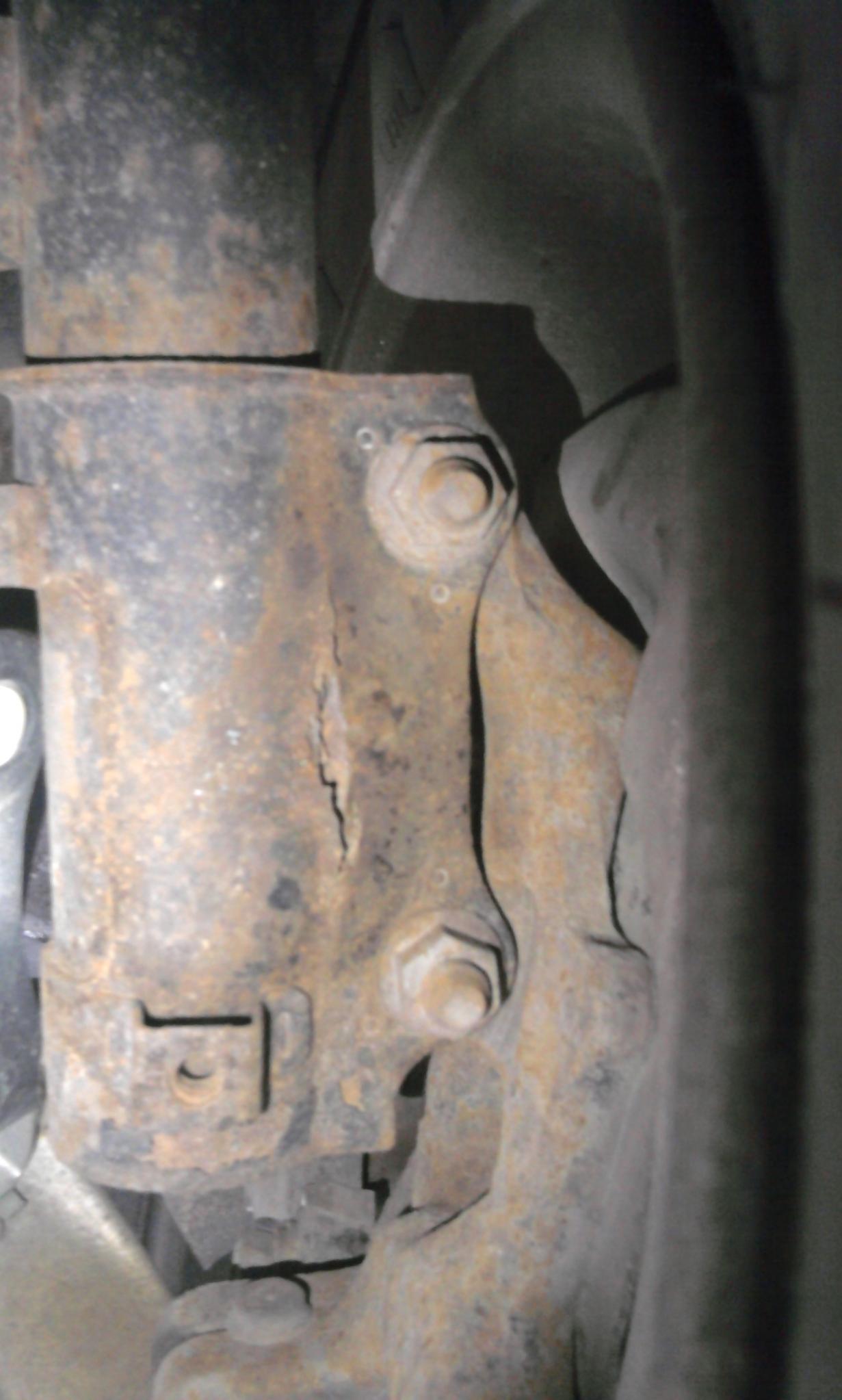

you can see the hole going thru my strut

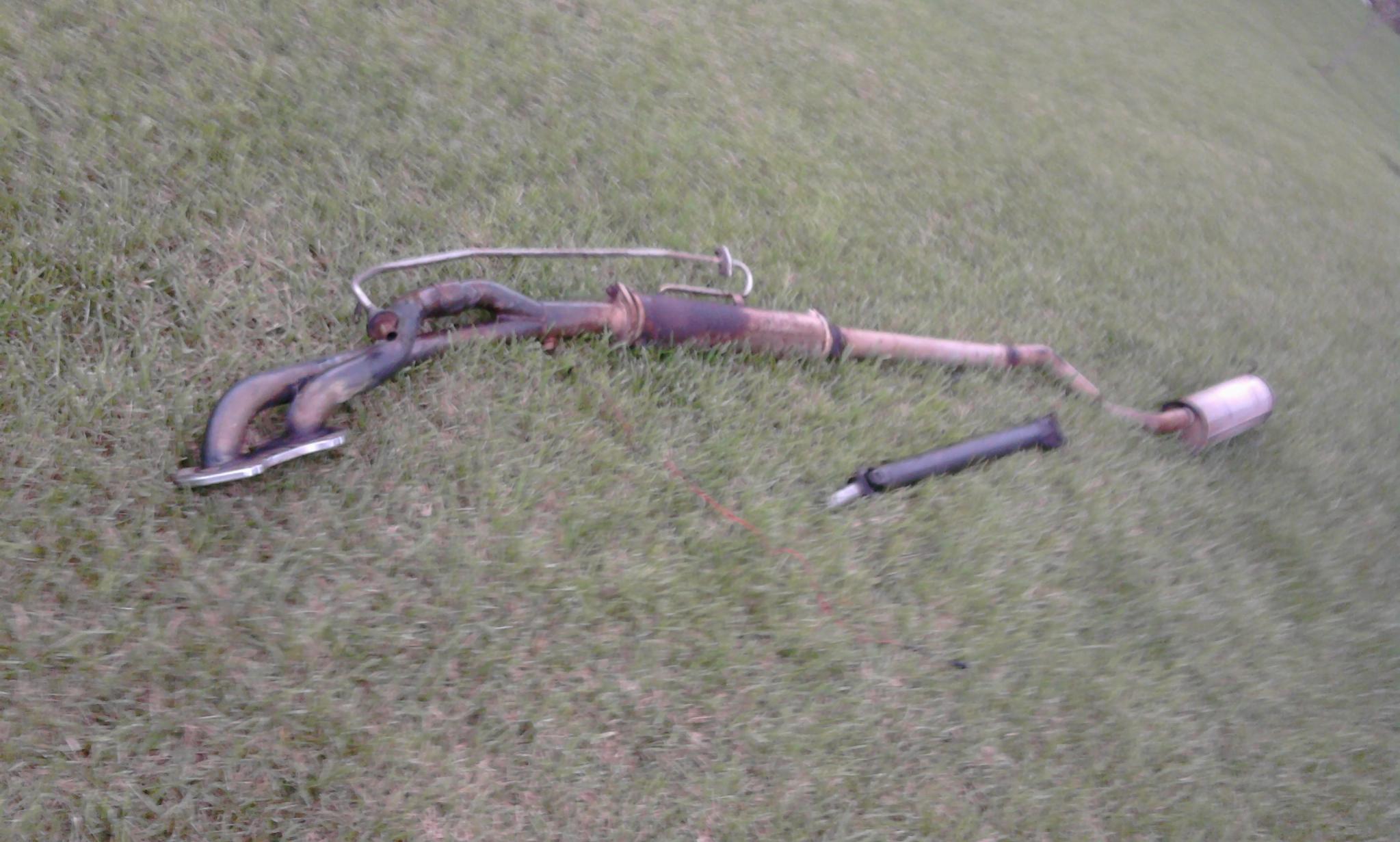

my exhaust and driveshaft

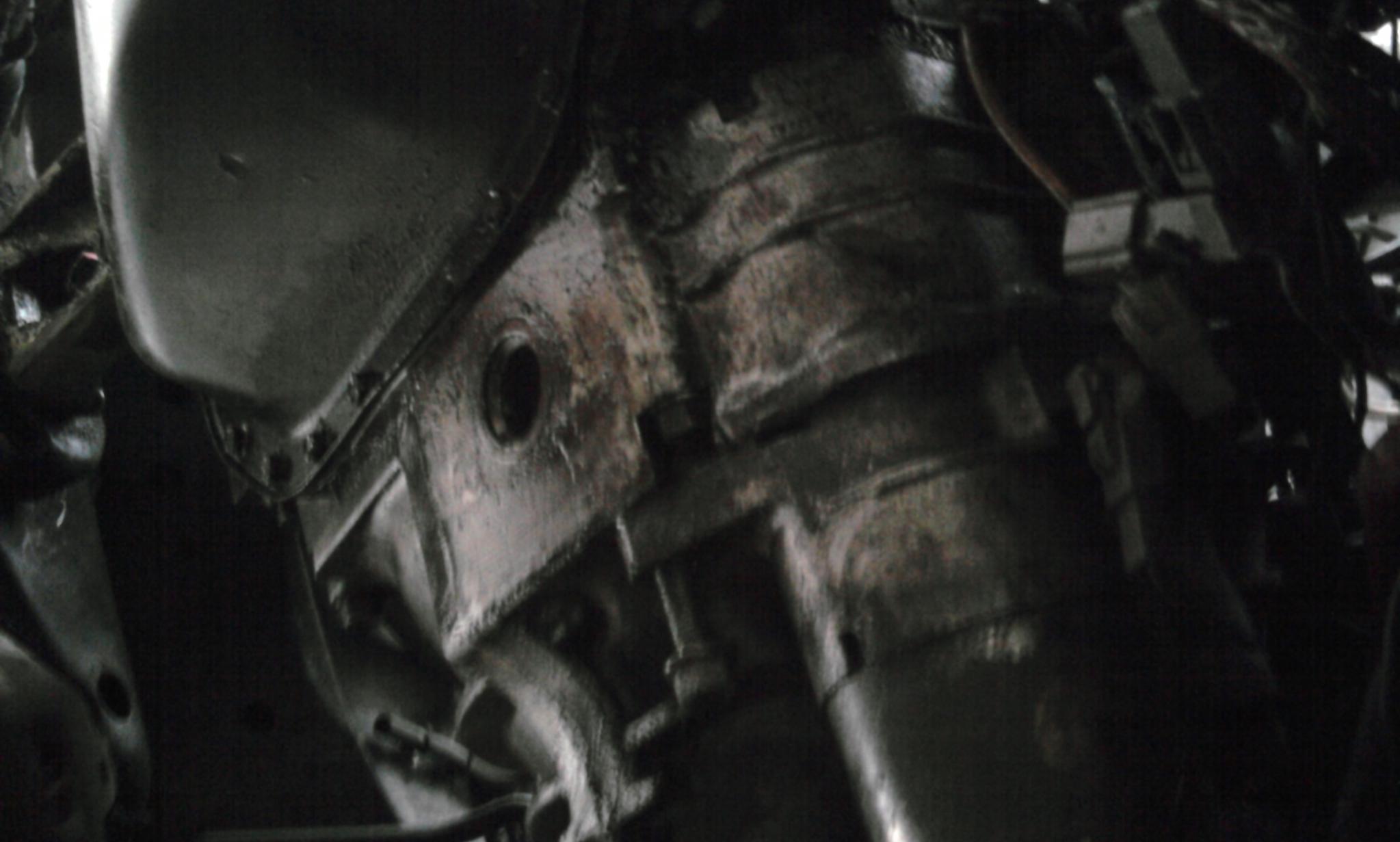

Hole i found in the tranny, don't know if that should be covered or not, but i'm guessing that a source of the unknown liquid [mainly oil it seems] is coming from but i have no clue. and i found that my starter was never fully tightened back on, hence bad starting sometimes.

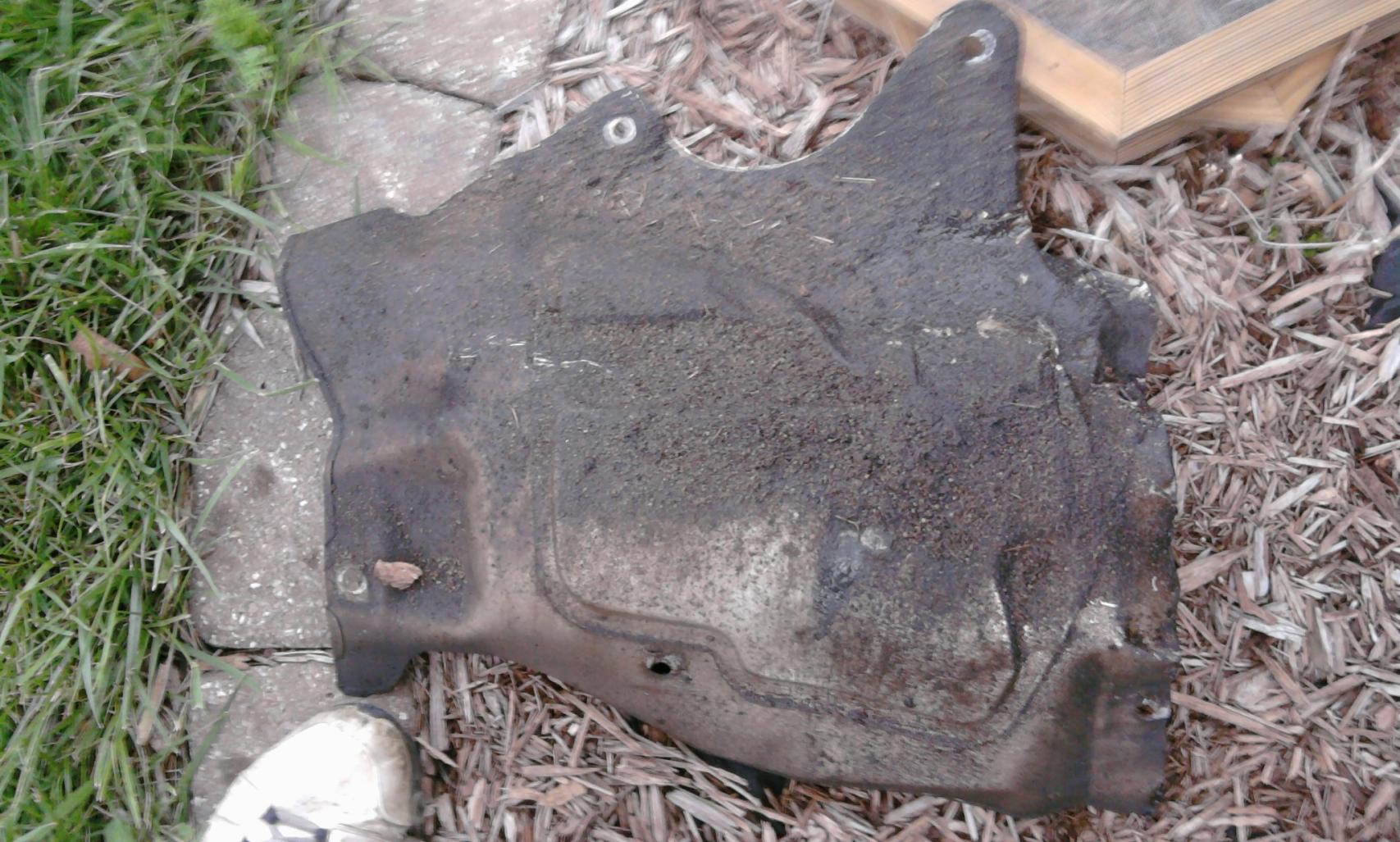

Heatguard, but only part of it.


Taking out the tranny now
yay.. /sarcasam

solareon

iTrader: (1)

that hole in the transmission is to drain liquid out of the bell housing. If there is oil coming out of there then you have either a bad rear main seal on the engine or a bad front oil seal on the transmission.

awddrift4

well, on closer inspection of my exhaust, i just found out its Racing Beat... now i just need a better muffler =D
but that will happen a long time from now

but for today, i can't find a tall enough jack to lower the tranny, so i'm done for today.

throw in any suggestions for what i should do or take pictures/video of

awddrift4

well no progress today cause i still can't get ahold of a jack

awddrift4

i got a nice jack now, and progress will start soon =]

and if anyone reads this who's located in the midwest, i will probably need a new transmission, so if you have one lying around or know where to get one, do tell

awddrift4

Well i finally have the transmission out of my car. [Had no time whatsoever the past few days]
Anyone know who makes a clutch that has a Purple Surrounding? And i found out my oil pan leaks at the top, and has a bolt broken off it. Pics will be up tomorrow

CompuBob

as far as I know a company called Zoom makes clutch kits with purple pressure plates, not sure how good they are.
http://store.summitracing.com/egnsea...5&autoview=sku
