Miror trim electrical short
Well the buss fuse in the miror part is blown. Now if I jumper this the fuse in the kick panel pops immediatly. I am trying to fix my sun roof :-/ I do know this used to work a few weeks ago the lights that is.
Now does anyone know of some comon short prone areas to look at? Or will this be a week of chasing a cat?
Now does anyone know of some comon short prone areas to look at? Or will this be a week of chasing a cat?
#3
Passing life by
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
![Cool](https://www.rx7club.com/images/icons/icon6.gif)
After a bunch of tests 7 fuses and a multi meter hehe.
This is the only wire coming into the bundle that carys 12v+
Now with that astablished. We look at the sunroof assembly switches
None of these wires cary a positive right now. Should they?
Well perhaps b/c the fuse is gone and if we jump it the dash fuse will blow.
Now that this is seen, would you agree that the swith is bad?
If I jumper these wires
together the fuse in dash blows. I did this to test and find out how the sun roof buttons get power. There is only a 2 into 1 spade connector that comes out of the switches. This goes back into the harness and not the sun roof switches.
So concluding does this mean the light switch is bad? Or sun roof switch relay or something ells? If the light switch is bad it would have to be a ground b/c I can jumper the hot wire from the hot side of the buss fuse to the light prong and the light will come on. The switch will allso turn the lights on and off now.

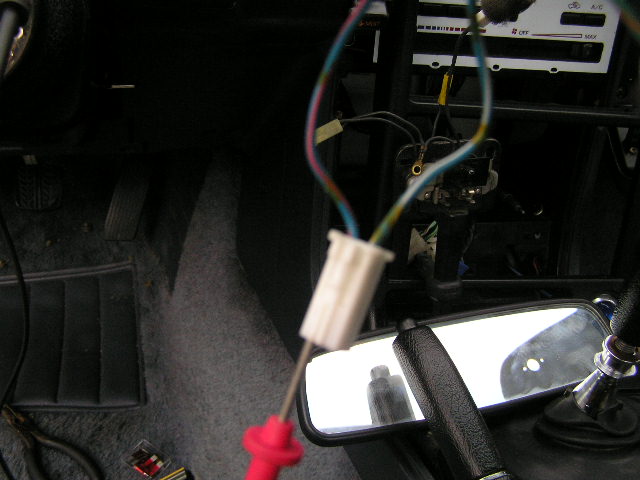

This is the only wire coming into the bundle that carys 12v+
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/124958-miror-trim-electrical-short-p3200238.jpg)

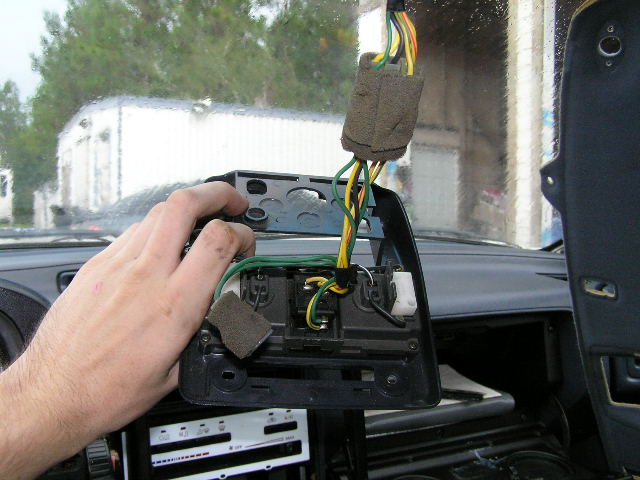

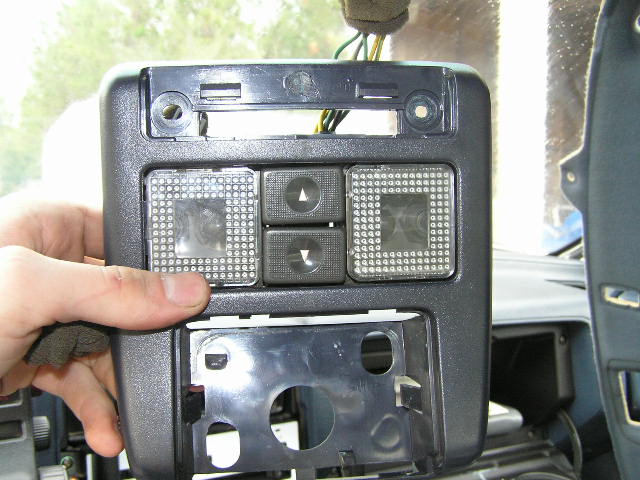

Now with that astablished. We look at the sunroof assembly switches
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/124956-miror-trim-electrical-short-p3200241.jpg)
Well perhaps b/c the fuse is gone and if we jump it the dash fuse will blow.
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/124955-miror-trim-electrical-short-p3200240.jpg)
Now that this is seen, would you agree that the swith is bad?
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/124954-miror-trim-electrical-short-p3200239.jpg)

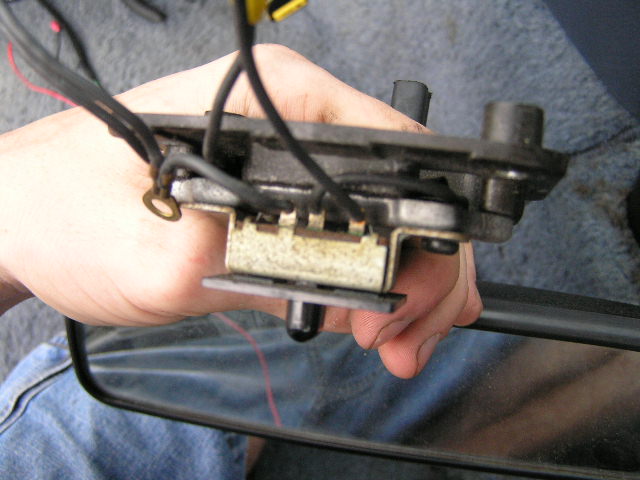

If I jumper these wires
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/124958-miror-trim-electrical-short-p3200238.jpg)
So concluding does this mean the light switch is bad? Or sun roof switch relay or something ells? If the light switch is bad it would have to be a ground b/c I can jumper the hot wire from the hot side of the buss fuse to the light prong and the light will come on. The switch will allso turn the lights on and off now.
Last edited by iceblue; 08-04-05 at 11:43 AM.
#5
Passing life by
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
I thought I remember that being a light in there when it was there... Then wtf I have no little lights and buttons do no turn sunroof motor anymore.
Trending Topics
#8
Passing life by
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
I have tested it with and without the key to ON. All this was working last time I checked a feew weeks ago. I have replaced my faulti ignition switch and redid the push button starter I wire mine into my ignition wires. Now I moved onto the sun roof that never opend just motor grinded away. It seems I had nothing up there working. I checked fuse and it was blown. I replaced it and nothing worked still.
#13
Passing life by
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
The lights work fine now. The sun roof switch however does not. I checked them with a meter. Key ON and OFF. All wires that go to the buttons are grounding. Does the sun roof work by grounding off the connection? Where should I look now.
#16
Former Moderator. RIP Icemark.
Originally Posted by iceblue

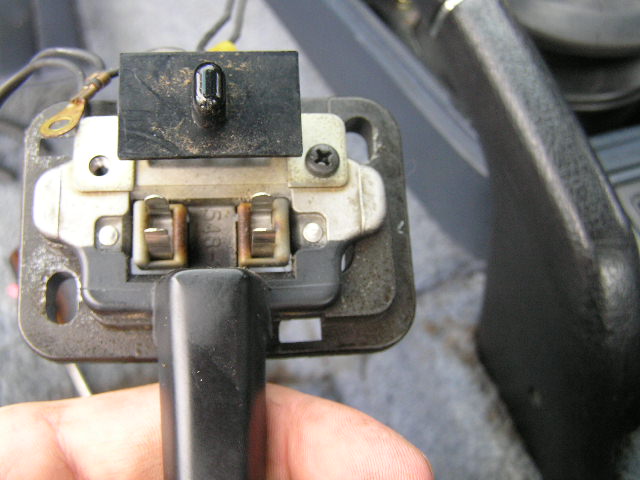

If you look at the wire in this pic with the eye loop. You can see I unbloted it from that metal bracket. This wire is hot.![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/124955-miror-trim-electrical-short-p3200240.jpg)
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/124955-miror-trim-electrical-short-p3200240.jpg)
#17
Passing life by
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Thx I am on dile up so the FSM takes me forever. Ok I pulled the sun roof out of the car and evrything. So I will be able to test the harness for the motor with test leads. Figure out why it wont open.
#18
Let us know what you find out when you test everyting...Also try to clean the switch contacts...you could if the motor work move down the line and try each thing out...try to jump the relays and see if they switch the motor on...if so then I would say the switch contacts might be bad...the green/orange wire is the hot...if it have power then try running it to the motor bypassing the switch...let us know how that comes out!
